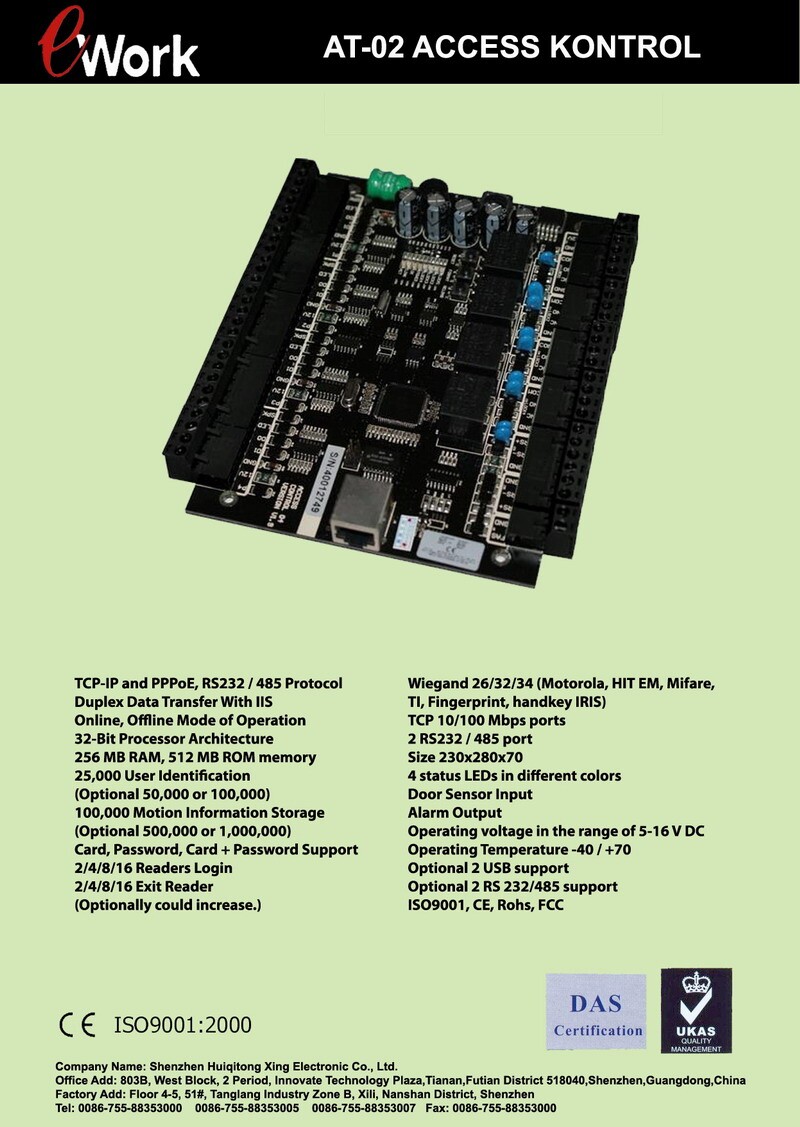

AT-02 ACCESS CONTROL

Products Mode: AT-02
AT-02-ACCESS-CONTROL

AT-02-ACCESS-CONTROL

Description:

TCP-IP and PPPoE ,RS232 / 485 Protocol

Duplex Data Transfer With IIS

Online, Offline Mode of Operation

32-Bit Processor Mode of Operation

256 MB RAM , 512 MB ROM memory

25000 User Identification

( Optional 50000 or 100000)

100,000 Motion Information Storage

( Optional 500,000 or 1000,000)

Card , Password , Card + Password Support

2/4/8/16  Readers  Login

2/4/8/16  Exit Reader

(Optionally could increase)





Wiegand 26/32/34 (Motorola , HITEM , Mifare , TI , Fingerprint handkey IRIS )

TCP 10/100 Mbps ports

2 RS232 /485 port

Size 230*280*70

4 status LEDs in different colors

Door Sensor Input

Alarm Output

Operating voltage in the range of 5-16V DC

Operating Temperature -40/+70

Optional 2 USB Support

Optional 2 RS 232/485 support

ISO9001 , CE , Rohs ,FCC
