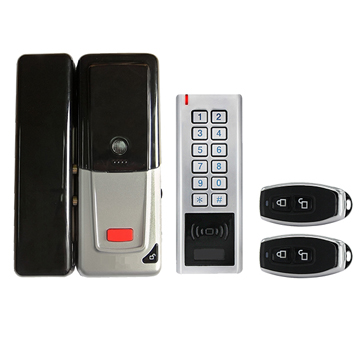

FV-D4 is a wireless smart lock kit for glass door use, it includes wireless keypad (metal, waterproof) + Wireless Lock + two Remote Transmitters.
433MHz Rolling Code of encryption algorithm and the split design guarantee higher-secure.
> Metal design & Waterproof Keypad, can install outside
> 433MHz Rolling Code technology
> 500PIN/card users
> 4~8 digits PIN, 125KHz EM card
> Communication distance: 50m Max
> Open/Close by Keypad, transmitter, or touch the lock
> Suitable for glass Door
Product Parameter | Parameter Description |
Model | FV-D4 |
Product Name | Anti-vandal Wireless Lock Kit |
|
User Capacity | 500 |
PIN Length | 4-8 Digits |
Card Type | 125KHz EM Card |
Operating Voltage |
Wireless Keypad | 3 units of AAA batteries |
Wireless Lock | 4 units of AA batteries |
Remote Transmitter | 1 unit of 2032 Lithium battery |
Idle Current | All items < 10uA |
Working Current |
Wireless Keypad | < 50mA |
Wireless Lock | < 42mA |
Remote Transmitter | < 3mA |
Communication Frequency | 433MHz |
Communication Distance | 50m Maximum |
Operating Temperature |
Wireless Keypad | -40°C~+60°C (-40°F~+140°F) |
Wireless Lock | -20°C~+60°C (-4°F~+140°F) |
Operating Humidity | 0%~86%RH |
Physical |
Wireless Lock | Zinc-Alloy |
Wireless Keypad | Zinc-Alloy (IP66) |
Remote Transmitter | ABS |
Dimensions |
Wireless Keypad | L148 x W56 x D22.5(mm) |
Wireless Lock | L186 x W122 x D26(mm) |
Remote Transmitter | L62 x W30 x D11.5(mm) |
Unit Weight |
Wireless Keypad | 250g |
Wireless Lock | 800g |
Remote Transmitter | 25g/pc |
