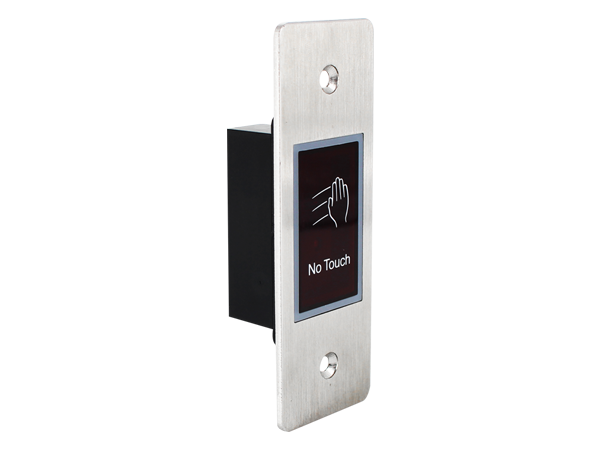

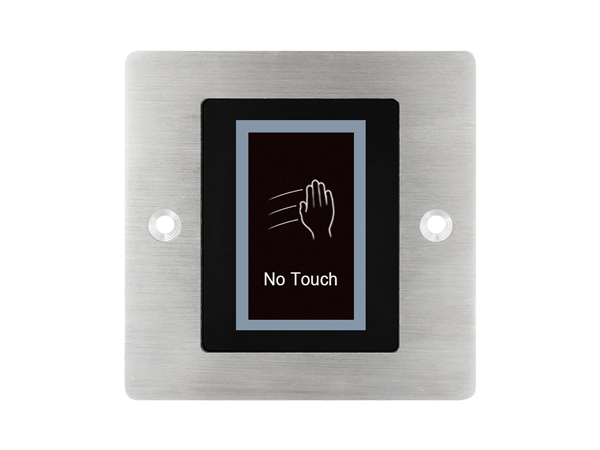

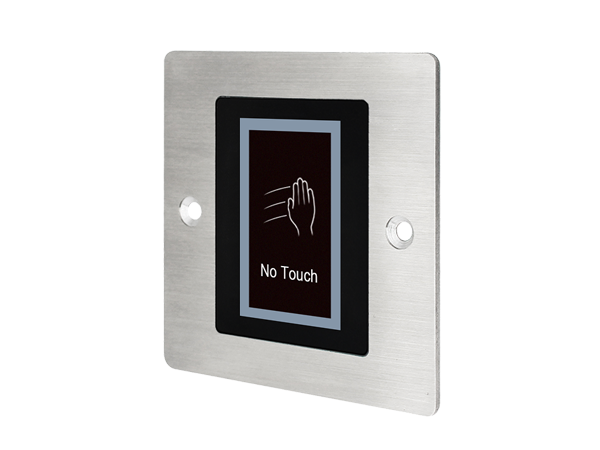

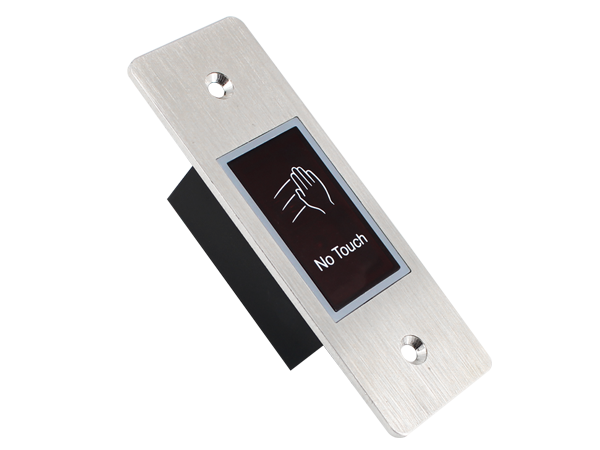

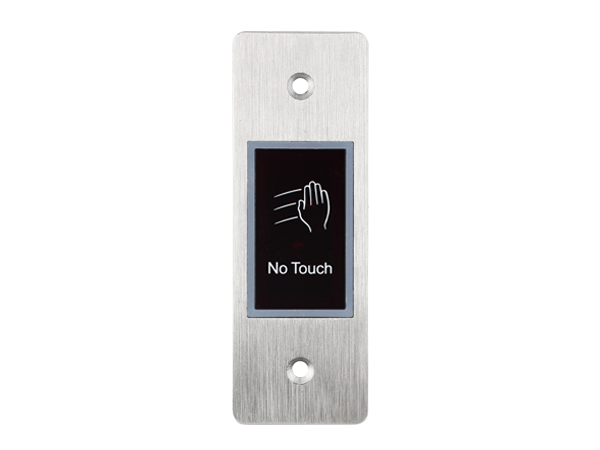

The device is infrared no touch button, with adjustable sensor distance 3~15cm, with timer delay (Optional).
> Stainless steel plate, embedded design
> Output contact: NO/NC/COM
> Sensor distance: 3~15cm (Adjustable)
> Blue LED indicator: standby
> Red LED indicator: active
> Two versions for optional:
Normal version: Not waterproof
Delay version: Waterproof, 5s, 10s timer delay or Toggle Mode
Operating Voltage | 10~24V DC |
Current Rating | 2A |
Sensor Distance | 3~15cm (Adjustable) |
Output | NC or NO |
Infrared Wavelength | 940 nm |
Timer Delay (Optional) | 5s / 10s / Toggle Mode |
Environment | IP66 Waterproof or not (Optional) |
Physical | Stainless Steel |
