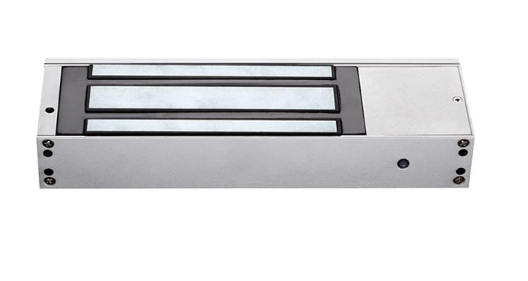

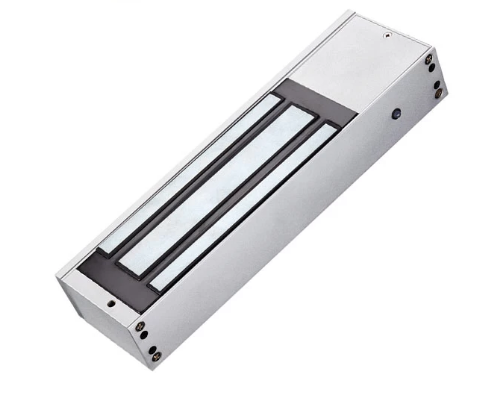

Model: L500B
Lock size: 265Lx72Wx40H (mm)

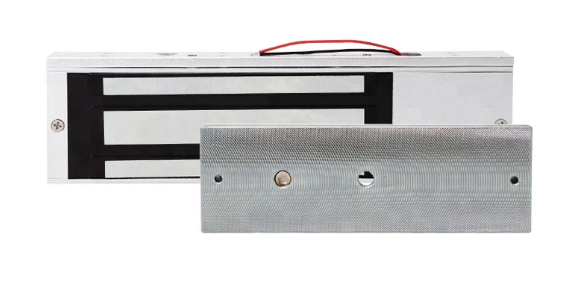

Armature plate: 190Lx190Lx45Wx11H (mm)
Holding Force: 500kg (1200lbs)
Input voltage: 12/24VDC dual voltage
Suitable for door: wooden door, glass door, metal door, fire door
Single output: single status lock NO / NC / COM / / -
Feature: Fail Safe, timer delay, feedback signal, 12V / 24VDC dual voltage
LED: red indicates unlocked, green indicates locked
Weight: 4.5kg
