1. Made of durable and tall material.
2. Tested at 500,000 cycles
3. Three contact outputs, suitable for all types of locks
4. The best choice for access control
exit button for access control Technical specifications:
Product parameter | Parameter description |

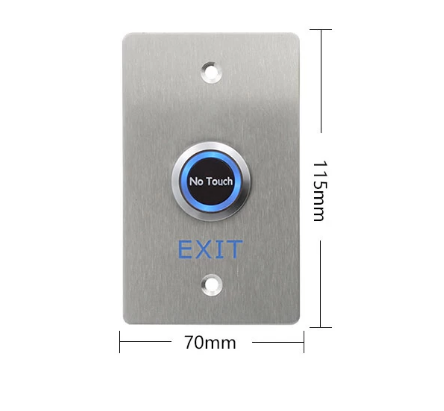

Dimensions | 115Lx70W (mm) |
Contact evaluation | 12-28V, 3A |

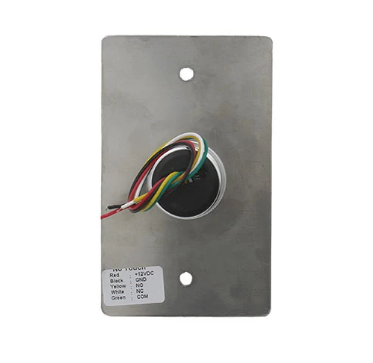

Output contact | NO / NC / COM |
Mechanical life | 500000 tested |
Material | 1.7mm thickness in stainless steel |
Operating Temp | -20 ℃ ~ + 55 ℃ (14-131F) |
Suitable humidity | 0-95% (relative humidity) |
Detection range | 5-15cm (adjustable) |
Weight | 0.15 kg |
- High quality material, fireproof resin shell, safe and durable.
- Works with most electronic access control keypads, intercoms with access control keypads.
- Activate electric strike, magnetic lock or other electric lock via access control keypad.
Flush mount, easy to use and use.
