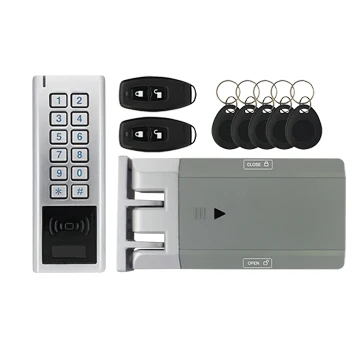

FV-D5 / D5N is a Wireless smart lock kit for home use, it includes Wireless Keypad (metal, waterproof) + Wireless Lock + 2pcs Remote Transmitters + 5pcs RFID Tags
433MHz Rolling Code of encryption algorithm and the split design guarantee higher-secure.
> Metal design & Waterproof Keypad, can install outside
> 433MHz Rolling Code technology
> Communication distance: 50m Max
> Open/Close by Keypad, transmitter, or touch the lock
Product Parameter | Parameter Descr1ption |
Product Name | Waterproof Wireless DIY Lock Kit |
|
Model | FV-D5 |
User Capacity | 500 PIN/card users |
PIN Length | 4~8 digits PIN |
Card Type | 125KHz EM card |
|
Model | D5N |
User Capacity | 100 PIN/card users |
PIN Length | 4~6 digits PIN, |
Card Type | 125KHz EM or 13.56MHz Mifare card optional |
|
Operating Voltage |
Wireless Keypad | 3 units of AAA batteries |
Wireless Lock | 2 units of AA batteries |
Remote Transmitter | 1 unit of 2032 Lithium battery |
Idle Current | All items < 10uA |
Working Current |
Wireless Keypad | < 50mA |
Wireless Lock | < 60mA |
Remote Transmitter | < 3mA |
Communication Frequency | 433MHz |
Communication Distance | 50m Maximum |
Operating Temperature |
Wireless Keypad | -40°C~+60°C (-40°F~+140°F) |
Wireless Lock | -20°C~+60°C (-4°F~+140°F) |
Operating Humidity | 0%~86%RH |
Physical |
Wireless Lock | Zinc-Alloy |
Wireless Keypad | Zinc-Alloy (IP66) |
Remote Transmitter | ABS |

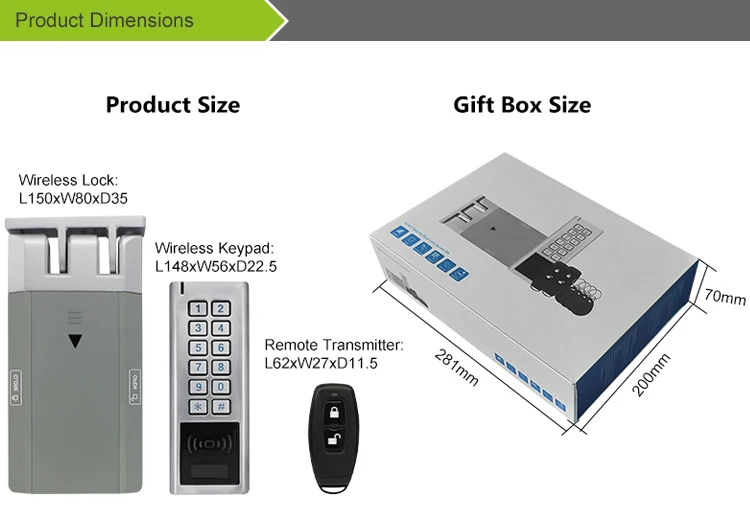

Dimensions |
Wireless Keypad | L148 x W56 x D22.5(mm) |
Wireless Lock | L150 x W83 x D38(mm) |
Remote Transmitter | L62 x W30 x D11.5(mm) |
Unit Weight |
Wireless Keypad | 285g |
Wireless Lock | 800g |
Remote Transmitter | 25g/pc |
