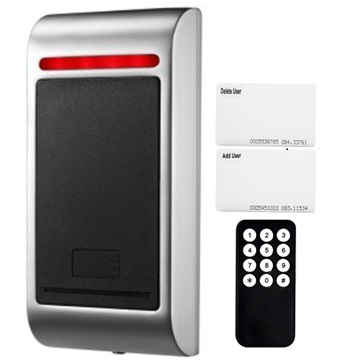

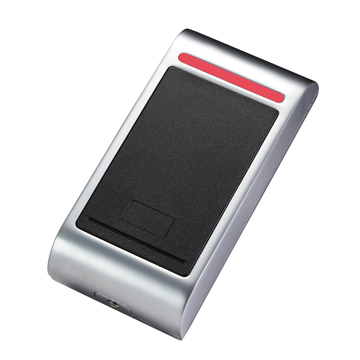

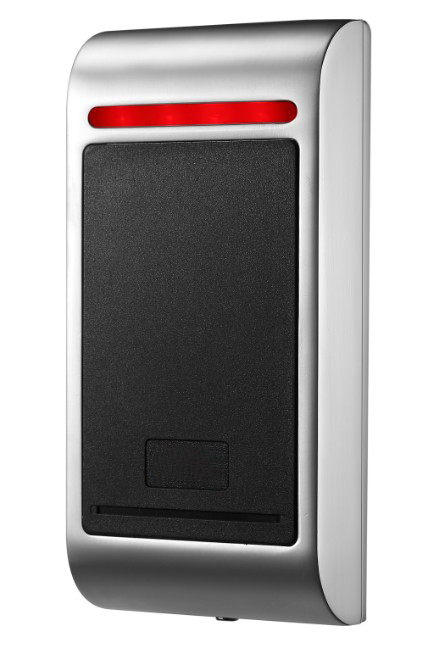

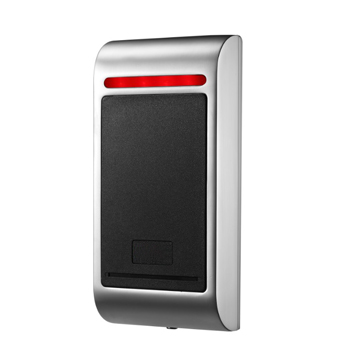

Large Capacity Waterproof Keyless Access Controller
Product Description
Waterproof IP68
Rainproof, moistureproof, durable
Capacity: 10,000 card users
Can be used as WG26 reader
Can connect external EM or HID WG26 output reader
Two units can be interlocked
Can realize Anti-passback function for single or two doors
Can add consecutive user cards
Can set master add card/master delete card
| Card type：EM or HID | Waterproof degree:IP68 |
| Working voltage: DC12V±10% | Static electricity: ≤30mA |
| Read Range:5-200px | Ambient temperature: -45 ℃ ~ 60 ℃ |
| Humidity: 10% to 90% | Electric lock output: ≤3A |
| Alarm output: ≤20A | Short-circuitProtect: ≤100μS |
| Door Opening Time:0-99s(Adjustable) | Dimensions: 115 * 56* 22mm |
