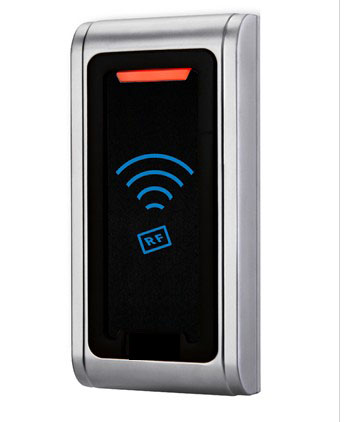

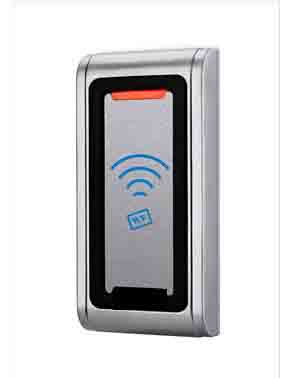

Metal RFID Card Reader

Products Mode: RF006
Metal RFID Card Reader

Metal RFID Card Reader

Products features:
Material: Metal
Operating Voltage: 9-16V DC
Output: WG 26 (RS485, RS232 optional)
Communication Distance: 100M
Idle Current: <80mA
Operating Temperature: -45~60 degree
Operating humidity: 10%- 90% RH
Waterproof degree: IP68

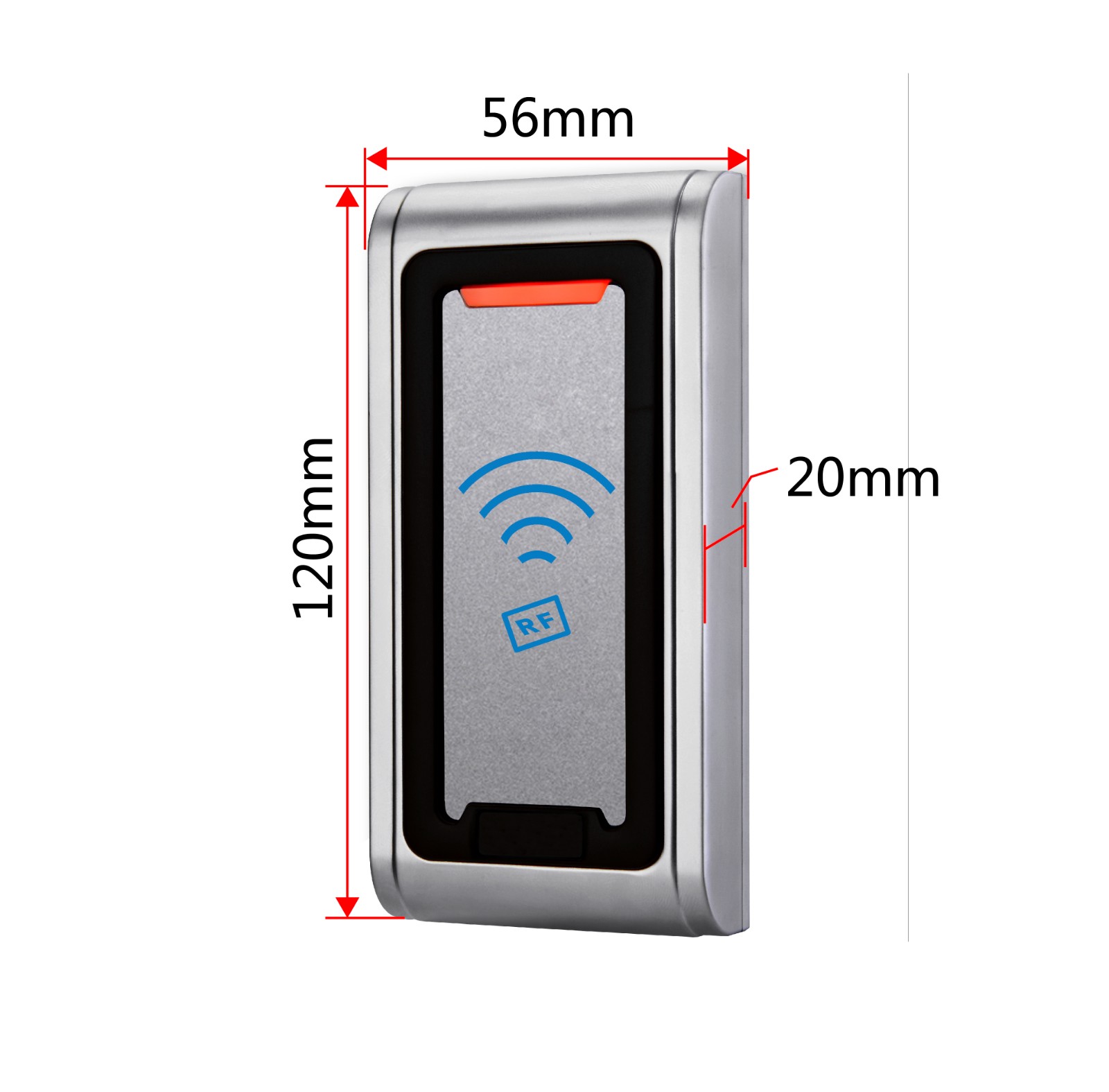

Dimension: 120× 56× 18mm


The unit is a single door multifunction standalone access controller, which is an ideal choice for door access for shops, households, commercial and industrial applications, such as, factories, warehouse, laboratories, banks and prisons.

Model noCard styleFrequencyReading range
006EM125KHz5-6cm
006MMIFARE13.56MHz3-5cm
006CPUCPU13.56MHz2-3cm
