RFID-Access-Reader

Products Mode: 1001
Newest-RFID-Access-Reader Small and Exquisite, fashion New Design Waterproof anti-interference ability, high security and reliability, can provide strong security. Easy to use, can be widely used in homes, offices, residential quarters and other public places.

Access Control RFID Card Reader Low Frequency Proximity reader which is valiable to EM 4100, EM4200,TK4100 and compatible cards, With Wiegand26,34, RS232, RS485, interface optional, easy to use and deploy, fast and convenient to connect with other controlling devices Widely used in applications such as access control system, time attendance, guest registration system and identification authentication field etc.
 Specification

1.Working voltage:9~12VDC.
 Current: average 50mA, peak 100mA

 Frequency: 125KHZ-13.56 MHz

 Communication interface: Wiegand26, Wiegand34,RS232

 Environment: temperature -20ºC~65ºC, humidity 0 ~ 95%

 Reading distance: RFID Card: 1~5cm;

 Connection cable: 8pin shielded twisted pair, max 100 m. 8.Size:86*86*18mm.

 Housing material: ABS

Specification

Material

ABS

Color

Black or white

Frequency

125KHZ /13.56MHZ

Communication

Wiegand26/34

Support Card Type

125KHZ EM ID Card


13.56MHZ MF IC Card

Built-in

Antenna,speaker,buzzer,red(bule)green color LED

Current

<80mA

Voltage

DC 9-16V

Humidity

10%-90% Ambient Humidity

Temperature

-40° C to 70° C Ambient Temperature

Reading Range

ID:3-10cm


IC:0-5cm

Warranty

1Year

Waterproof

IP65-68

Customization

YES

Communication Distance

The weigand not exceed 100meters

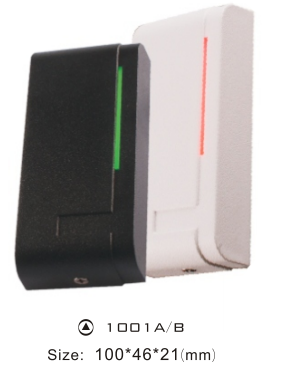

Size:

100x46x20mm



Installation

Using "+"type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection
Red DC 5V-16V
Black GND
Blue D1
White D0
Brown BEEP
Green LED
Yellow Alarm


Notice!
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires.

EM or Mifare reader manual..png
