single door controller, connecting electric strike or magnetic lock and a power supply. Opening door modes are Card only, Keypad only, and Card with Keypad. Card capacity up to 6000 users. Programmable door release time is from 1~99 seconds .
Standalone Access Control Reader
Features:
Standalone, single door control.
Low Priced, connect an electric strike and power supply and you're done
No Control Panels - Standalone Access Controller
Easy and simple to use
Has a flat back so it's easy to install on any flat surface

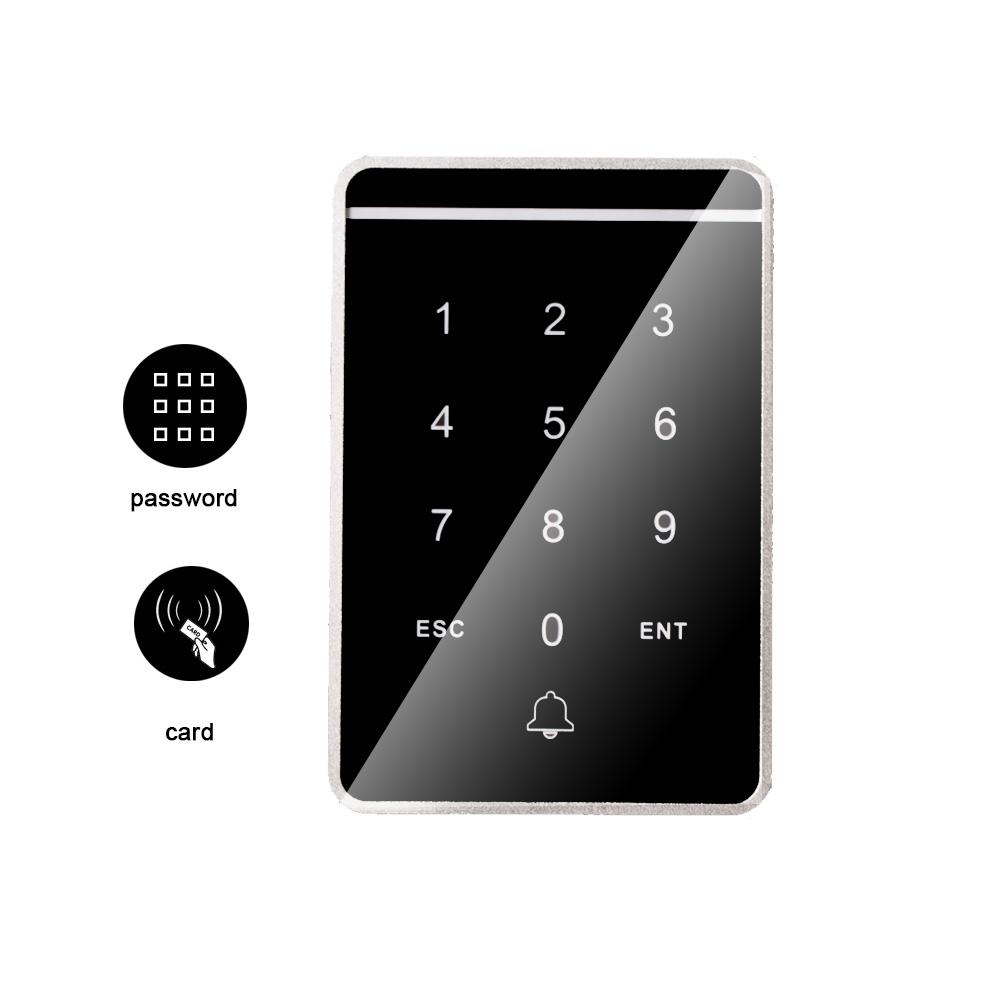

Operating Mode: Card only, Keypad only, Card with Keypad.
Card capacity is 1600 users.
Programmable door release time: 1~250 seconds
Access code can be added or deleted by keypad management.
Built-in electric buzzer for audible card entry and programming.
Data is protected even after power failure.
Machined housing in high durable.
Mifare-IC /EM-ID thin card or keyfob optional
Specifications
Operating Voltage: DC12V
Working Current: Less than 1000mA
Capacity: 1600 PCS cards and PIN
M/ID Card format /125KHz (Mifare /IC Card /13.56MHz is option)
Door Opening Signal Output by Relay Directly(NO/NC Optional)
Size: 86*86*18(mm
Muti-fuction device,Support external wg26 card reader.
| Faceplate: | Plastic or Stainless Steel |
| Color: | Black or white |
| Card type: | EM or Mifare |
| With card control: | add/delete card |
| Reading Distance: | 3-10cm |
