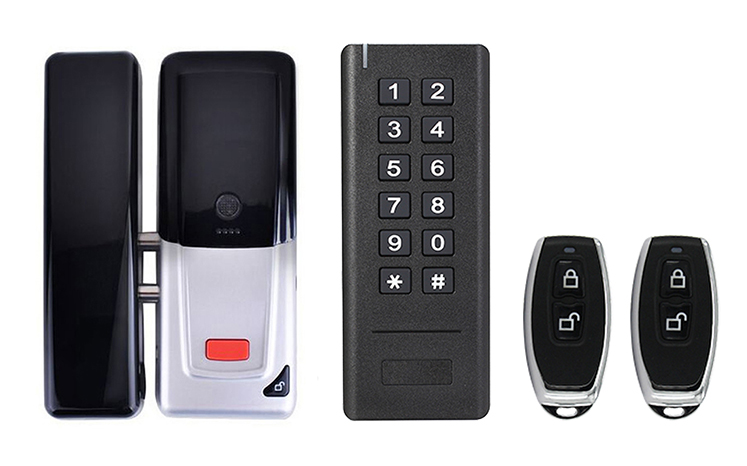

The FV-D2 is a wireless smart lock kit for glass door use, it includes wireless keypad + Wireless Lock + two Remote Transmitters.
433MHz Rolling Code of encryption algorithm and the split design guarantee higher-secure.
1: Support 500 PIN/card users/4-8 digits PIN, 125 KHz EM Card
2: With two Standard Remote Transmitters
3: 433MHz Rolling Code technology
4: Communication distance: 50m Max
5: Ultra low power consumption
User Capacity | 500 |
PIN Length | 4-8 Digits |
Card Type | 125KHz EM Card |
Operating Voltage |
Wireless Keypad | 3 units of AAA batteries |
Wireless Lock | 4 units of AA batteries |
Remote Transmitter | 1 unit of 2032 Lithium battery |
Idle Current | All items < 10uA |
Working Current |
Wireless Keypad | < 50mA |
Wireless Lock | < 42mA |
Remote Transmitter | < 3mA |
Communication Frequency | 433MHz |
Communication Distance | 50m Maximum |
Operating Temperature |
Wireless Keypad | -40°C~+60°C (-40°F~+140°F) |
Wireless Lock | -20°C~+60°C (-4°F~+140°F) |
Operating Humidity | 0%~86%RH |
Physical |
Wireless Lock | Zinc-Alloy + ABS Shell |
Others | ABS Shell |

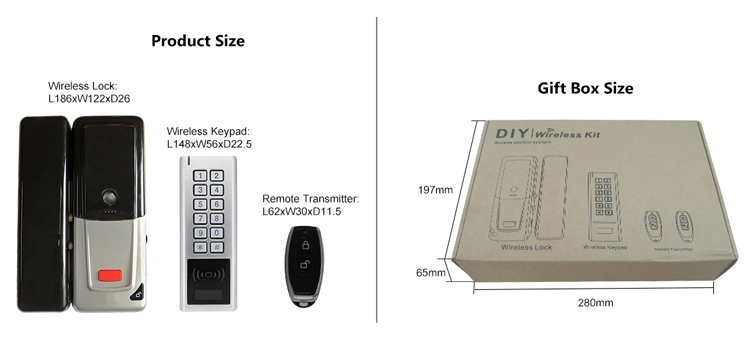

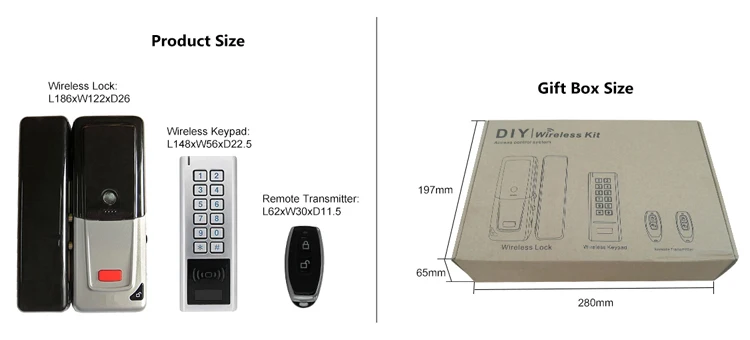

Dimensions |
Wireless Keypad | L135 x W54 x D19(mm) |
Wireless Lock | L186 x W122 x D26(mm) |
Remote Transmitter | L62 x W30 x D11.5(mm) |
Unit Weight |
Wireless Keypad | 90g |
Wireless Lock | 800g |
Remote Transmitter | 25g/pc |
