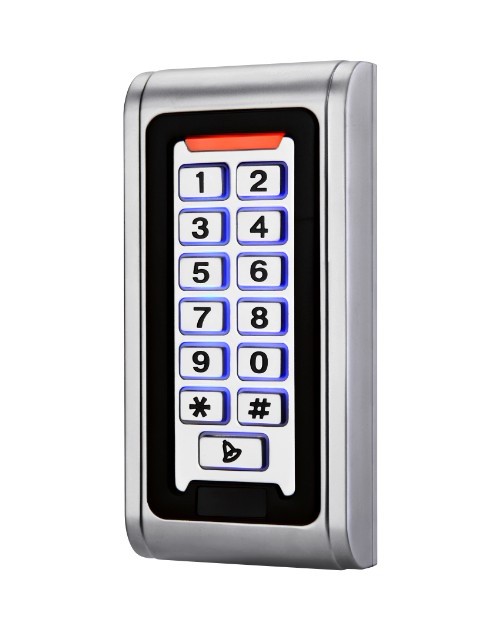

Standalone metal access controller

Products Mode: S600
Standalone metal access controller

Standalone metal access controller

Description:


◆Metal shell, fashion shape design with patent

◆With Anti-theft alarm output for external alarm device

◆Waterproof  degree:IP68

◆With standard Wiegand interface

Feature:
1. Perfect disign, Metal Case with backlight keypad, anti-vandal

2. WG26 output, can be used as a Access reader.

3.Capacity:2000 users

4.Access ways : cards ,code,card &code.

5.Low power :static current less than 30mA.

6.7.Functional keypad: All programming, adding and deleting card/users can be done

  via the keypad

7.Open-door time: 0~99 seconds(adjustable)

8.users can reset private passwords.

9.Search fast less than 0.1s .

10.With standard Wiegand interface, Wg26 for card or Wg34 for codes.

11.use keypad to delete lost cards for safety.

12.Short-circuit protect : when relay or alarm output appear short-circuit, the Output will close automatically within 100μS.

Technical parameters

Work Voltage: DC9-28V

Static Current:≤30mA

Reading Range:3-10 cm

Support Card:EM,Mifare,HID

Capacity: 2000 users

Output short-circuit protection time:≤100μS

Open-door time:0 ~ 99 seconds (adjustable)

Size:120 *56*18mm

Noted:  1)S100 series has the luninous keypad, all the digits blue illuminated from the back. it is different with S600, backlight only around the keys.

2) S600 series has waterproof design and dis-waterproof.
