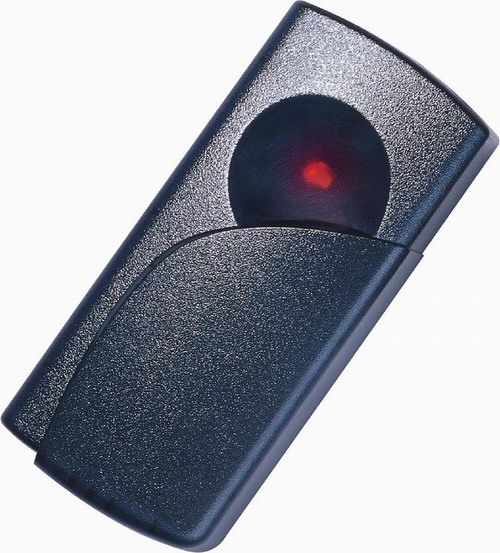

Wiegand Reader RFID proximity card reader

Products Mode: 08L
Wiegand Reader RFID proximity card reader

Wiegand Reader  RFID proximity card reader

Specification
*Less than 0.2 second Response Speed
*Less than 0.5 seconds Proximity Time Distance:
*2-15cm Proximity Range
*Support ID(125 KHz) or Mifare1(13.56 MHz Frequency) Card
*-25C to 75C Ambient Temperature, 10%-90% Ambient Humidity
*Built-in Antenna
*Built-in LED (Double Color LED)
*Built-in Loud Speaker (Buzzer)
*DC 12V Working Voltage, 70mA Working Current
*100 Meters Communication Distance
*Real Time Data Transfer
*Black Color
*PVC Case Material (Black Resin for Water-Proof Function)
*118*52*26(mm)

Installation

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection


Red        DC 5V-16V

Black       GND

Blue         D1

White        D0

Brown        BEEP

Green        LED

Yellow       Alarm


Notice
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND

3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires
