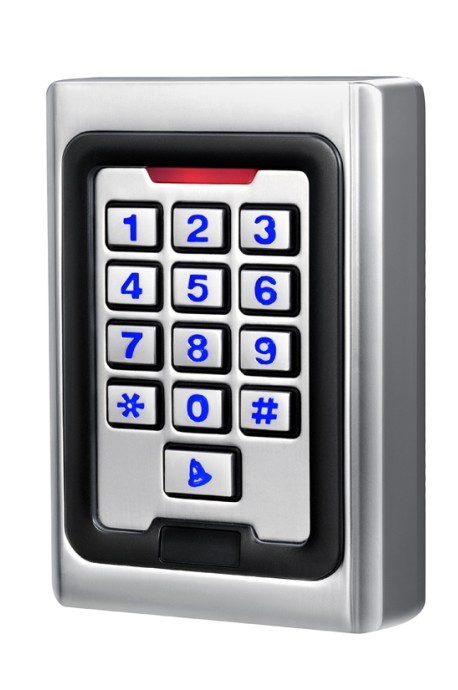

Waterproof metal standalone keypad access control

Products Mode: K5
The unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish. The electronics are fully potted so the unit is waterproof and conforms to IP68. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards,13.56MHz Mifare cards. The unit has many extra features including lock output current short circuit protection, Wiegand output , and a backlit keypad.

Waterproof, conforms to IP65/IP68

Strong Zinc Alloy Electroplated anti-vandal case

 Full programming from the keypad

2000 users, supports Card, PIN, Card + PIN

 Can be used as a stand alone keypad

 Backlight keys

Wiegand 26 input for connection to external readerWiegand 26 output for connection to a controller  Adjustable Door Output time, Alarm time, Door Open time

 Very low power consumption (30mA)

 Fast operating speed, <20ms with 2000 users

Lock output current short circuit protection

 Easy to install and programme

 Built in buzzer

Red, Yellow and Green LEDS display the working status
