Embedded Touch Keypad Access Control card reader China Factory

Embedded Touch Keypad Access Control card reader

Products Mode: E-3

Material: Aluminum,ABS,MDF

Size: Custom Size

Colors: Black, Silver, Customized

Corner: Metal corner / Plastic corner

Handle: Metal Handle / Plastic Handle

Lining: EVA / Fabric /Nylon/ Velvet

Description

Term: FOB CIF

Port: Ningbo, Shanghai

Min. Order: 50 Pieces

Delivery: 30 days after confirmation

Supply Ability: 50000 Piece/Pieces per Month

Payment: 30% Deposit by T/T and the balance before shipment or against the copy B/L

Shipping: EMS, FedEx, DHL, UPS, By Air & By Sea

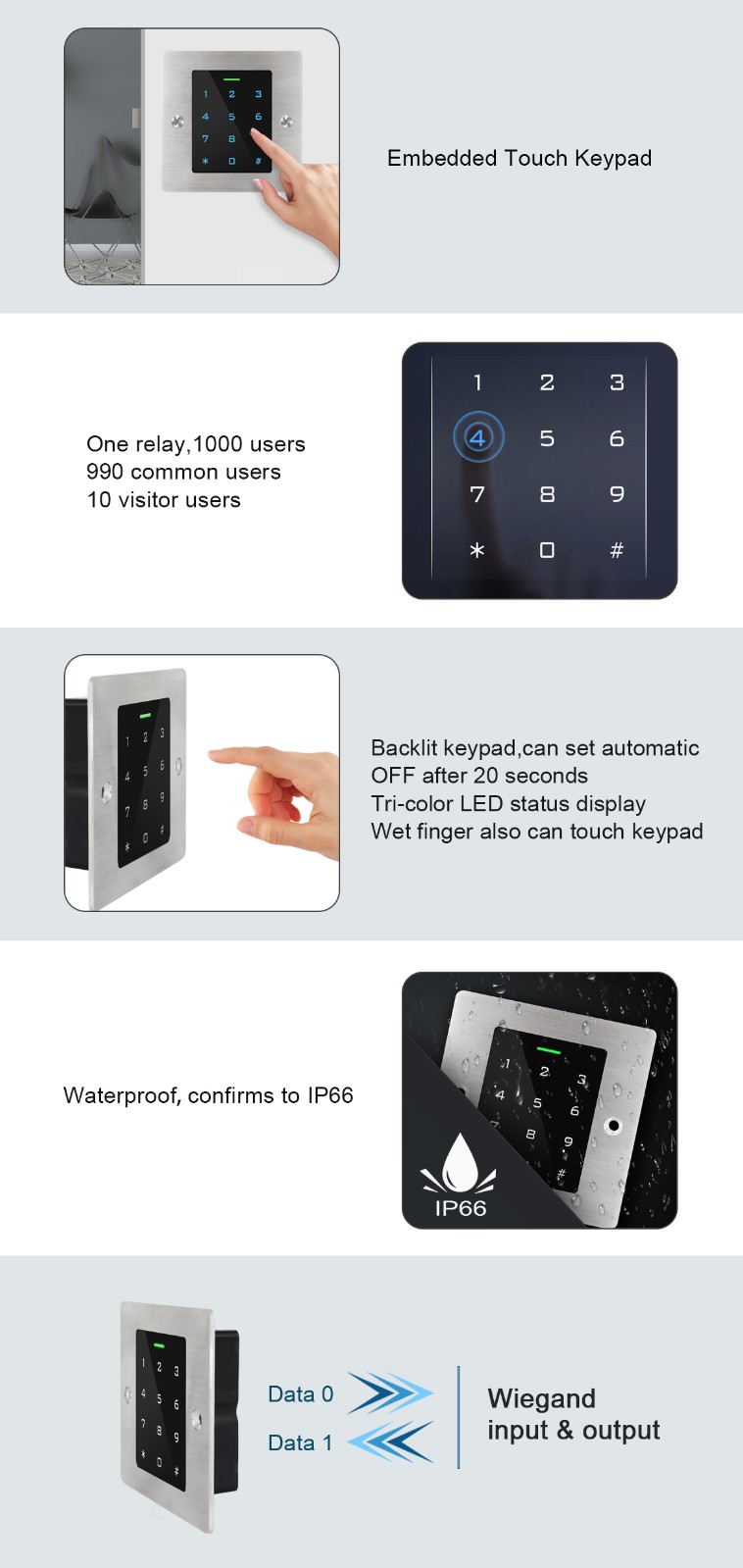

The device is a metal case standalone touch keypad with embedded design, the wiegand input&output make it also could be a controller or wiegand reader.

Metal case, embedded design

One relay,1000 users (990 common users+10 visitor users)

Touch keypad，PIN length:4~6 digits

Card Type:125KHz EM Card

Tri-color LED display

Backlit keypad,can set automatic OFF after 20 seconds

Wiegand 26 bits output

Wiegand 26/34 bits input automatic identification

User Capacity Normal Users Visitor Users	1000 Cards/PINS 990 10
Operating Voltage Idle Current Active Current	12~18V DC <50mA <120mA
Keypad	Touch Keypad (12 Keys)
Proximity Card Reader Radio Technology Read Range	EM 125KHz EM Card 2-6 cm
Wiring Connections	Relay Output, Exit Button, wiegand(in&out)
Relay Adjustable Relay Output Time Lock Output Load	One (NO, NC, Common) 0-99 Seconds (5 seconds default) 2 Amp Maximum
Environment Operating Temperature Operating Humidity	Outdoor (IP66) -40^°C~ 60^°C (-40^°F ~ 140^°F) 10%RH-90%RH
Physical Color Dimensions Unit Weight Shipping Weight	Stainless Steel Plate Silver & Black 86x86x22mm 205g 230g
