Embedded design metal case standalone keypad access control controller or wiegand reader. China Factory

Embedded design metal case standalone keypad access control controller or wiegand reader.

Products Mode: EK-2

Material: Aluminum,ABS,MDF

Size: Custom Size

Colors: Black, Silver, Customized

Corner: Metal corner / Plastic corner

Handle: Metal Handle / Plastic Handle

Lining: EVA / Fabric /Nylon/ Velvet

Description

Term: FOB CIF

Port: Shenzhen

Min. Order: 50 Pieces

Delivery: 30 days after confirmation

Supply Ability: 50000 Piece/Pieces per Month

Payment: 30% Deposit by T/T and the balance before shipment or against the copy B/L

Shipping: EMS, FedEx, DHL, UPS, By Air & By Sea

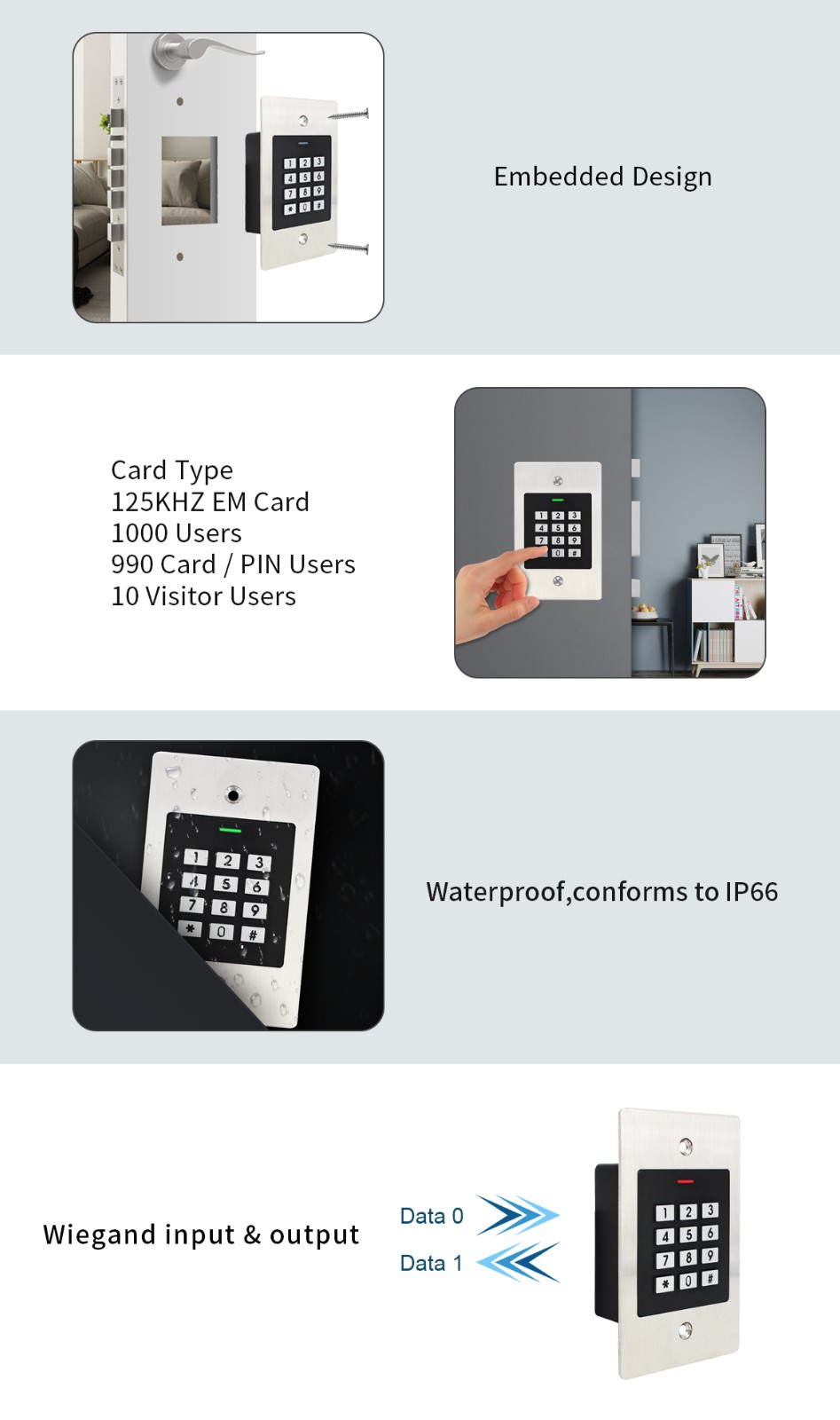

The device is a metal case standalone keypad access control with embedded design, the wiegand input&output make it also could be a controller or wiegand reader.

*Metal case, embedded design

*Waterproof, IP66

*One relay, 1000 users (990 Normal Users + 10 Visitor Users)

*3 access modes: Card, PIN, Card + PIN

*Card type: 125KHz EM card

*PIN length: 4~6 digits

*Anti-tamper alarm

*Wiegand 26 bits output

*Wiegand 26/34 bits input automatic identification

User Capacity Normal Users Visitor Users	1000 Cards/PINS 990 10
Operating Voltage Idle Current Active Current	12~18V DC 30mA 120mA
Keypad	12 Keys
Proximity Card Reader Radio Technology Read Range	EM 125KHz EM Card 0-6 cm
Wiring Connections	Relay Output, Exit Button, wiegand(in&out)
Relay Adjustable Relay Output Time Lock Output Load	One (NO, NC, Common) 0-99 Seconds (5 seconds default) 2 Amp Maximum
Environment Operating Temperature Operating Humidity	Outdoor (IP66) -40^°C~ 60^°C (-40^°F ~ 140^°F) 10%RH-90%RH
Physical Color Dimensions Unit Weight Shipping Weight	Stainless Steel Plate Silver & Black 115x70x25mm 245g 285g
