Short range 125 KHz and 13.56 MHz RFID reader

Products Mode: 102-(E.M)
Access Control RFID Card Reader,or called 125khz Proximity reader,mifare card reader.

Short range 125 KHz and 13.56 MHz RFID reader

Access Control RFID Card Reader Low Frequency Proximity reader which is avaliable to EM 4100, EM4200,TK4100 and mifare cards, With Wiegand26,34, RS232, RS485, interface optional, easy to use and deploy, fast and convenient to connect with other controlling devices Widely used in applications such as access control system, time attendance, guest registration system and identification authentication field etc.


 Specification

*Working voltage:9~12VDC.
 *Current: average 50mA, peak 100mA

 *Frequency: 125KHZ and 13.56 MHz

 *Communication interface: Wiegand26, Wiegand34

 *Environment: temperature -20ºC~65ºC

 *Humidity 0 ~ 95%

 *Reading distance: RFID Card: 3~8cm;

 *Connection cable: 8pin shielded twisted pair, max 100 m.

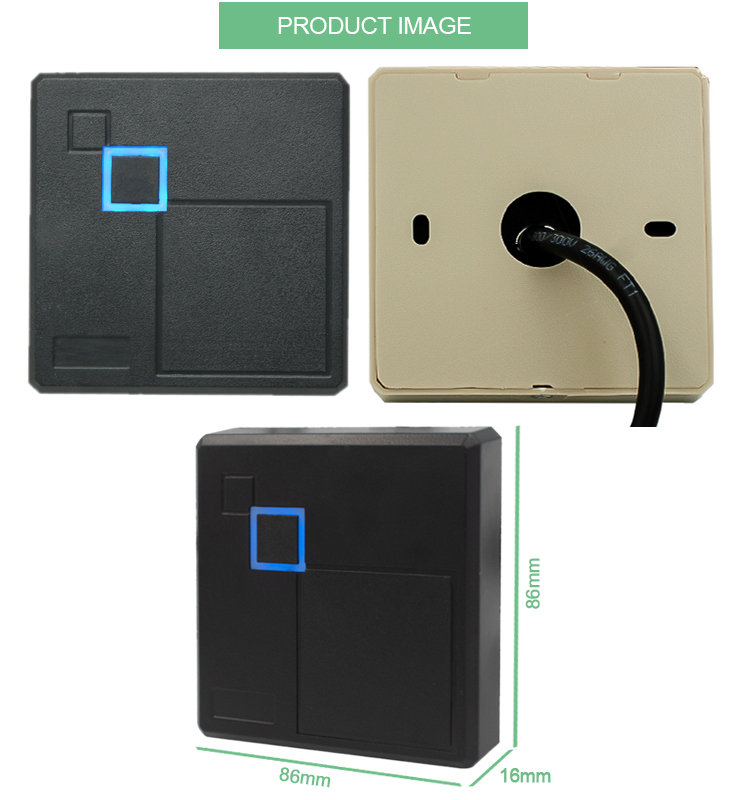

 *Size:86*86*18mm.

*Housing material: ABS



ModelCard Reader Access Control
ColorBlack / White
VoltageDC9~16V
Current≤100mA
Ambient Temperature-25°C~75°C
Reading Range5~15CM
Output FormatWiegand,RS485/232
Card TypeEM-ID/Mifare-IC
Comunication DistanceWG≤100M,RS485≤1200M



Installation

Using "+"type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection
Red DC 5V-16V
Black GND
Blue D1
White D0
Brown BEEP
Green LED
Yellow Alarm


Notice!
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires.
