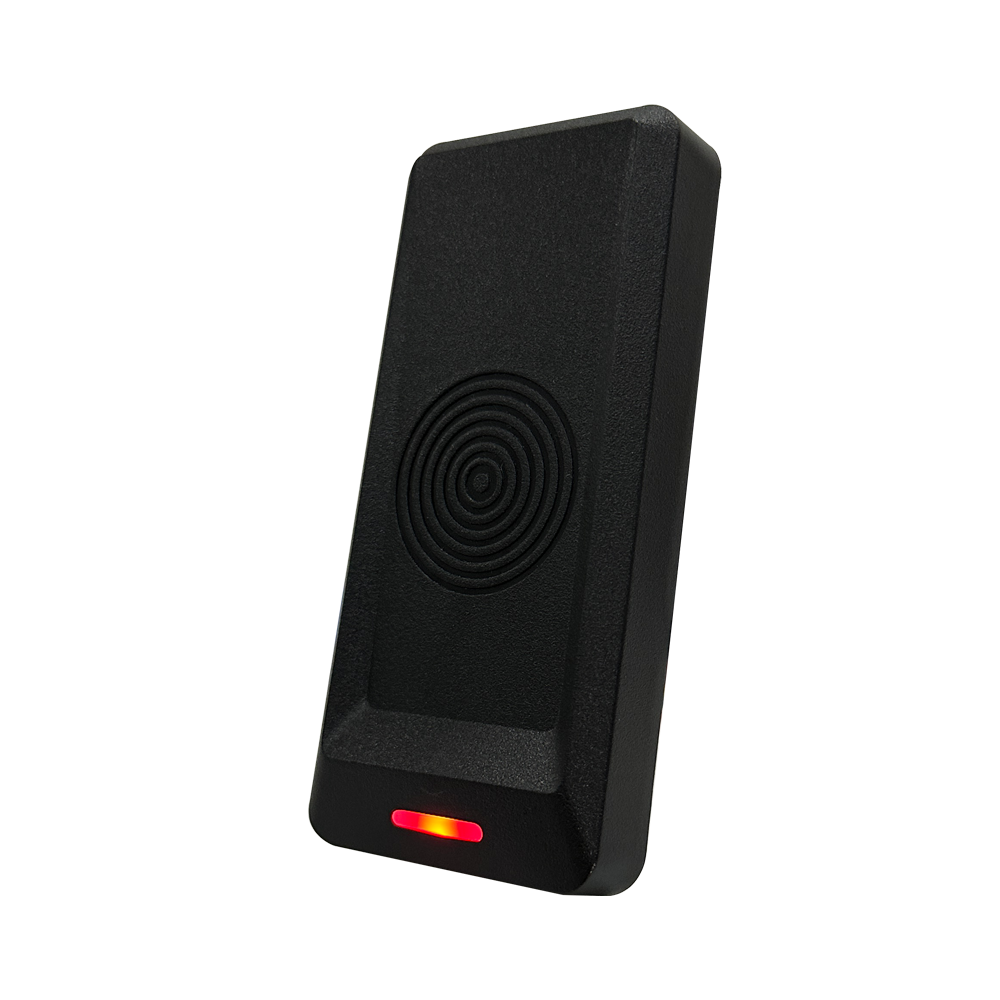

Waterproof Em/Mifare RFID Card Reader
Specification
Wiegand 26bits/ Wiegand34bits /ABA Standard Format Data Output
Less than 0.2 second Response Speed
Less than 0.5 seconds Proximity Time Distance:
2-15cm Proximity Range
Support UEM 4100 ID Card or compatible with it( 64bits, Manchester Code) or Mifare 1 Card (13.56 MHz Frequency)
-25º Cto 75º C Ambient Temperature, 10%-90% Ambient Humidity
Built-in Antenna
Built-in LED (Double Color LED)
Built-in Loud Speaker (Buzzer)
DC 12V Working Voltage, 70mA Working Current
100 Meters Communication Distance
Real Time Data Transfer
Black Color
PVC Case Material (Black Resin for Water-Proof Function)
Size:120*56*21mm
Installation
Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.
Wire Connection
Red DC 5V-16V
Black GND
Blue D1
White D0
Brown BEEP
Green LED
Yellow Alarm
Notice
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires
