Model number: AC6061，AC6062
Description:

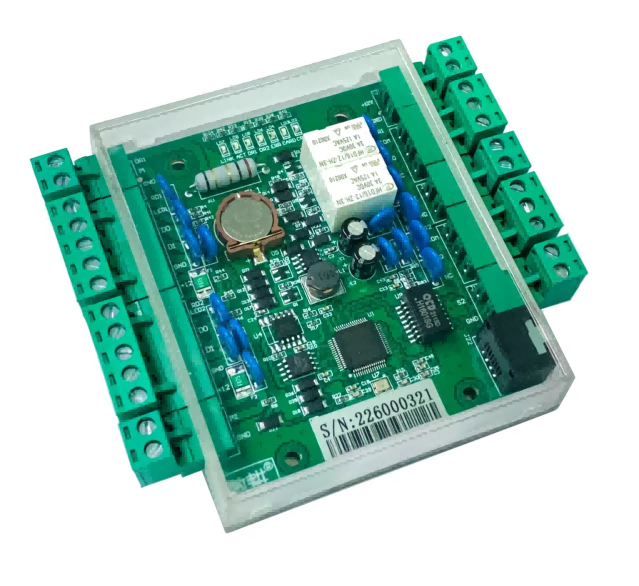

* High-speed computing circuit design access control panel
*fast operation speed, Even with the full storage, After swiping the card,can also instantly open the door,without any sensory delay
*TCP / IP high-speed communication
*Using a large number of anti-error connection design
*Severe environment for aging testing, Long-term uninterrupted test operation
*Multi-language Windows access control software
* independent intellectual property rights and
*Provide SDK
Parameters
*Access Control mode: two doors, cards, password, fingerprint, face,QR code,exit button,etc.
*Door number: 1 or 2
*Card reader: 1 or 2
*Input format: wiegand26-40bit,
*Storage registration card (user card): 60000
*offline storage record number: 160000
*communication mode: TCP / IP
*networking device: No limit
*Software database: Access and SQL
*Controller size: 11cm * 9cm* 2cm
*Power: DC12V3A
*Power Input: AC110V-12V or AC220V-12V
*Operating temperature: -35 to 65 ° C
*Operating humidity: less than 95% RH, No condensing
*packaging: control board, qualification certificate, carton, protective case
Software Function:
Access control Authority setting,
real-time monitoring of card swiping data,photo display, large screen display, custom report form, offline operation, automatic login, multi-user management, record query, etc.
Extension function:
255 time zone access control, double door interlocking (AB door interlocking), card + password open the door,
super password open, remote open, the first card opening, fix time open door and close,limit time and member management,
personnel management, operator authority management, sub regional and sub department management, electronic map, person number query, inside and outside check to open.
Auxiliary functions:
Time attendance management, online tour, fixed consumption, conference check-in, cloud platform, secondary development, etc.
