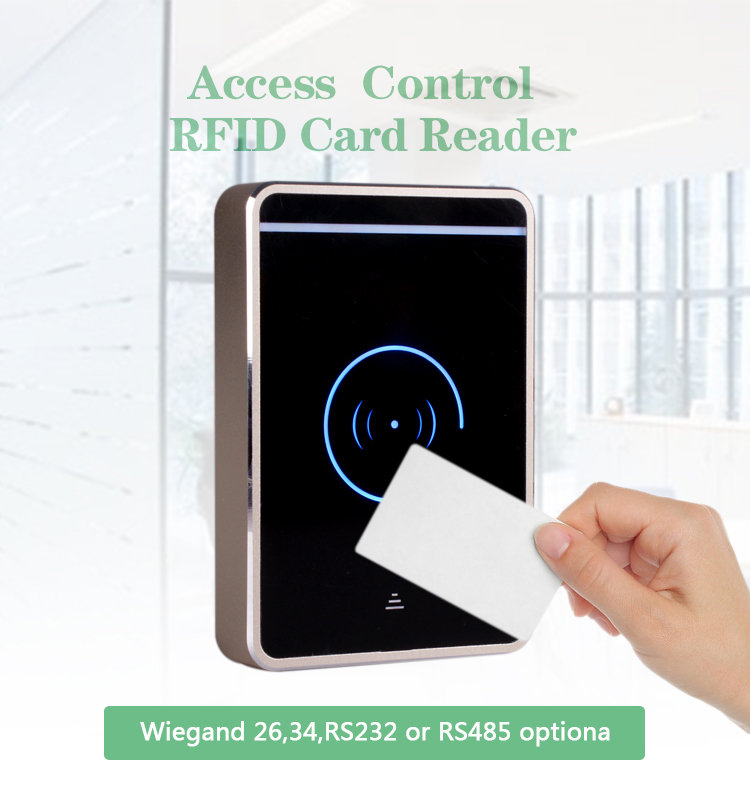

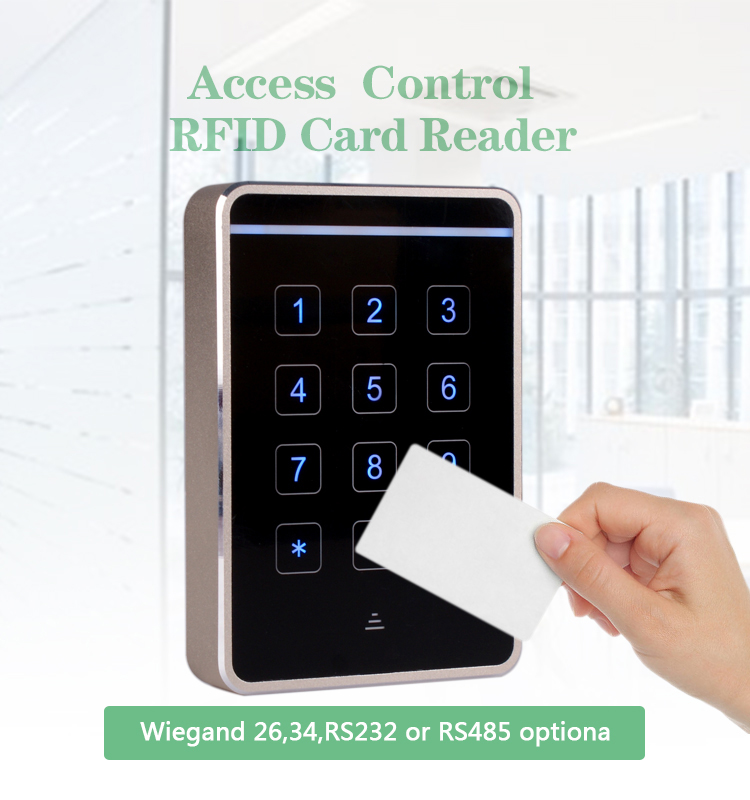

The access control CPU encrypted card reader, through hardware-level encryption and dynamic authentication mechanisms, solves the pain points of traditional access control systems such as easy replication and insecure data transmission. It is a key device for ensuring the physical security of enterprises, financial institutions, government agencies and other places. Its core value lies in trusted identity verification, secure data transmission and flexible system expansion, helping users build a more reliable access control management system.
Feature
CPU Encrypted card reader;
Free PC software encryption,Used with encryption devices;
Support Mifare Card and CPU Card;
Wiegand output type;
Reading range: 3-5cm;
Voltage:4-15V;

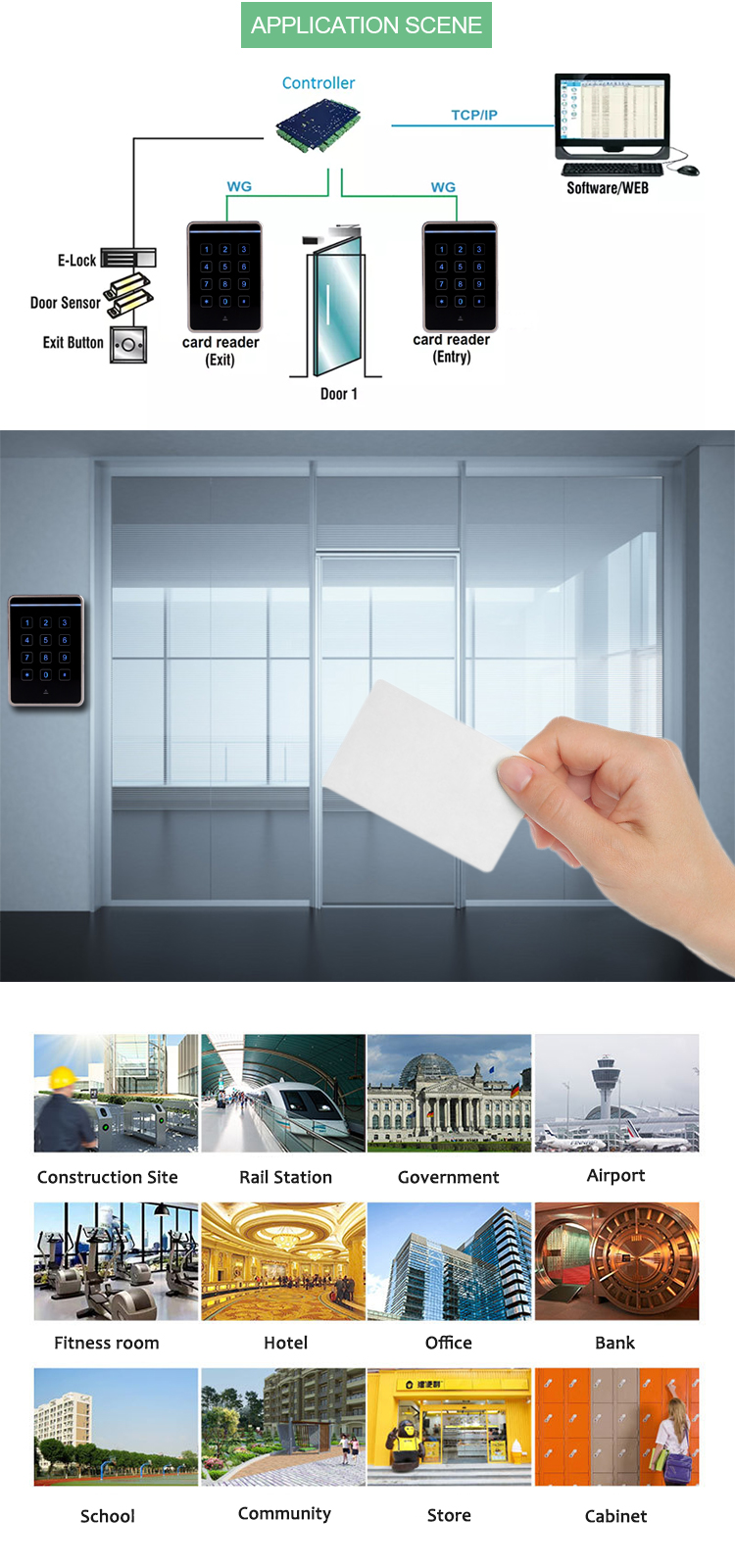

Can Connect to any Wiegand input Controller;
Small and Exquisite, fashion New Design

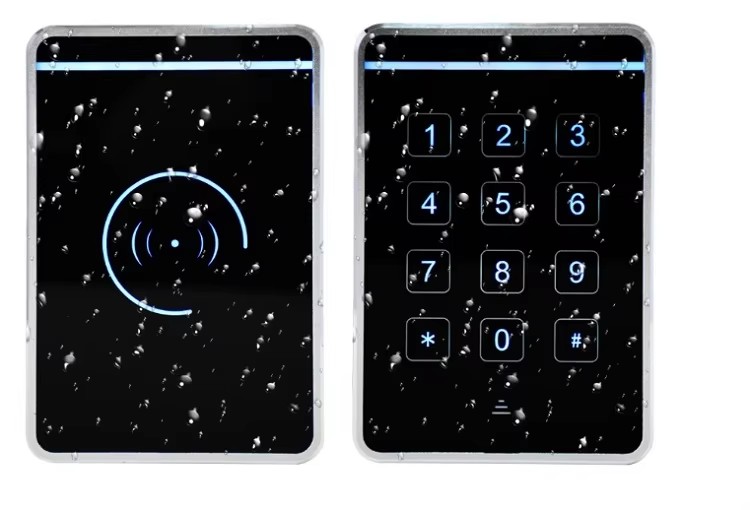

Waterproof
anti-interference ability, high security and reliability, can provide strong security.
Easy to use, can be widely used in homes, offices, residential quarters and other public places.

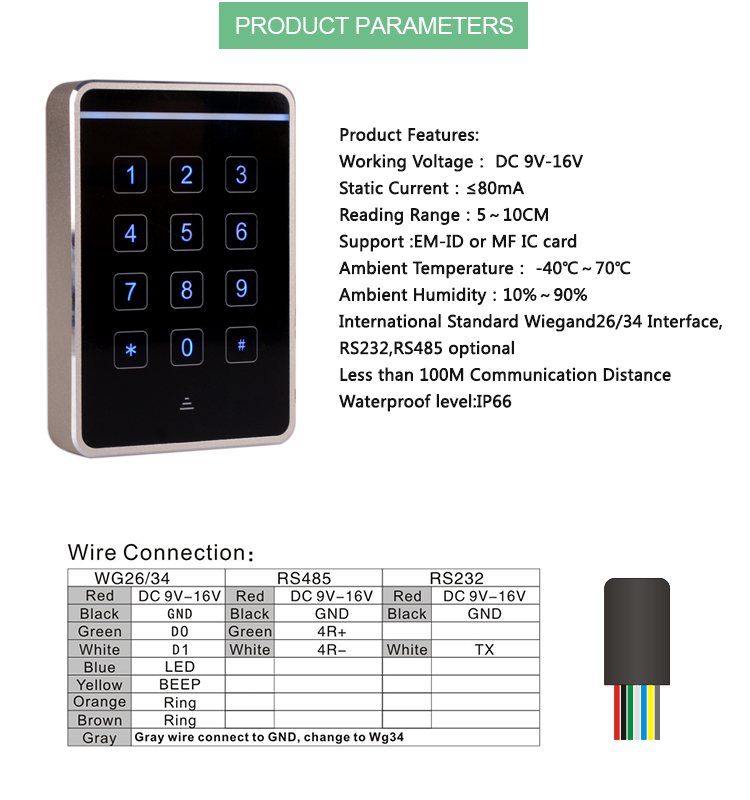

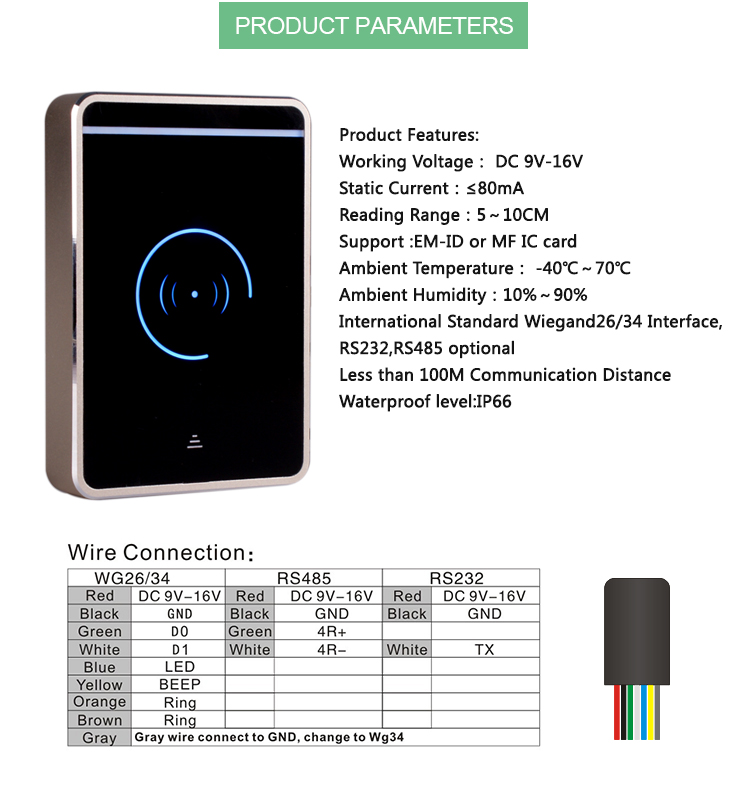

Specification | |
Material | ABS |
Color | Black |
Frequency | 13.56MHZ |
Communication | Wiegand26/34 |
Support Card Type | CPU Card |
13.56MHZ MF IC Card | |
Built-in | Antenna,speaker,buzzer,red(bule)green color LED |
Current | <80mA |
Voltage | DC 9-16V |
Humidity | 10%-90% Ambient Humidity |
Temperature | -40° C to 70° C Ambient Temperature |

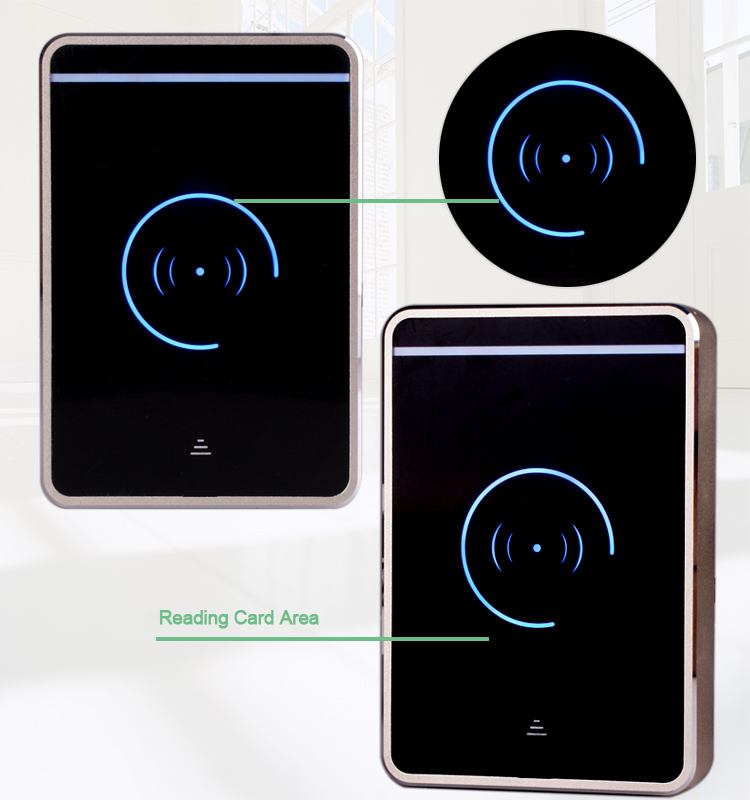

Reading Range | CPU:3-5cm |
IC:3-5cm | |
Warranty | 1Year |
Waterproof | IP65-68 |
Customization | YES |
Communication Distance | The weigand not exceed 100meters |

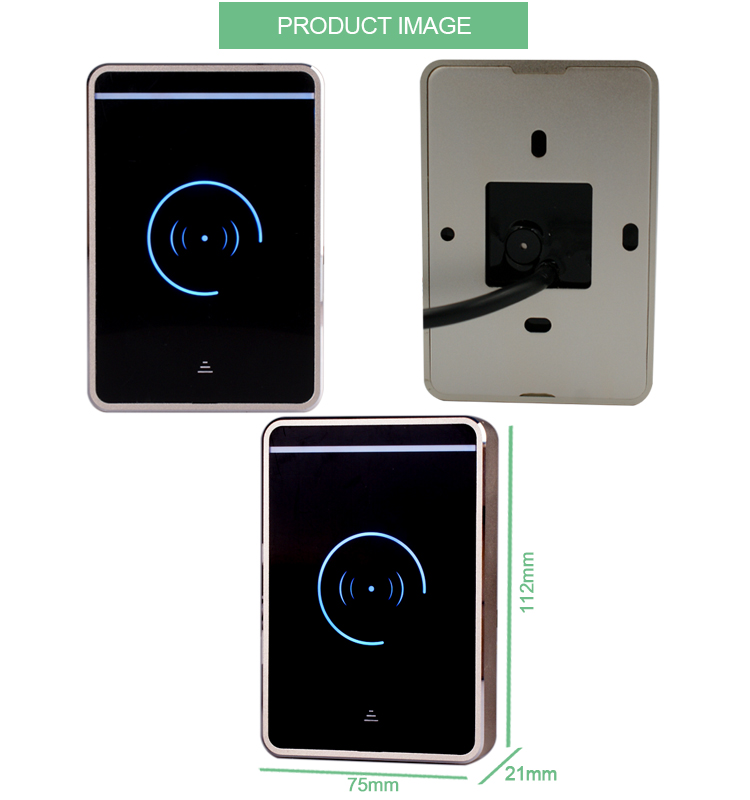

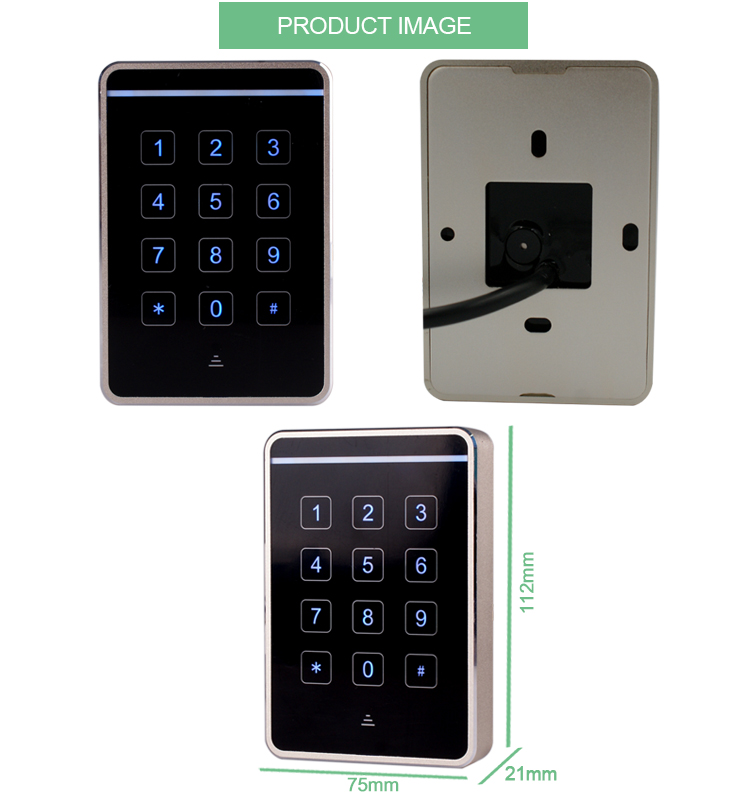

Size: | 112x75x24mm |
