125KHz/13.56KHz RFID Access Control Card Reader

Products Mode: 331A

Dual Frequency 125KHz And 13.56MHz Reader is a Low Frequency (L F+HF) Proximity reader, which is available to EM4100, EM4200,TK4100 and compatible cards, With Wiegand26,34bit interface optional, easy to use and deploy, fast and convenient to connect with other controlling devices Widely used in applications such as access control system, time attendance, guest registration system and identification authentication field etc.



Item

Parameters

Product name

125khz Rfid Em and 13.56Mhz MF IC Card Reader

Material

ABS

Frequency

125KHz and 13.56MHz)

Support cards

TK4001/ EM4100 etc and 13.56MHz Mifare)

Read Range

3-8cm

Operating Voltage

DC 9V-16V

Consumed Current

<60mA

Reader Interval

<0.5S

Format

Wiegand 26/ Wiegand 34

Distance of Transmission

WG26/34<100M

Operating Temperature

-25℃ ~ +75℃

Size

86*86*18mm

Status Indication

LED (Red for standby, Green for reading card)





Specification

Less than 0.2 second Response Speed
Less than 0.5 seconds Proximity Time Distance:
3-8cm Proximity Range
Support EM 4100 ID Card or compatible with it( 64bits, Manchester Code) and Mifare 1 Card (13.56 MHz Frequency)
-25; Cto 75; C Ambient Temperature, 10%-90% Ambient Humidity
Built-in Antenna
Built-in LED (Double Color LED)
Built-in Loud Speaker (Buzzer)
DC 12V Working Voltage,

70mA Working Current
100 Meters Communication Distance
Real Time Data Transfer
Black or White Color
PVC Case Material (Black Resin for Water-Proof Function)

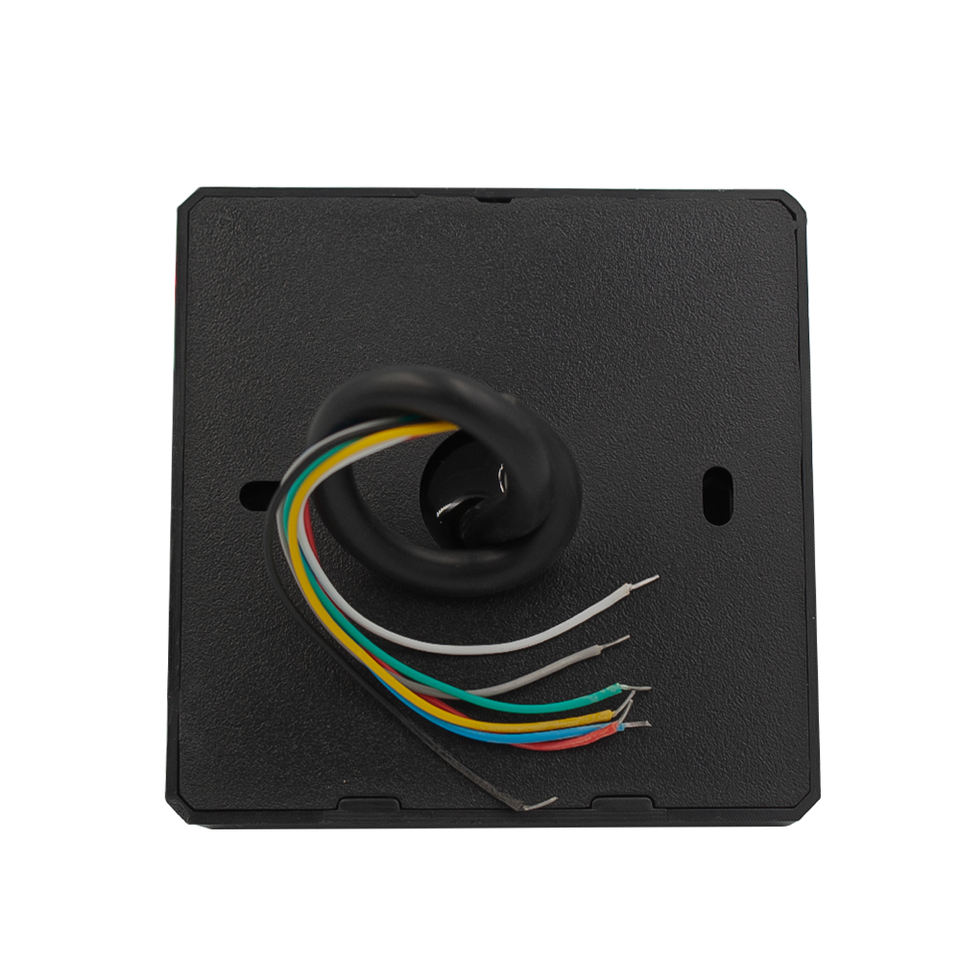

Installation
Using + type screw driver to loosen the screw between the panel and mother board, then embed the motherboard to the side wall with
the plastic plug and screws.


Notice
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia,or using several parallel Network wires.
