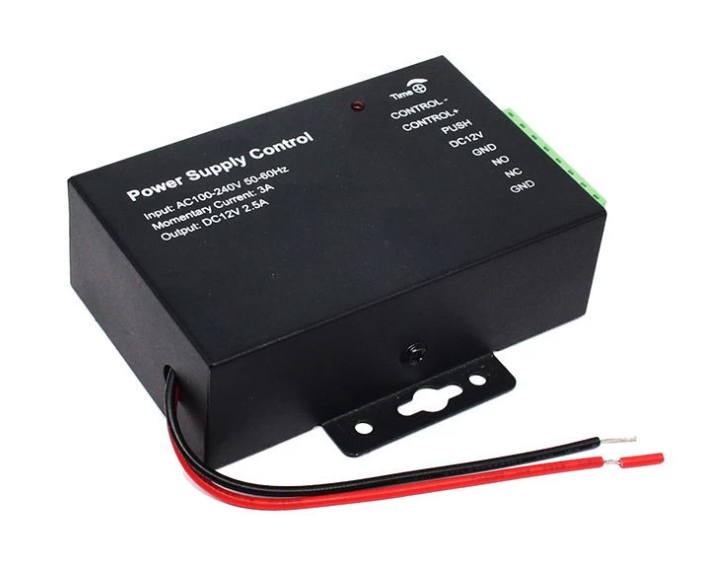

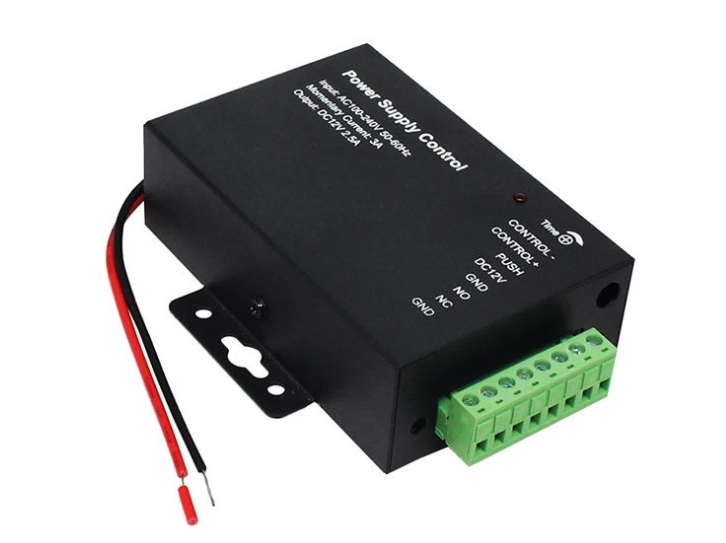

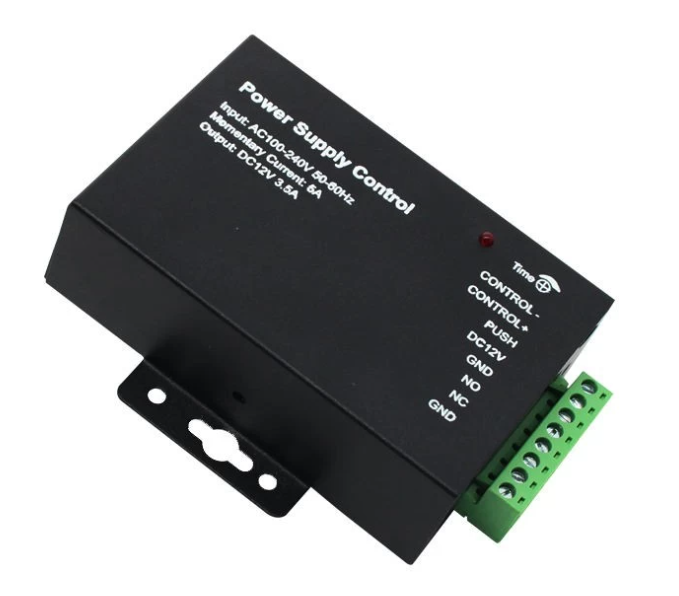

It is a door access control power supply Compatible with world voltage, light weight, convenient transportation, small disturbance Reduce the load of access controller, save wiring to reduce the hidden trouble Wide input voltage range, steady and precise,Automatic protection function:overload/ over voltage/ short circuit.It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable).Provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID reader etc.
Switch Power Supply Controller
Input: AC110V-240V / 50Hz-60Hz
Output 12V 5A

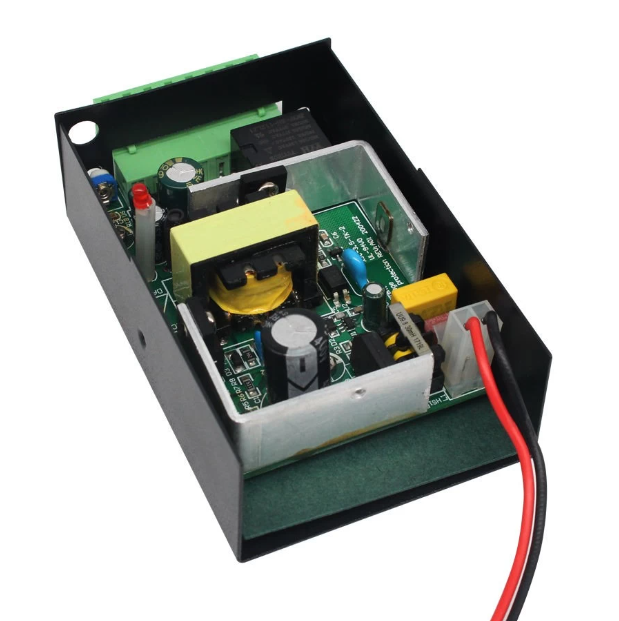

Full Copper high frequency transformer
Time delay:0-15S
Metal Housing
SMT circuit board
Lock Voltage DC12V. NO or NC
Application | Indoor |
Product Name | Access Control Switching Power Supply |
Input | 110-240V |
Output | 12-24V |
Material | Metal Housing |
Application | Access Control, Electric Lock, Release Button Contacts |
Protections | Short Circuit |
Test | EMC Standard |
Warranty | 2 Years |
Packing | Box |
OEM | Yes |
