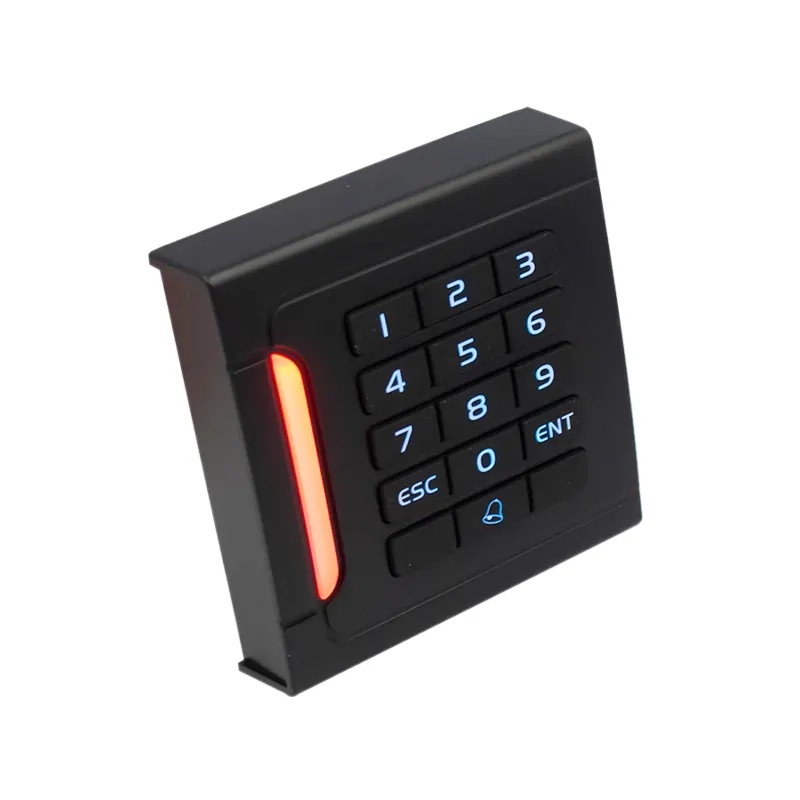

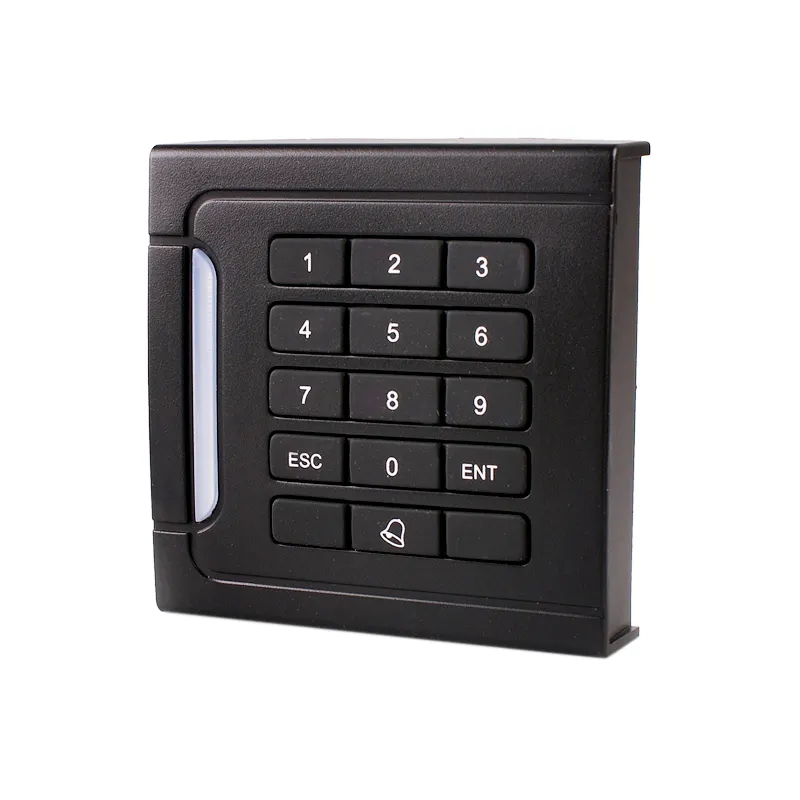

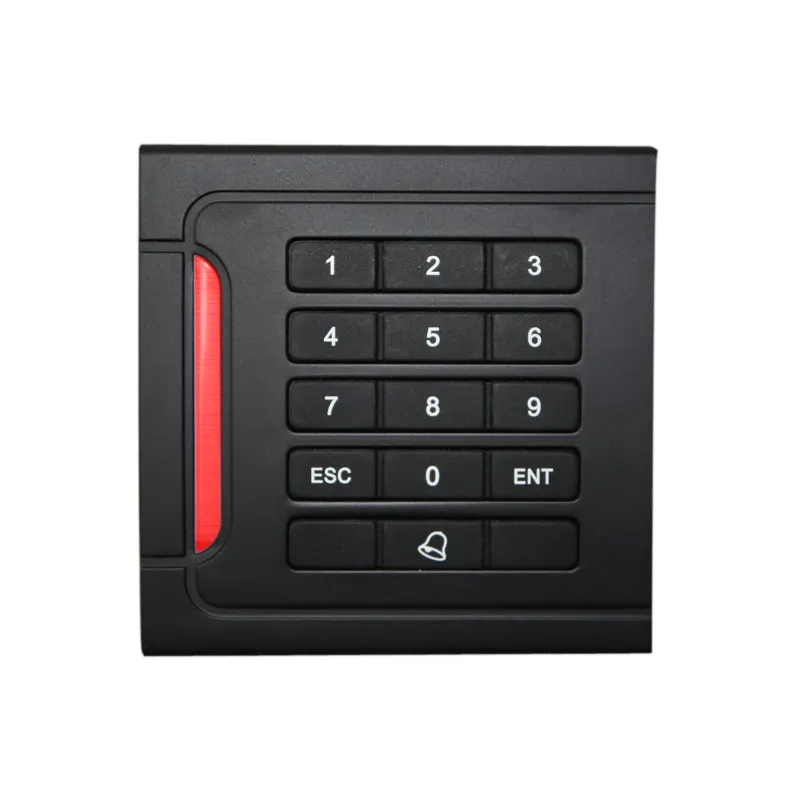

13.56mhz IC read and write encrypted keypad card reader

Products Mode: 302A-MC26/34

The core features of the 13.56mhz IC encryption anti-replication card reader revolve around security, anti-replication capability, compatibility, stability and ease of use.  It adopts symmetric encryption algorithms (such as AES, DES) or asymmetric encryption algorithms (such as RSA) to encrypt, store and transmit user information, transaction data, etc. stored on the IC card.  To prevent data from being illegally stolen or tampered with, the IC encryption anti-replication card reader, through the deep integration of encryption technology, anti-cloning mechanism and hardware reliability, solves the security pain point of traditional IC cards being easily replicated.  It is suitable for scenarios with high security requirements, such as finance, access control and transportation.

Feature

IC Encrypted card reader;

Free PC software encryption,Used with encryption devices;

Support Mifare Card ;

Wiegand output type;

Reading range: 3-5cm;

Voltage:4-15V;

Can Connect to any Wiegand input Controller;

Small and Exquisite,  fashion New Design
Waterproof
anti-interference ability, high security and reliability, can provide strong security.
Easy to use, can be widely used in homes, offices, residential quarters and other public places.



Specification

Material

ABS

Color

Black

Frequency
13.56MHZ

Communication

Wiegand26/34

Support Card Type

13.56MHZ MF IC Card

Built-in

Antenna,speaker,buzzer,red(bule)green color LED

Current

<80mA

Voltage

DC 9-16V

Humidity

10%-90% Ambient Humidity

Temperature

-40° C to 70° C Ambient Temperature

Reading Range

IC:3-5cm

Warranty

1Year

Waterproof

IP65-68

Customization

YES

Communication Distance

The weigand not exceed 100meters

Size:

100x46x20mm
