Door Access Control Magnet Lock 180KG 350lbs 280KG 500KG Electric Magnetic Lock

Products Mode: L350B
Material: Aluminum,ABS,MDF
Size: Custom Size
Colors: Black, Silver, Customized
Corner: Metal corner / Plastic corner
Handle: Metal Handle / Plastic Handle
Lining: EVA / Fabric /Nylon/ Velvet
Magnet Lock 180KG 350lbs 280KG 500KG Electric Magnetic Lock
Term: FOB CIF
Port: Ningbo, Shanghai
Min. Order: 50 Pieces
Delivery: 30 days after confirmation
Supply Ability: 50000 Piece/Pieces per Month
Payment: 30% Deposit by T/T and the balance before shipment or against the copy B/L
Shipping: EMS, FedEx, DHL, UPS, By Air & By Sea

60Kg Magnetic Lock


Lock dimensions: 80 x 40 x 22 mm
Armature plate: 74 x 35 x 10 mm
Maximum tension: 60 kg (100 lbs)
Input voltage: DC12V +10%
Operating current: 12V/300mA
Surface temperature: Within + 20 degree below ambient temperature
Suitable temperature: -10 to 55 + degrees (14-131F)
Suitable humidity: 0 to 90% relative humidity
Shell: Anodized plating processing
Lock and suction plate processing: Environmentally friendly zinc plating processing
Weight: 0.55kg
Suitable for file cabinets, small doors, and more.

Features:
Use magnetic power to lock the door, 180kg(350lbs)/280kg(600lbs)/350kg(800lbs)/500kg(1000lbs) holding force.
Built-in reverse current protection device (MOV).
Alluminum shell adopts high strength material, with hard anodised processing.
Corrosion resistant.
Good quality and durable to use.
Can be opened by push button, remote controller, etc.
Fit for wooden door, metal door, glass door, fireproof door, etc.

Specifications:

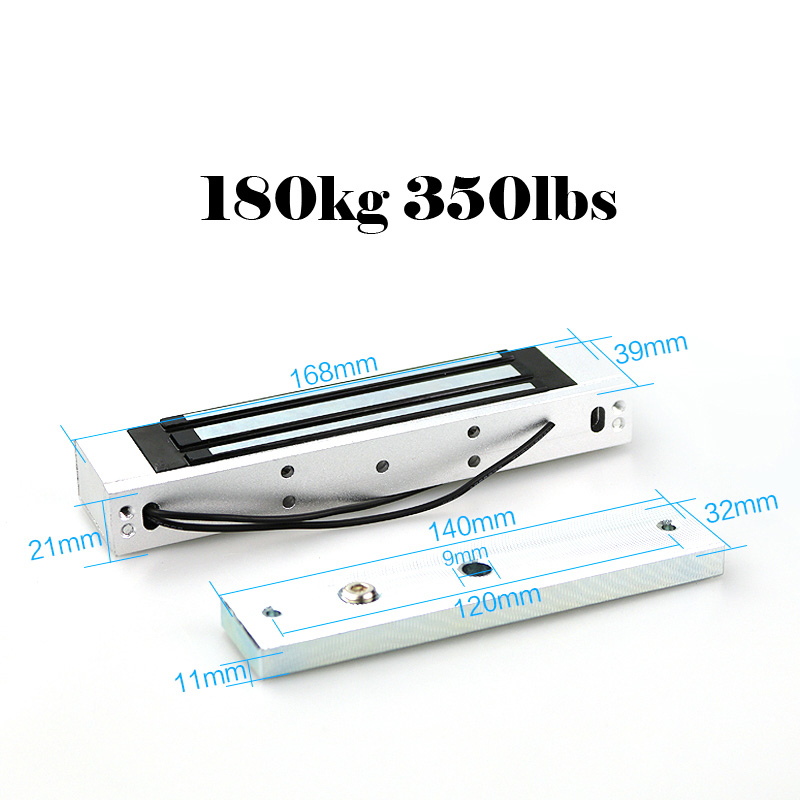

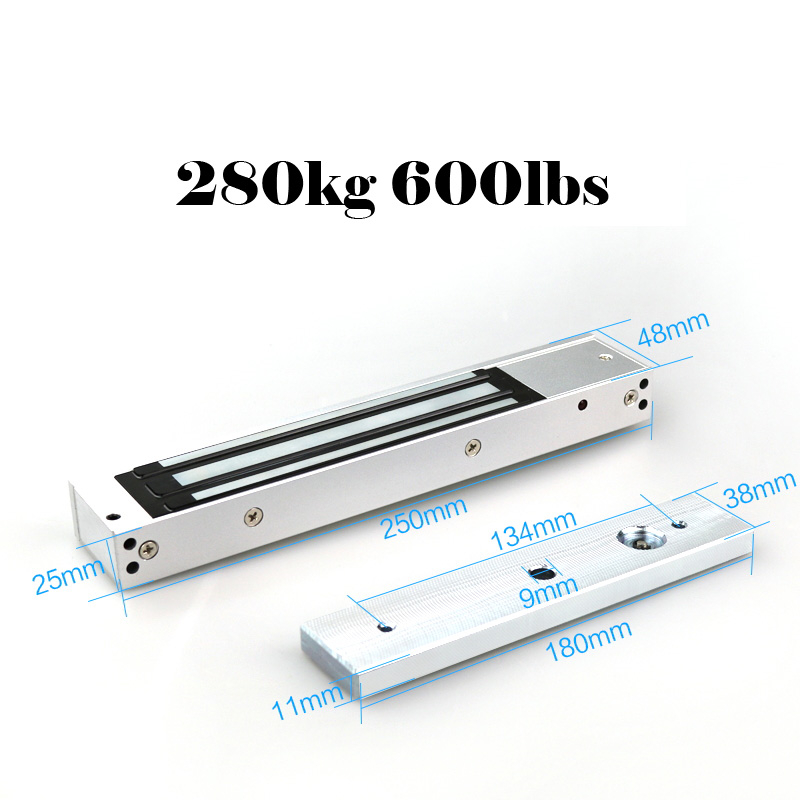

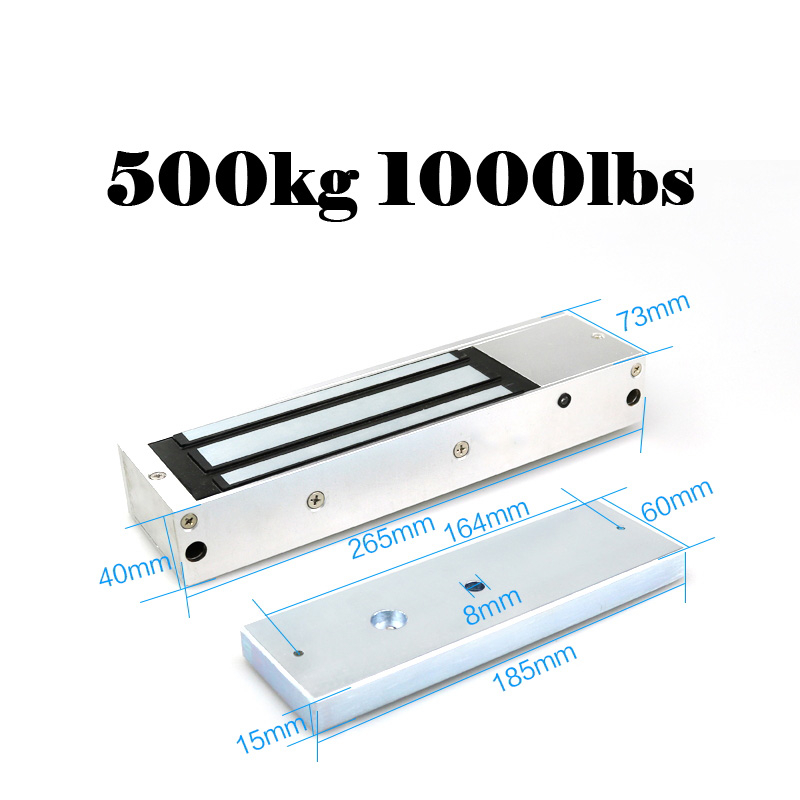

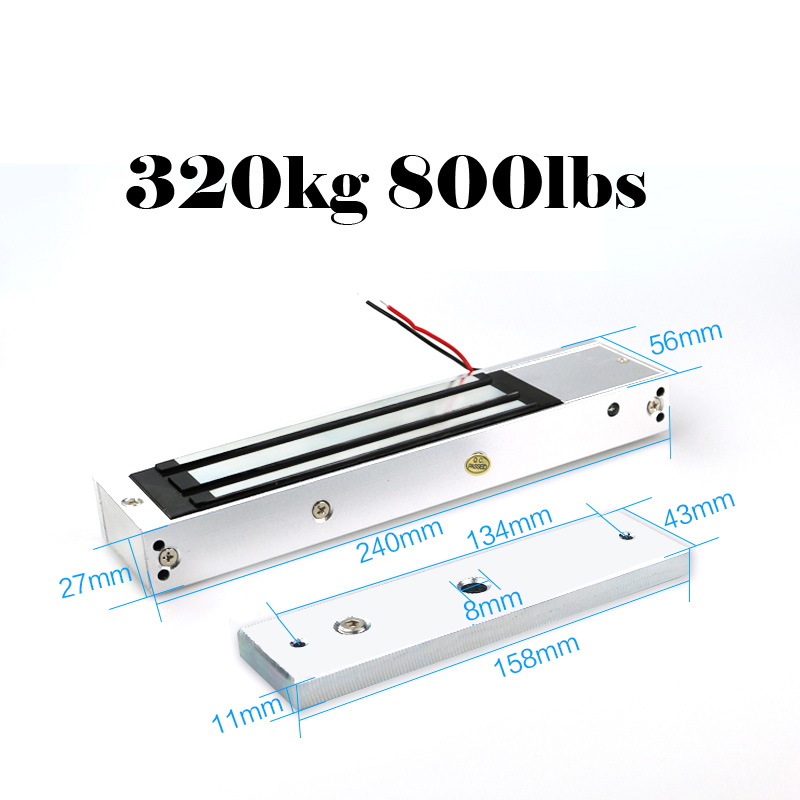

Holding force: 180kg(350lbs)/280kg(600lbs)/350kg(800lbs)/500kg(1000lbs)
Voltage: DC 12V
Current: 380-430mA
Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
Humidity: 0 to 95%
Working mode: power-on to lock
