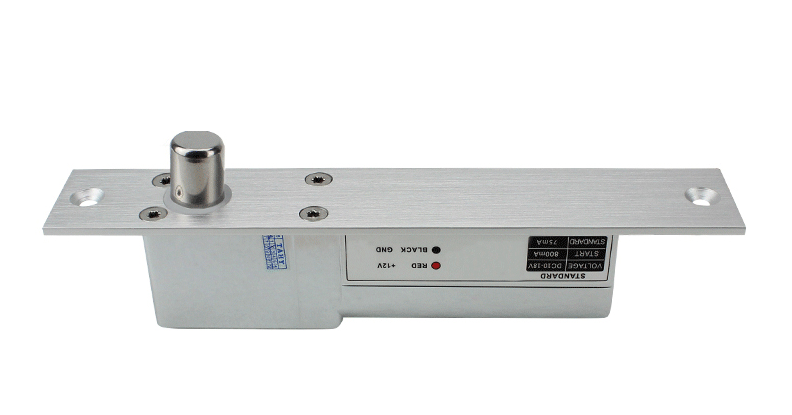

Electric bolt
Electric bolt .with Door status Signal Output ,suitable for glass door, wooden door, metal door . We supply integrity equipment to collocate with fully frame less glass door, swing-in door and so on. low temperature design.
| Product Parameter | Parameter Description |
| Feature | Fail Safe |
| Face Plate | 200Lx34WX43H(mm) |
| Voltage | DC12V |
| Start Current | 900mA |
| Standby Current | 120mA |
| Solid Bolt | polishing housing, 800Kg Holding Force |
| Suitable For | Wooden Door,Glass Door,Metal Door,Glass Door |
| Surface Temp | Low Temperature |
| Induction Distance | 8mm |
| Operating temp | -10～+55℃(14~131F) |
| Operating Humidity | 0～90%(non-condensing) |
| Special Designed | Tested to 500000 cycles |
| Face place material | High Aluminum |
