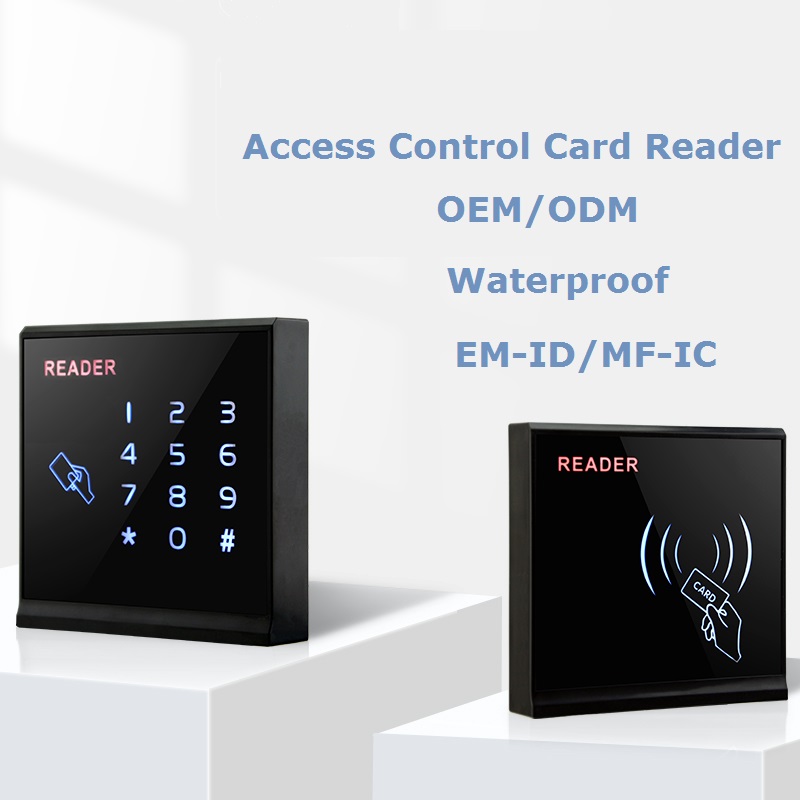

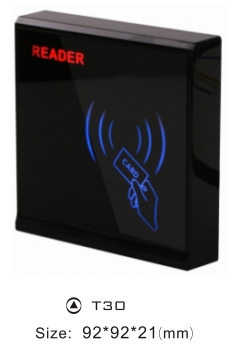

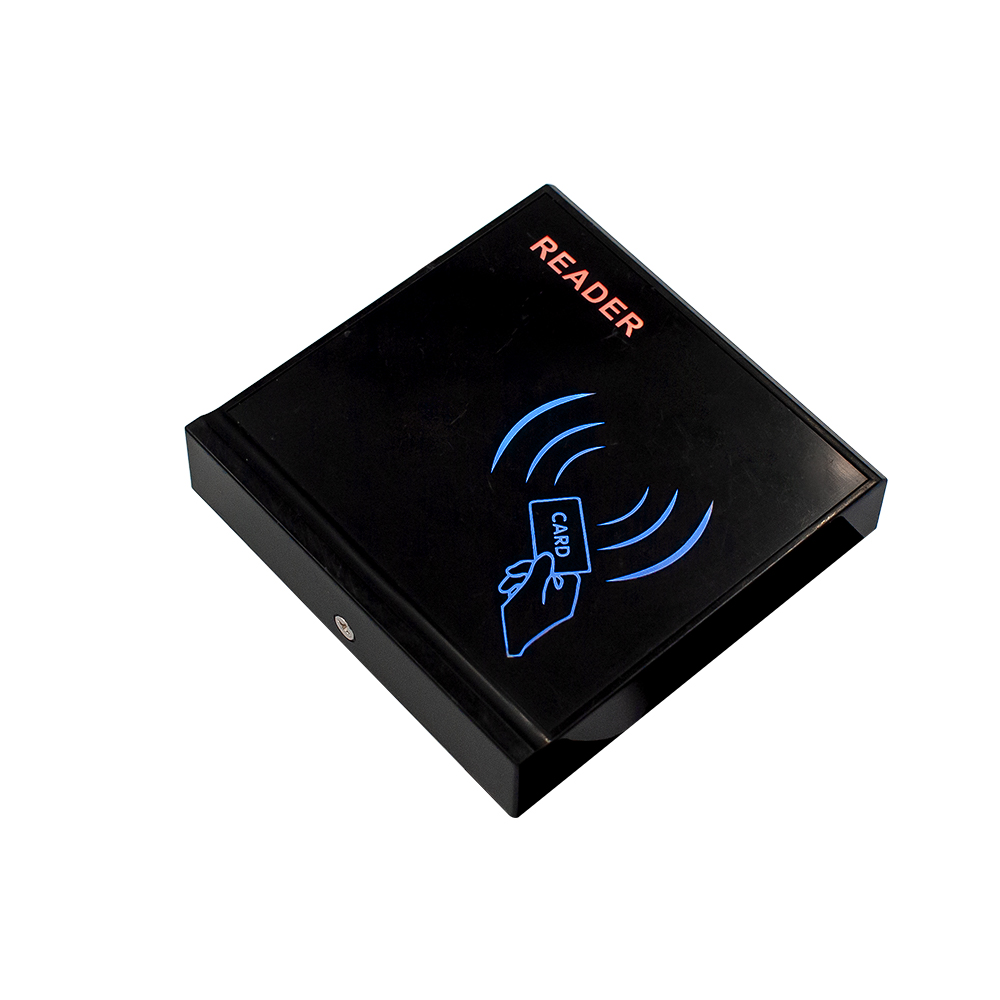

Model | Card Reader Access Control Keypad |
Color | Black |
Voltage | DC9~16V |
Current | ≤100mA |
Ambient Temperature | -25°C~75°C |
Reading Range | 5~15CM |
Output Format | Wiegand26/34 |
Card Type | MF-ID |
Comunication Distance | ≤100M |
About Use
When the card approach the reader, the red light turn into green, after glinting to turn redcolor again, the buzzer sound shows transiting data. It has 500ms proximity time distance for card proximity. After finishing card proximity, if the same ID card is still in the proximity range, reader will not send out the data, neither giving any sound hint. But for Different ID card entering Proximity Area, Reader can do response continually and send out the data
Specification
@ Wiegand 26bits/ Wiegand34bits Standard Format Data Output
@ Less than 0.2 second Response Speed
@ Less than 0.5 seconds Proximity Time Distance:
@ 2-15cm Proximity Range
@ Support UEM 4100 ID Card or compatible with it( 64bits, Manchester Code) and Mifare 1 Card (13.56 MHz Frequency)
@ -25; Cto 75; C Ambient Temperature, 10%-90% Ambient Humidity
@ Built-in Antenna
@ Built-in LED (Double Color LED)
@ Built-in Loud Speaker (Buzzer)
@ DC 12V Working Voltage, 70mA Working Current
@ 100 Meters Communication Distance
@ Real Time Data Transfer
@ Black Color
@ PVC Case Material (Black Resin for Water-Proof Function)

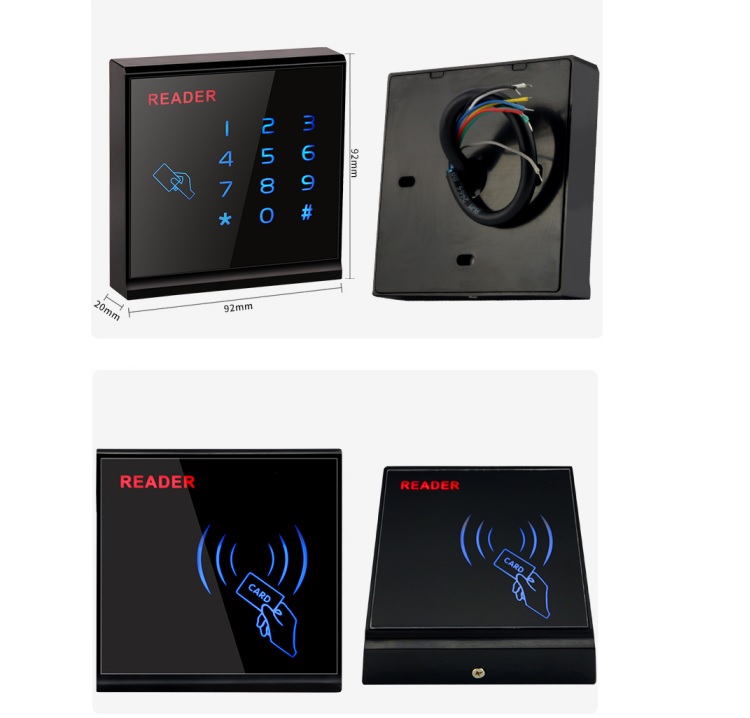

@ 109*88.4*34(mm)
Installation
Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.
Wire Connection
Red DC 5V-16V
Black GND
Blue D1
White D0
Brown BEEP
Green LED
Yellow Alarm
Notice
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires
