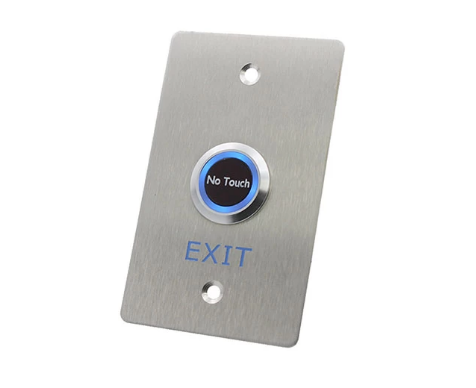

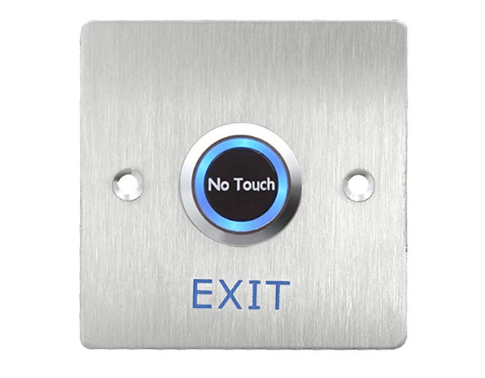

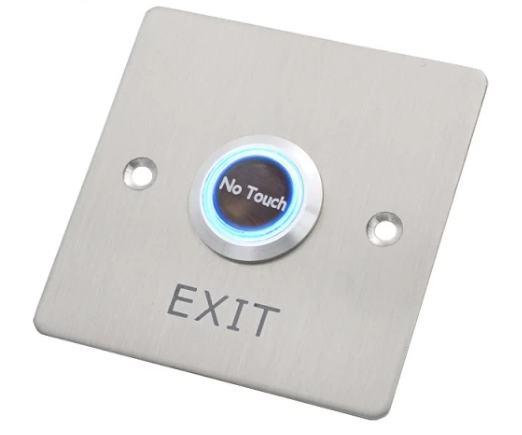

Factory Wholesale Stainless Steel Non-Contact Exit Button with Double Light

Products Mode: OP19D

Model Number: OP19D Product name: Wholesale stainless steel non-contact exit button with double light Input: DC12-24V Size: 86L * 86W * 25H (mm) Output contact: NO / NC / COM Detection range: 0.1 ~ 10cm Operating Temp: -20 ℃ ~ + 55 ℃ (14-131F) Suitable humidity: 0-95% (relative humidity) Suitable for door: empty door Weight: 0.15 kg Application: gate / door / exit / automation control Special Features: BUTTON

1. Made of durable and tall material.

2. Tested at 500,000 cycles

3. Three contact outputs, suitable for all types of locks

4. The best choice for access control

exit button for access control Technical specifications:

Product parameter	Parameter description

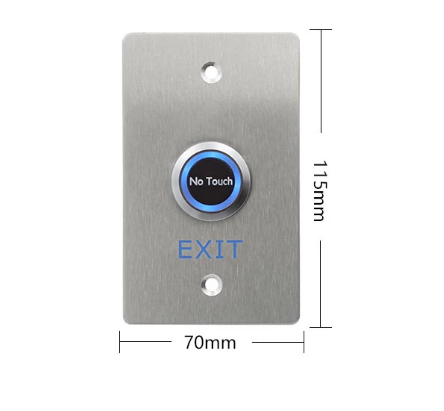

Dimensions	86Lx86W (mm)
Contact evaluation	12-28V, 3A

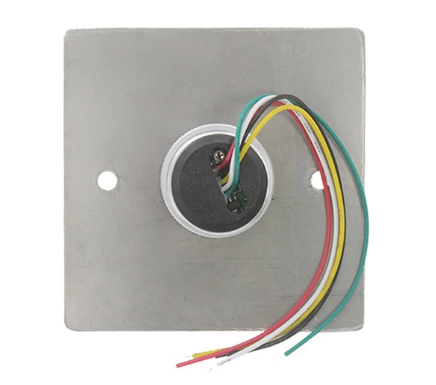

Output contact	NO / NC / COM
Mechanical life	500000 tested
Material	1.7mm thickness in stainless steel
Operating Temp	-20 ℃ ~ + 55 ℃ (14-131F)
Suitable humidity	0-95% (relative humidity)
Detection range	5-15cm (adjustable)
Weight	0.15 kg

exit button for access control

- High quality material, fireproof resin shell, safe and durable.
- Works with most electronic access control keypads, intercoms with access control keypads.
- Activate electric strike, magnetic lock or other electric lock via access control keypad.
Flush mount, easy to use and use.
