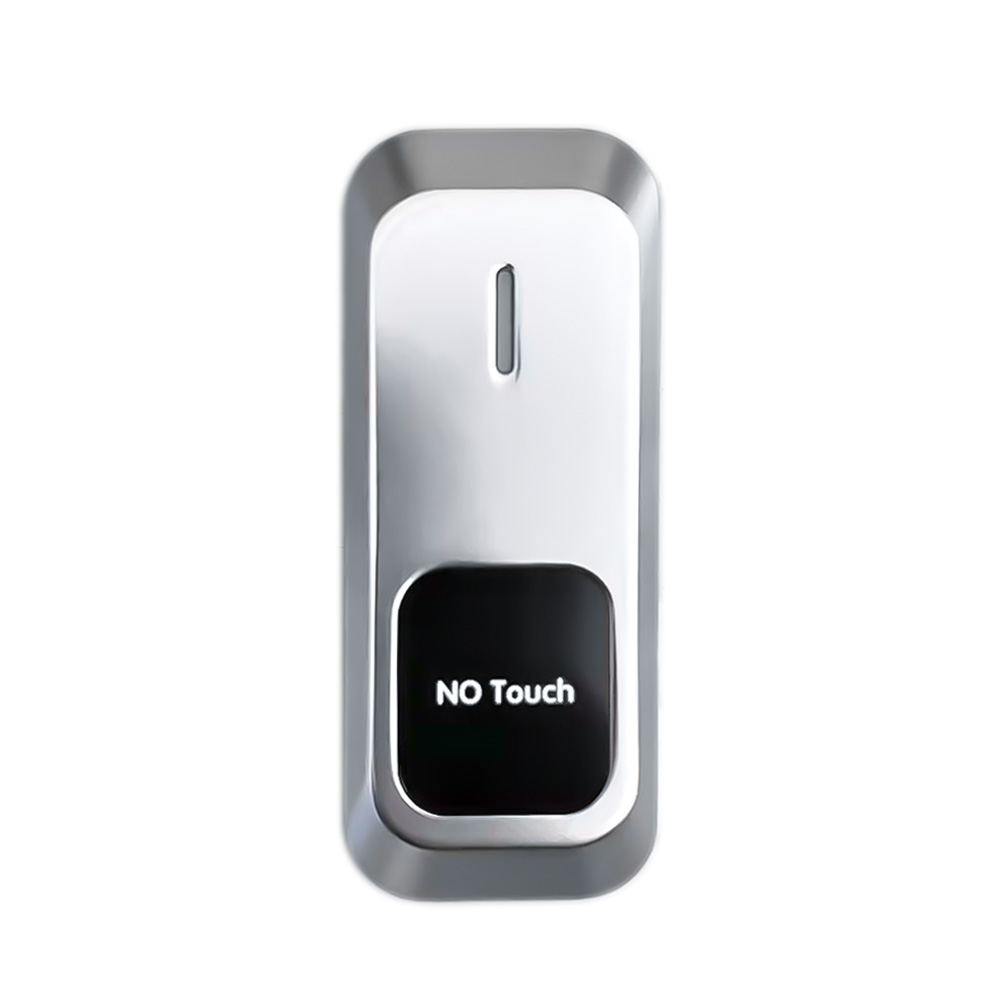

Infrared No Touch Push Button

Products Mode: OP02H1

  • Product performance description


No touch / Touch free Exit Sensor

(Diffused Detection)

Optical / Infrared Technology

IP68 Ingress Protection / Product material zinc alloy

Free from contagious diseases spread Detection range: 0.1 ~ 10 cm

Application: Gate/Door/Exit/Automation control

Normally open/Normally close/Common relay output

2 led indicators for sensor standby or approached

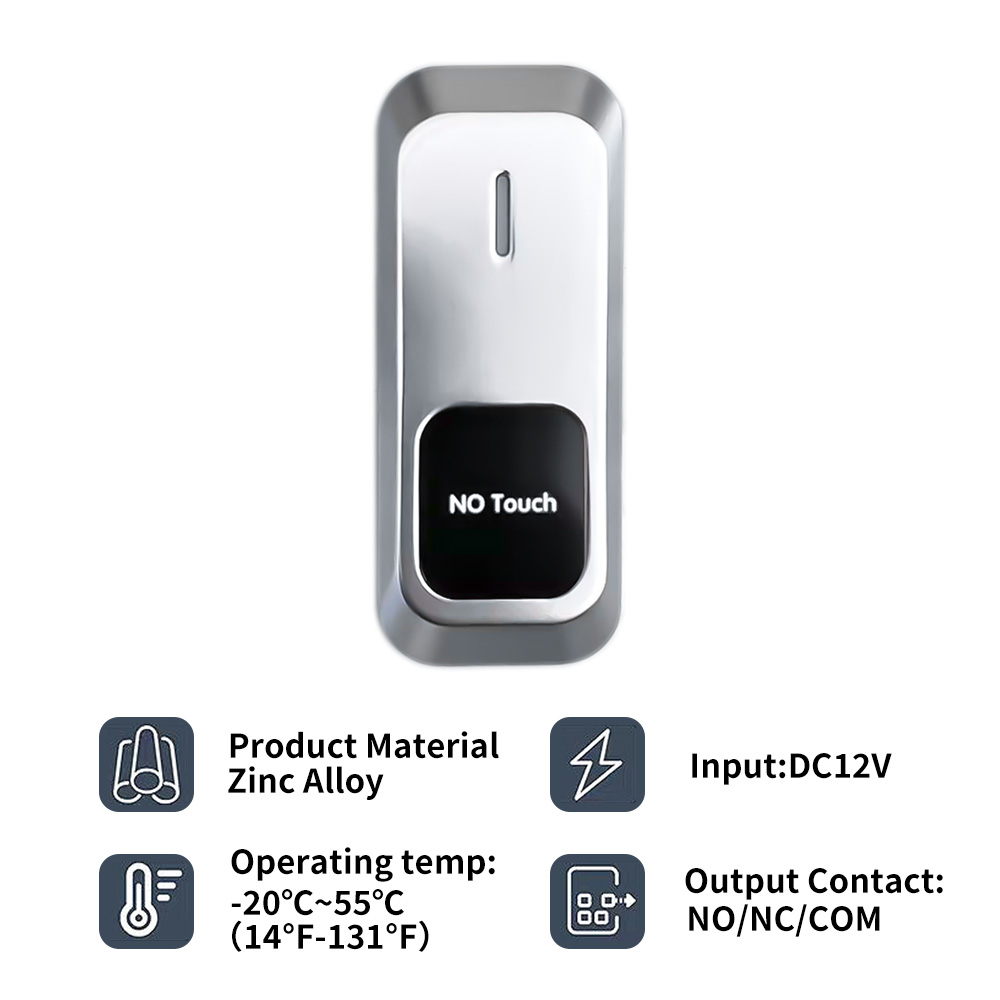

Product Parameter

Parameter Description

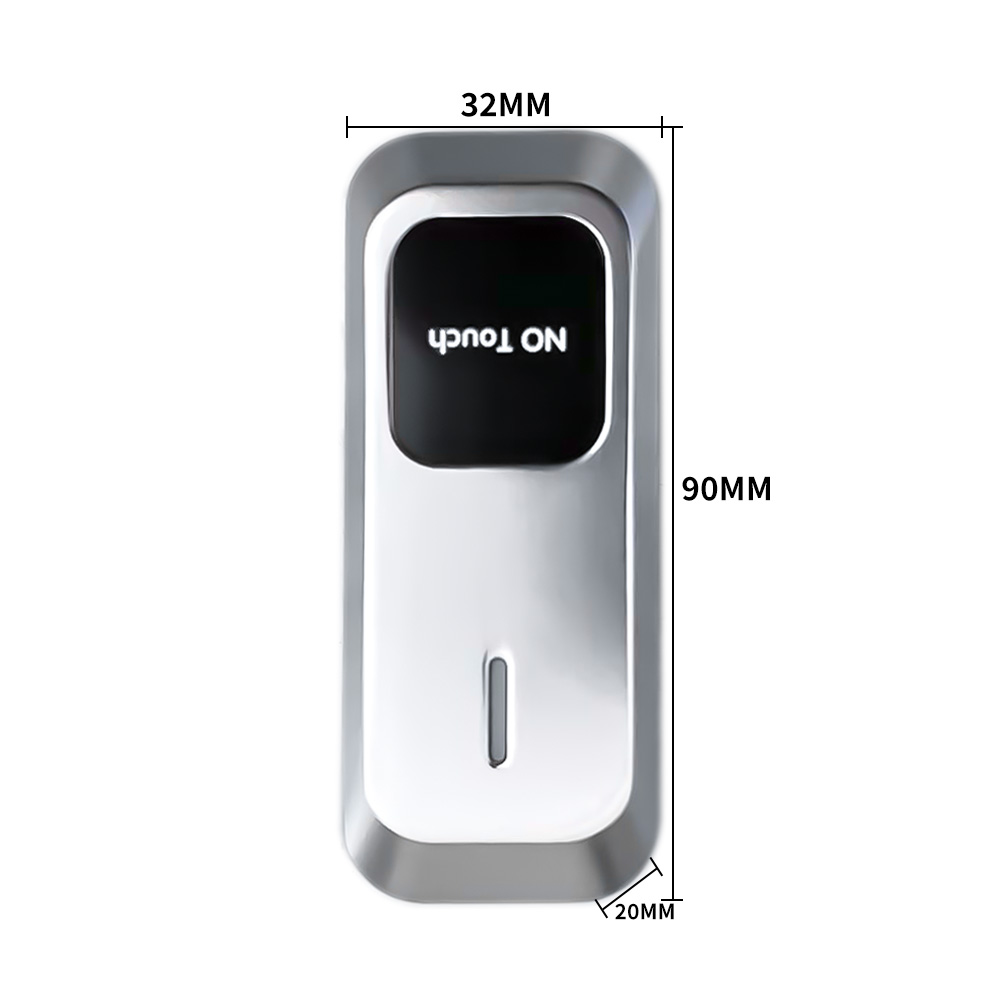

Dimensions

80Lx32Wx20H(mm)

Input

DC12V

Contact Rating

12-28V,3A

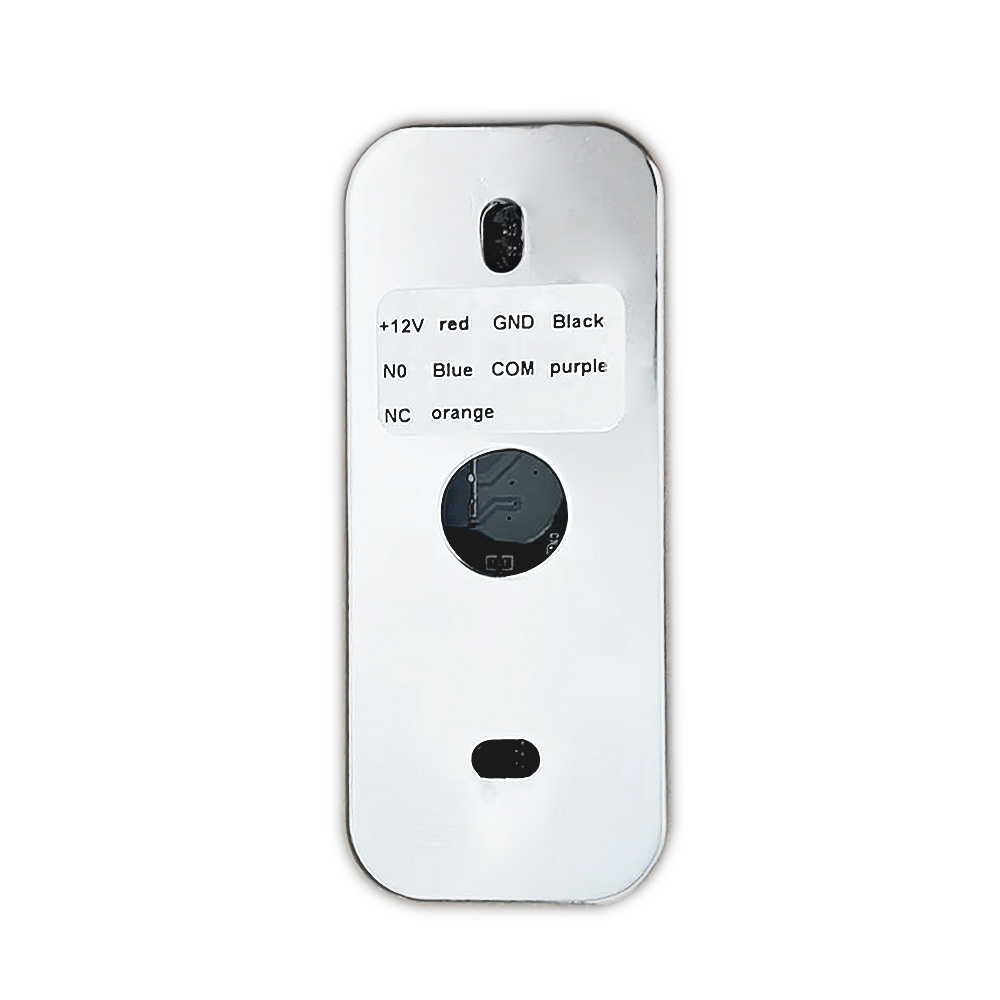

Output Contact

NO/NC/COM

Mechanical Life

500000 tested

Operating temp

-20℃~+55℃(14-131F)

Suitable Humidity

0-95% (relative humidity)

Detection range

0.1-10cm

product material

zinc alloy

AC/DC

Adjustable

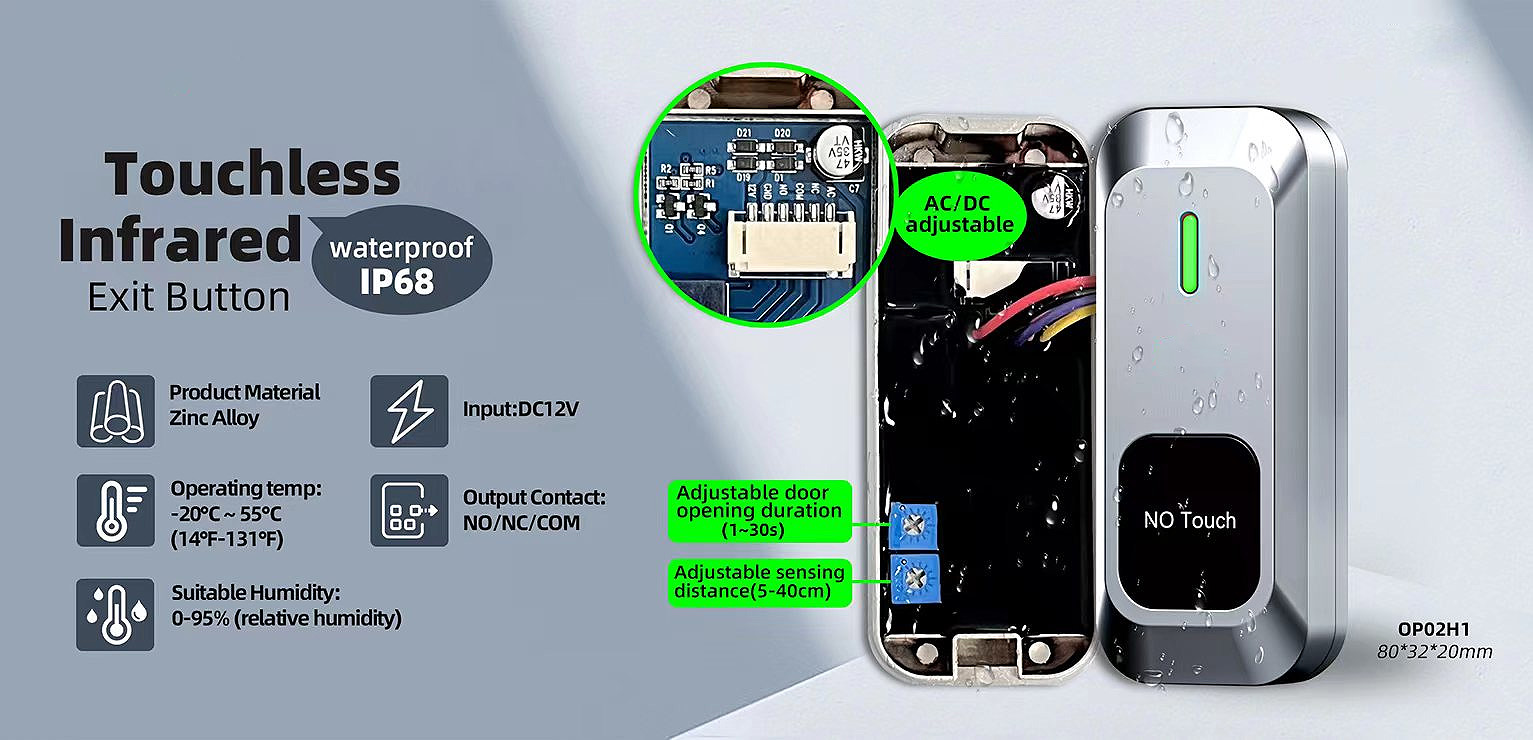

adjustable door opening duration

1-30s

adjustable sensing distance

5-40cm
