K10 RFID IP66 waterproof standalone keypad reader metal case keyboard single door access control system China Factory

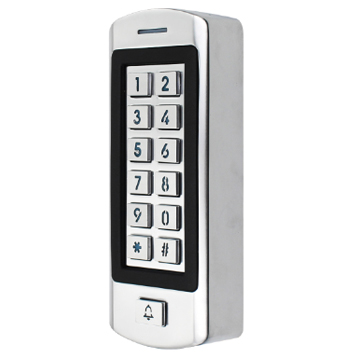

K10 RFID IP66 waterproof standalone keypad reader metal case keyboard single door access control system

Products Mode: K10

PIN Keyboard Access Controller

Description

RFID IP66 waterproof standalone keypad reader metal case keyboard single door access control system

Model:K10

Features

Metal case, backlit keypad
Waterproof,conforms to IP66
One relay, 1000 users (990 Normal Users + 10 Visitor Users)
3 access modes: Card, PIN, Card + PIN
Card type: 125KHz EM card
PIN length: 4~6 digits
Anti-tamper alarm
With Doorbell for visitors

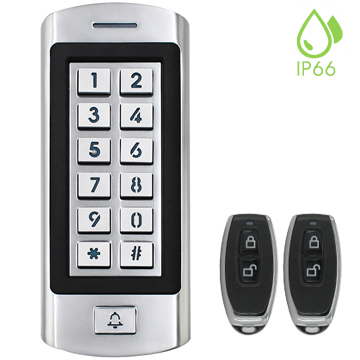

Remote Control for optional

Specifications

User Capacity	1000 Cards/PINS (990 Normal Users + 10 Visitor Users)
Operating Voltage Static Current Active Current	9~18V DC 50mA 80mA
Keypad	12 Key (3*4)
Proximity Card Reader Radio Technology Read Range	EM 125 KHz Industry Standard Proximity Card 2-6 cm
Wiring Connections	Relay Output, Exit Button
Relay Adjustable Relay Output Time Lock Output Load	One (NO, NC, Common) 0-99 Seconds (5 seconds default) 3 Amp Maximum
Environment Operating Temperature Operating Humidity	Outdoor -40°C~ 60°C (-40°F ~ 140°F) 10%RH-90%RH Non-Condensing
Physical Surface Finish Dimensions Unit Weight Shipping Weight	Zinc-Alloy Enclosure Powder Coat 13.6L x 5.6W x 2.5H (cm) 600g 700g
