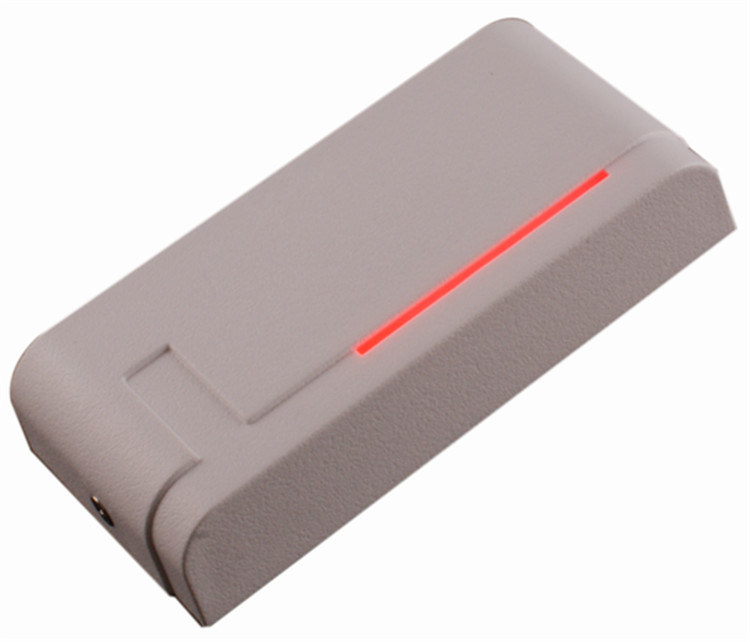

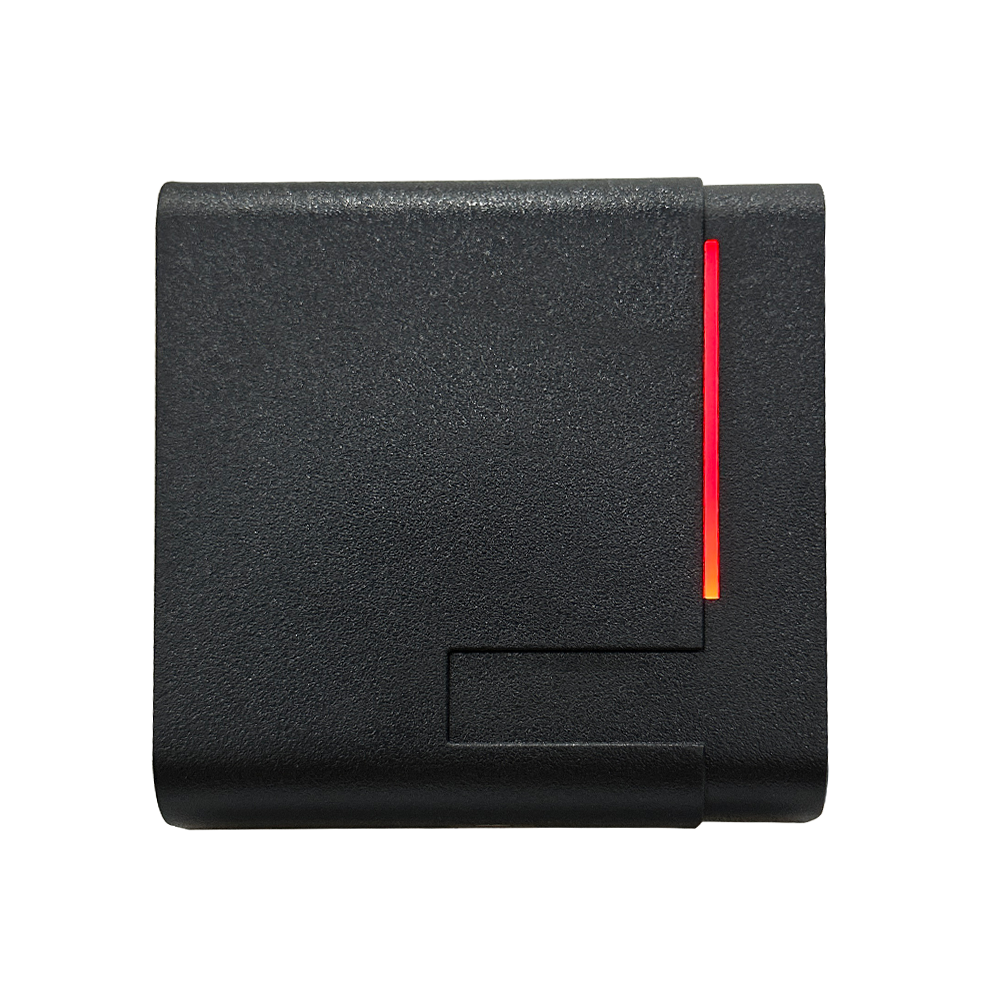

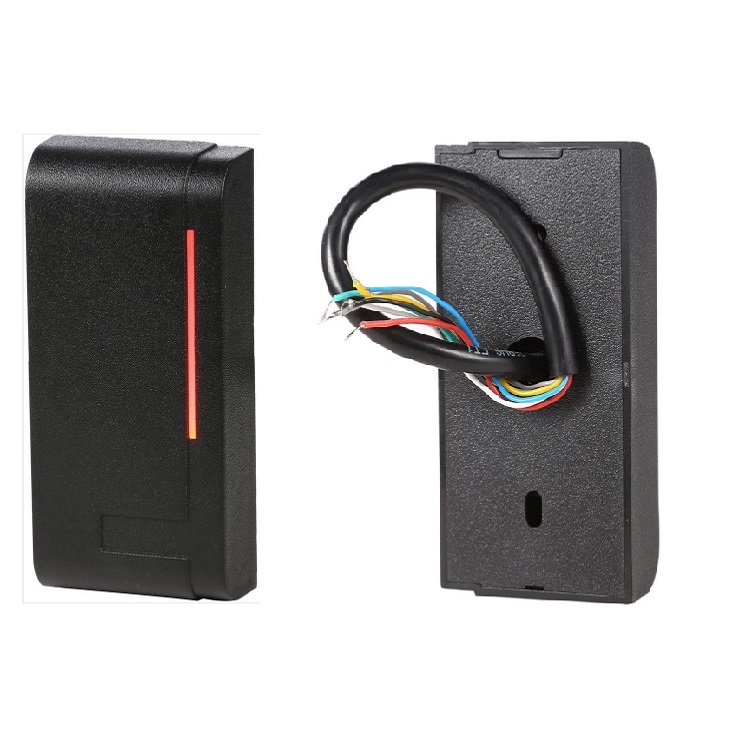

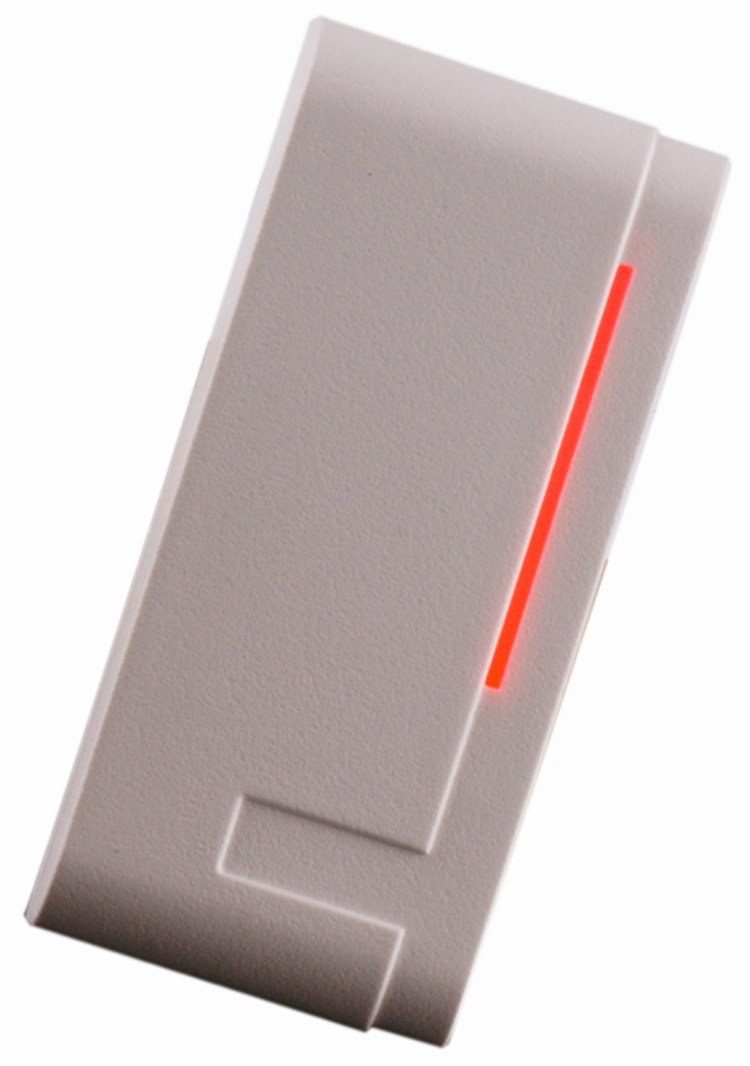

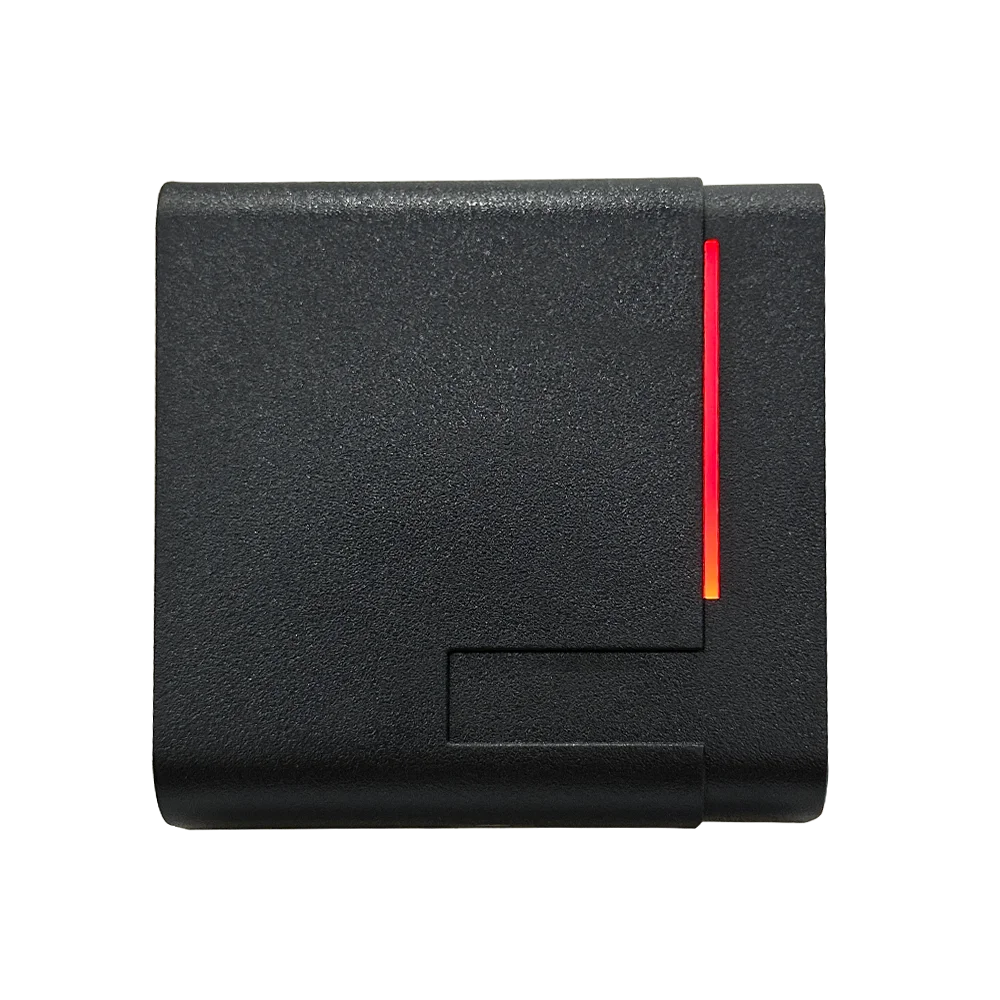

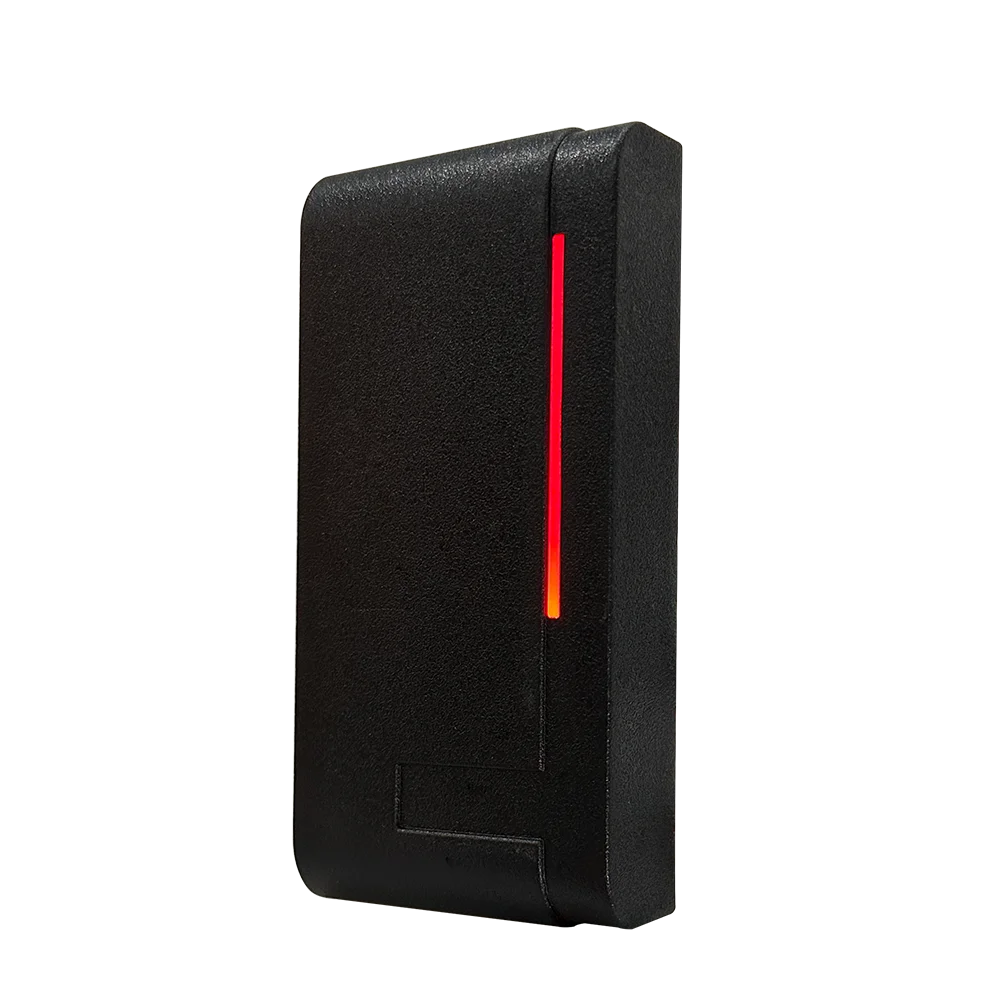

RS485/OSDP RFID access control reader OSDP RS-485 protocol
The OSDP readers can be installed at multiple points by using the bus connection.
Communication Distance:≤1200M
Low Frequency/High Frequency Proximity reader With Wiegand26,34, RS232, RS485 interface optional, easy to use and deploy, fast and convenient to connect with other controlling devices.
Widely used in applications such as access control system, time attendance, guest registration system and identification authentication field etc.
Product Description
Specification
Wiegand 26bits/ Wiegand34bits Standard Format Data Output, RS232,RS485 RFID Reader optional
Less than 0.2 second Response Speed
Less than 0.5 seconds Proximity Time Distance:
2-15cm Proximity Range
Support EM 4100 ID Card or compatible with it( 64bits, Manchester Code) and Mifare 1 Card (13.56 MHz Frequency)
-25; Cto 75; C Ambient Temperature, 10%-90% Ambient Humidity
Built-in Antenna
Built-in LED (Double Color LED)
Built-in Loud Speaker (Buzzer)
DC 12V Working Voltage, 70mA Working Current
100 Meters Communication Distance
Real Time Data Transfer

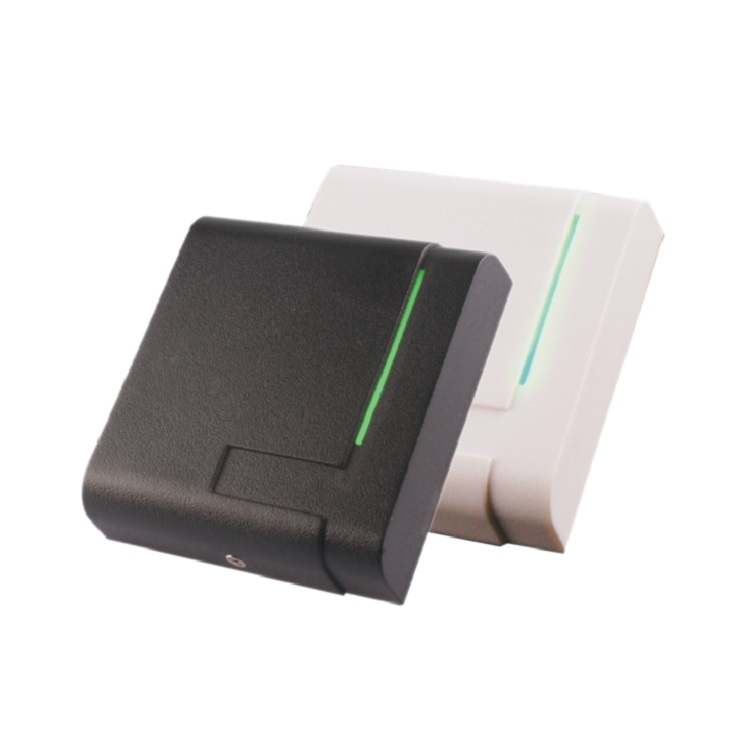

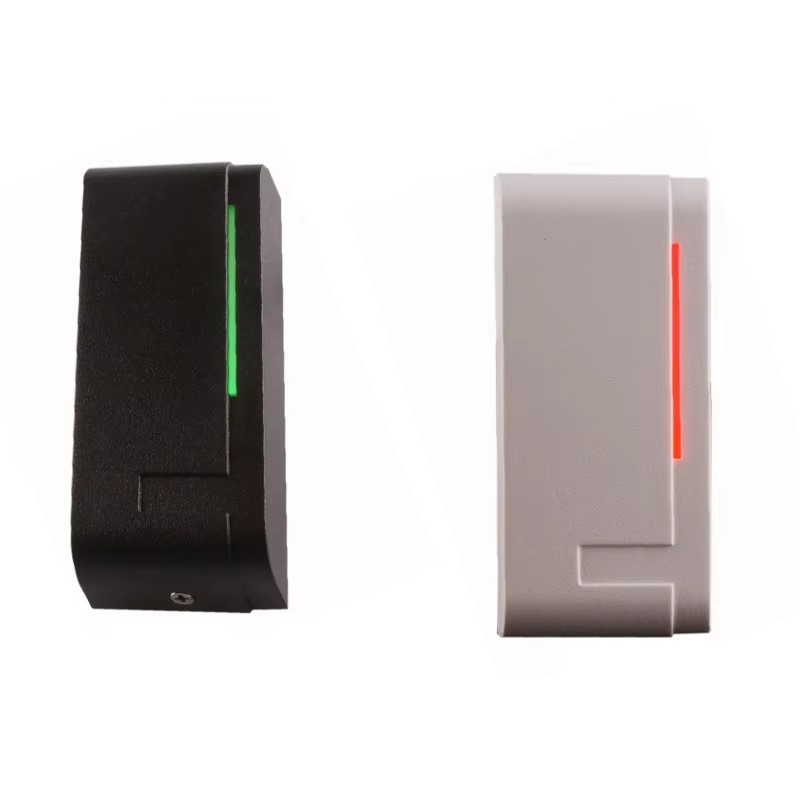

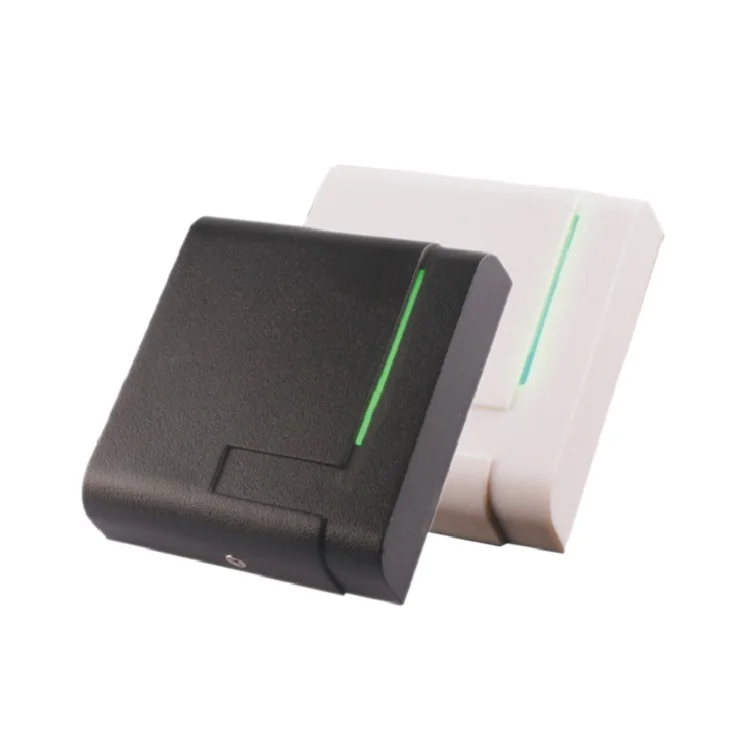

Black or White Color
PVC Case Material (Black Resin for Water-Proof Function)
Installation
Using + type screw driver to loosen the screw between the panel and mother board, then embed the motherboard to the side wall with the plastic plug and screws.
Notice
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires
