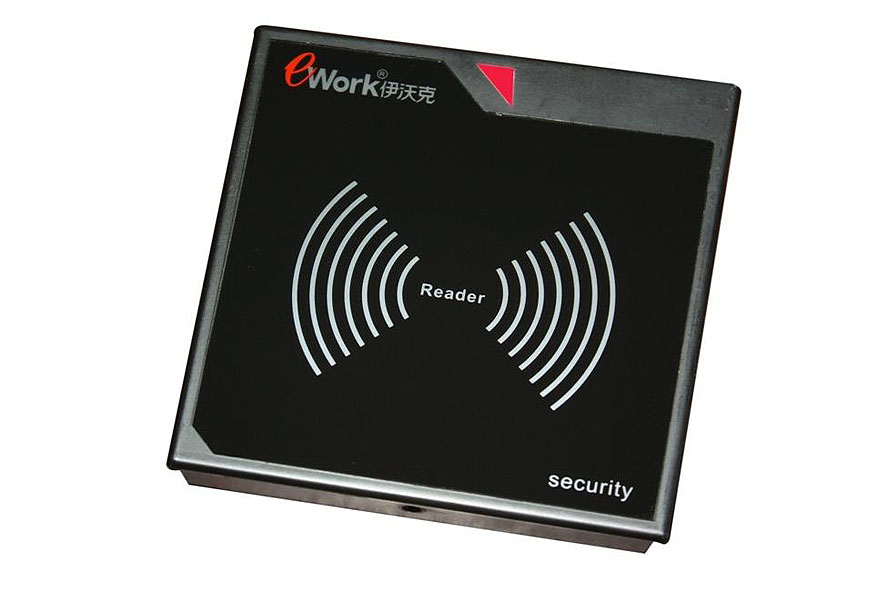

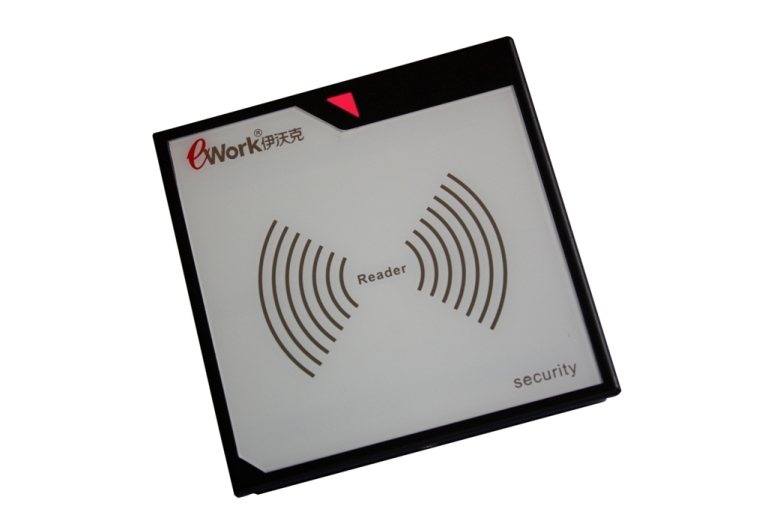

Popular RFID Reader Access Control System

Products Mode: 501
Popular RFID Reader Access Control System

Popular RFID Reader Access Control System

Specification
Wiegand 26bits/ Wiegand34bits Standard Format Data Output
Less than 0.2 second Response Speed
5-10cm Proximity Range
Support EM-ID, M1card, 15693card, 14443A or 14443B Card
Ambient Temperature: -25º C to 75º C
Ambient Humidity: 10%-90%
Built-in Antenna
Built-in LED (Double Color LED)
Built-in Loud Speaker (Buzzer)
DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current
90 Meters Communication Distance
Real Time Data Transfer
With Water-Proof Function
Audiovisual indication: When a registered card is presented to the reader, the re
LED flashes green and the beep sounds.
100*100*20(mm)
