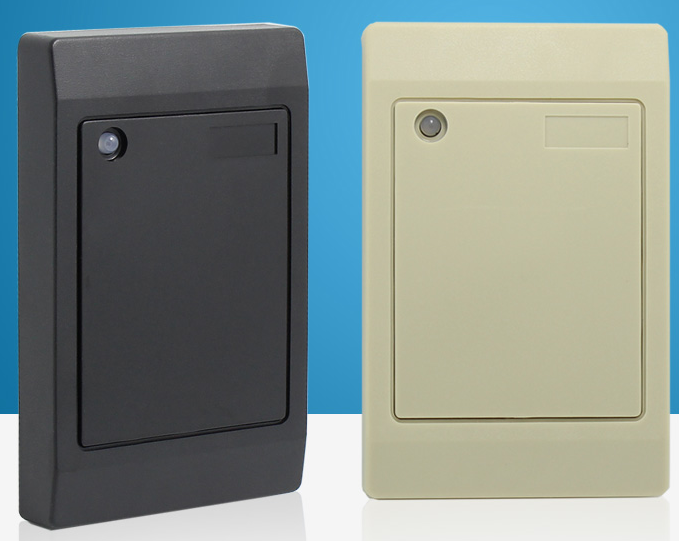

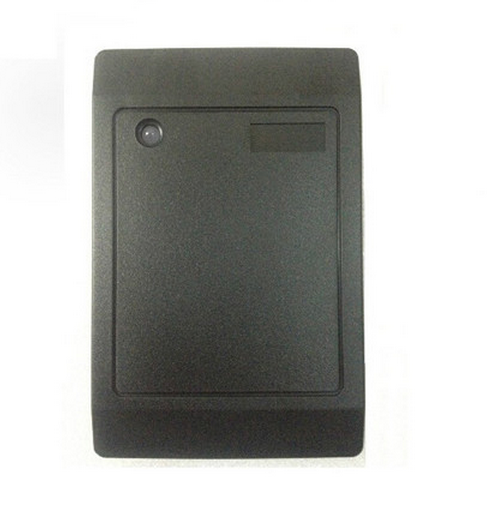

RFID HF reader

Products Mode: 08A
RFID HF reader

RFID HF reader

Specification

*Wiegand 26bits/ Wiegand34bits /ABA Standard Format Data Output
*Less than 0.2 second Response Speed
*Less than 0.5 seconds Proximity Time Distance:
*2-15cm Proximity Range
*Support UEM 4100 ID Card or compatible with it( 64bits, Manchester Code) or Mifare 1 Card (13.56 MHz Frequency)
*-25℃ to 75℃ Ambient Temperature,10%-90% Ambient Humidity
*Built-in Antenna
*Built-in LED (Double Color LED)
*Built-in Loud Speaker (Buzzer)
*DC 12V Working Voltage,70mA Working Current
*100 Meters Communication Distance
*Real Time Data Transfer

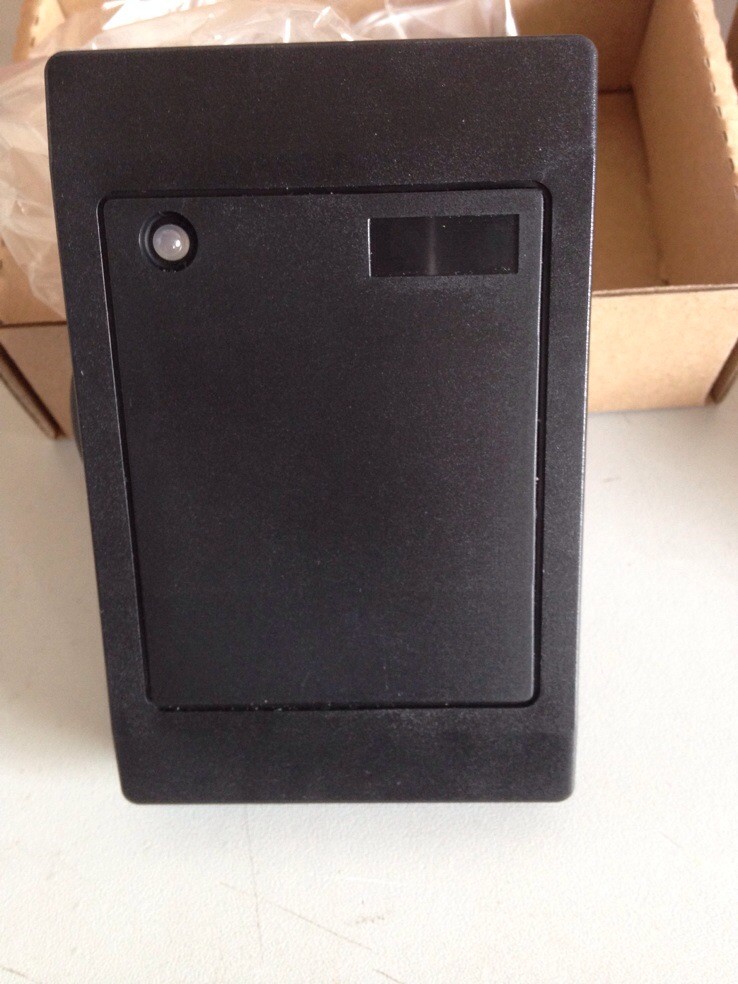

*Black Color
*PVC Case Material (Black Resin for Water-Proof Function)
*124mm*76mm*23.5mm

Installation
Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.
