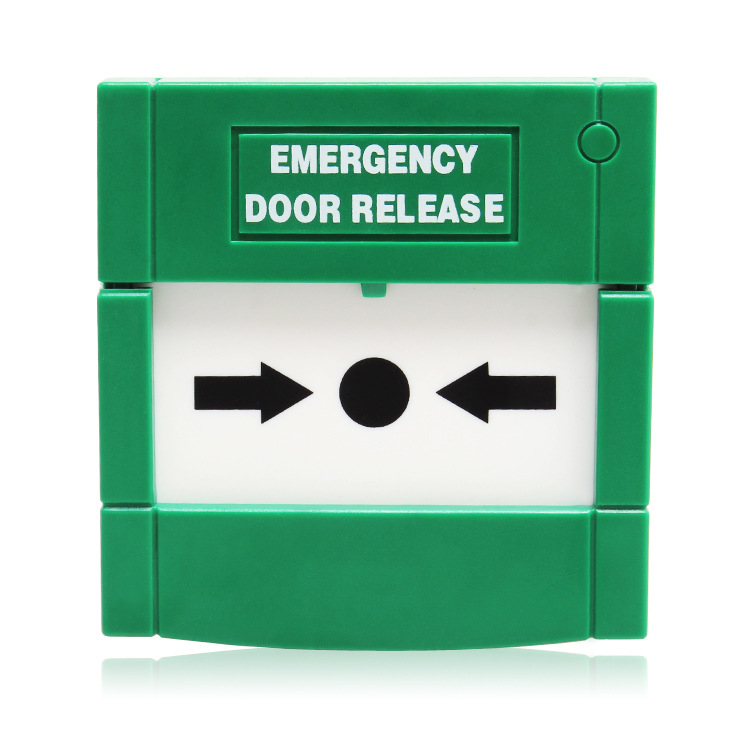

Resettable Break Glass Exit Release
Emergency Door Release: Emergency Glass Break, Use the Fireproof Material, Accord with the Safe Request,Sandblast Panel with Elegant Style, Different colours options for different occasions.
Features:
Emergency Exit Button
Fireproof material
Available in Red, Green, White & Yellow color
Contact Output: NO.&NC.
Current Rating: 3A@36VDC Max
Suitable for Exit door, Emergency door, Escape vent
Technical Specification:
| Product Parameter | Description |
| Dimensions | 86Lx86Wx50H(mm) |
| Standard Structure | Fireproof Material, Easy to install |
| Current Rating | 3A@36VDC Max |
| Output contact | NO/NC/COM |
| Mechanical Lifespan | 100000 tested |
| Feature | Reset automatically,open & close (need order) |
| Suitable for door | Exit Door, Emergence Door |
| Aptional Accessories | Cover |
| Operating temp | 10~+55(14-131F) |
| Operating humidity | 0-95%(relative humidity) |
| Material Selection | Fireproof Material, Sandblast Finished |
| Color | Red,Green,Orange,White |
| Weight | 0.2kg |
