L02B is European Electric Strike Lock with adjustable mode for Fail locked & Fail Unlocked. It works with magnetic force generated by electromagnetic field for locking/unlocking. particularly with short circuit protection. This model has 2 working modes:Power-to-open & Power-to-lock. It is made of high-quality aluminum for high hardness,corrosion resistance & anti-deformation. It is suitable for all types of wooden door, metal door, PVC door etc.
Product Parameter | Parameter Description |
Feature | Fail Safe |
Strike Structure | Stainless Steel |
Holding Force | 500kg |
Voltage | DC12V (Need Order DC24V) |
Current | 400mA |
Feature | Fail Secure(L02BNO); Fail Safe(L02BNC) |
Suitable For: | Wooden Door,Metal Door,PVC Door |
Surface Temperature | Within +20℃ |
Suitable Temperature | -10~+55℃(14-131F) |
Operating Humidity | 0~90%(non-condensing) |
Face plate Housing | Painted Steel |
Function | Built-out MOV |
Weight | 0.6kg |

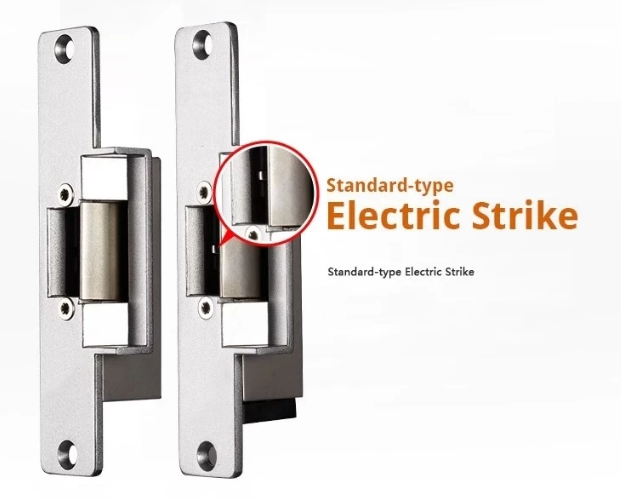

L02B NO/NC is the electric strike with long faceplate. It has two modes: A fail safe electric strike needs power to keep it locked. A fail secure electric strike stays locked even without power. Electric strikes come in many varieties.

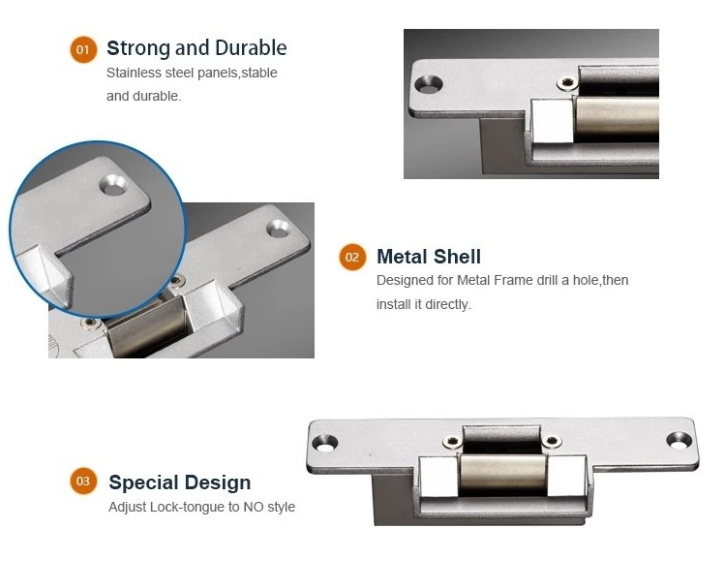

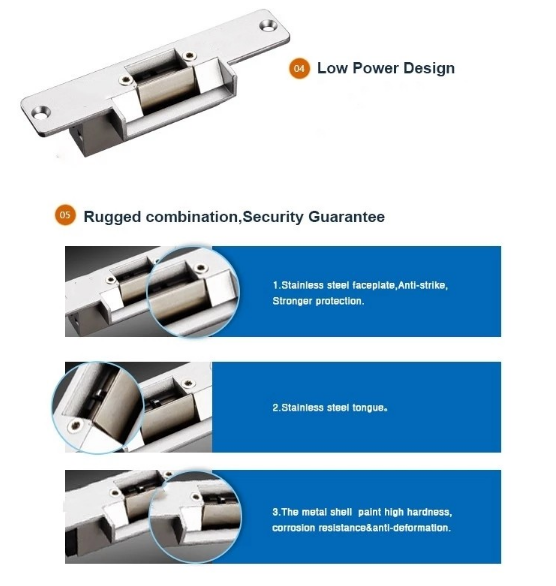

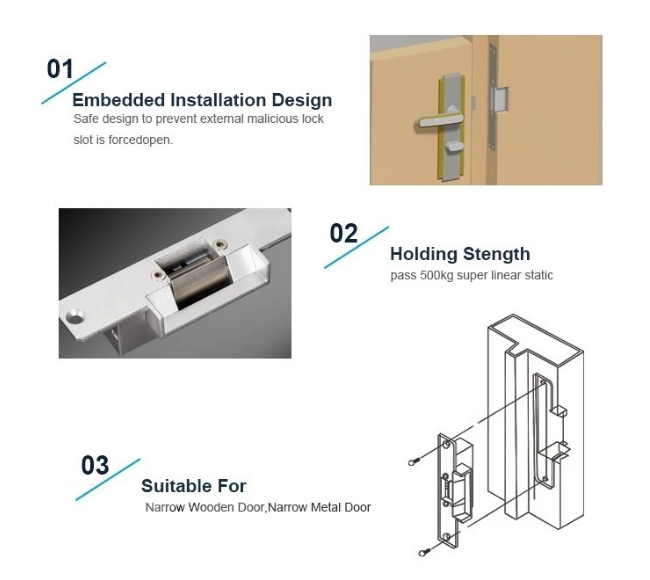

More Features and Functions for This Stainless Steel Electronic Stripe (NC/NO)
