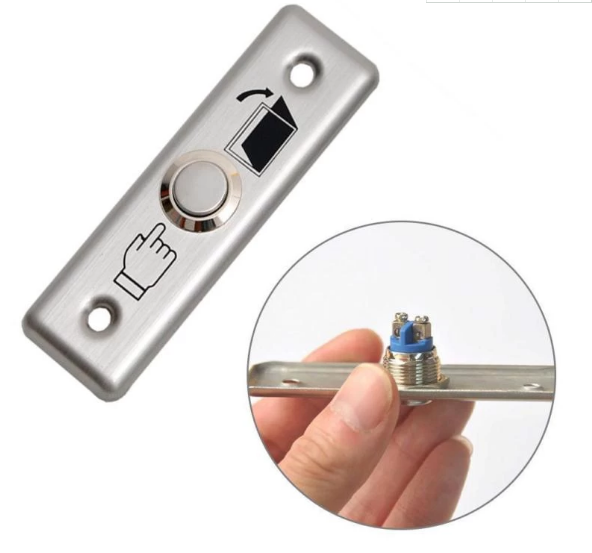

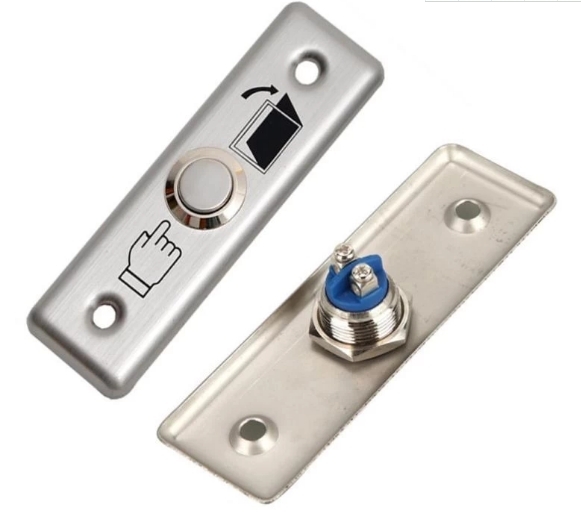

1. Aluminum panel with elegant style
2. Tested on 500,000 cycles
3. Three contact exits, suitable for all types of locks
4. The best choice for access controls in all forms.
access control exit button Technical specifications:
Product parameter | Parameter description |

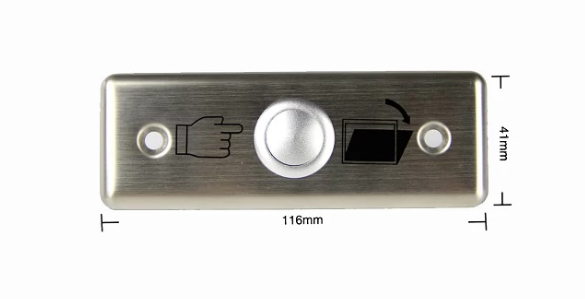

dimensions | 115 * 40 (mm) |
Entrance | DC12V |
Contact evaluation | 12-28V, 3A |
Exit contact | NO / NC / COM |
Mechanical life | 500000 tested |
Suitable for door | Empty door |
Operating temperature | -20 ℃ ~ + 55 ℃ (14-131F) |
Suitable humidity | 0-95% (relative humidity) |
Detection field | 0.1-10cm |
Weight | 0.15kg |

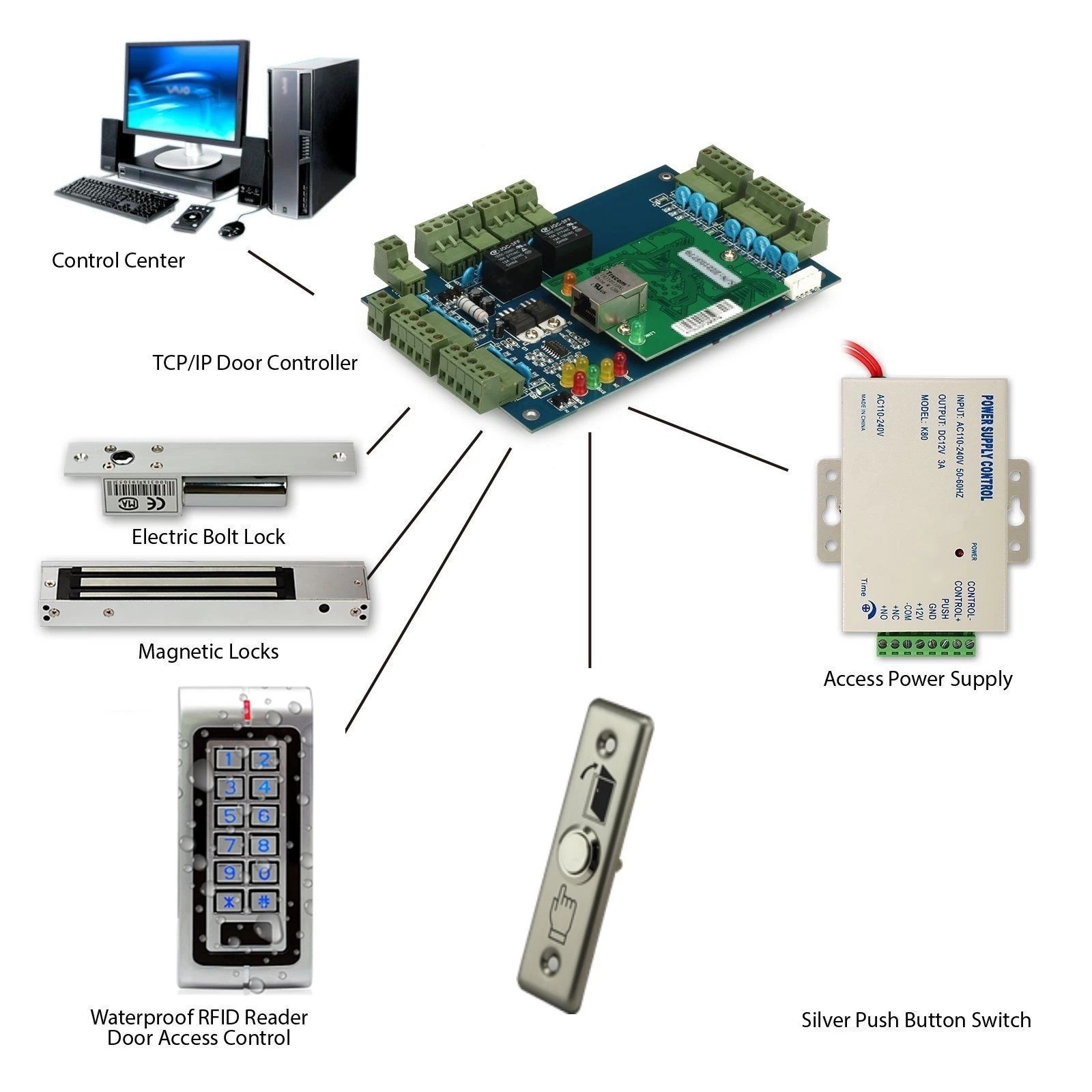

· Application: gate / door / exit / automation control
·· High dry contact capacity of the relay (3A / AC120V, DC30V)
· Normally open / normally closed / common exit
· Twin LED indicators for sensor waiting or approach:
(1) Sensor standby: BLUE LED ON
(2) Visitors who approached the sensor in 10 cm: RED LED ON

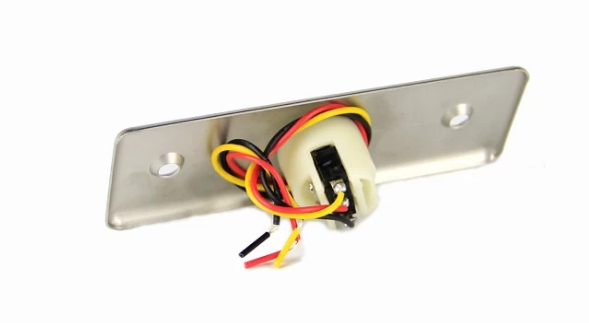

+ 12V | + 12V | NO | COM | NC |
RED | BLACK | YELLOW | WHITE | ORANGE |
