Product parameter | Parameter description |
Template | OP03K |

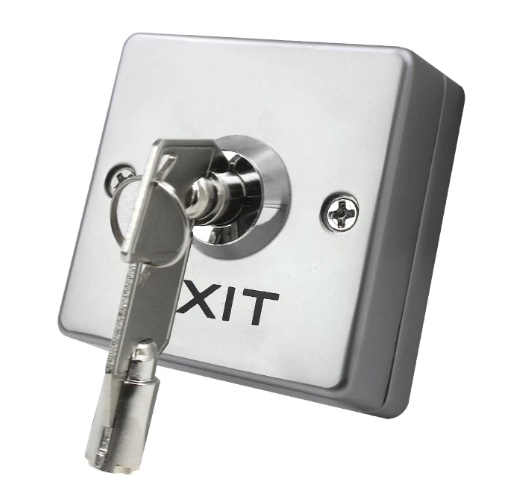

product name | Stainless steel exit button with key |
Dimensions | 91Lx28Wx25H (mm) |
Entrance | DC12V |
Contact evaluation | 3A / 125-250VAC |
Output contact | NO / NC / COM |
Mechanical life | 500000 tests |
Suitable for door | Empty door |
Operating Temp | -20 ℃ ~ + 55 ℃ (14-131F) |
Suitable humidity | 0-95% (relative humidity) |
Unit of weight | 0.06 kg |
Standard package | 100 pieces / carton |
Carton weight | 6.5 KG |
Carton size | 50 * 45 * 28 (cm) |
