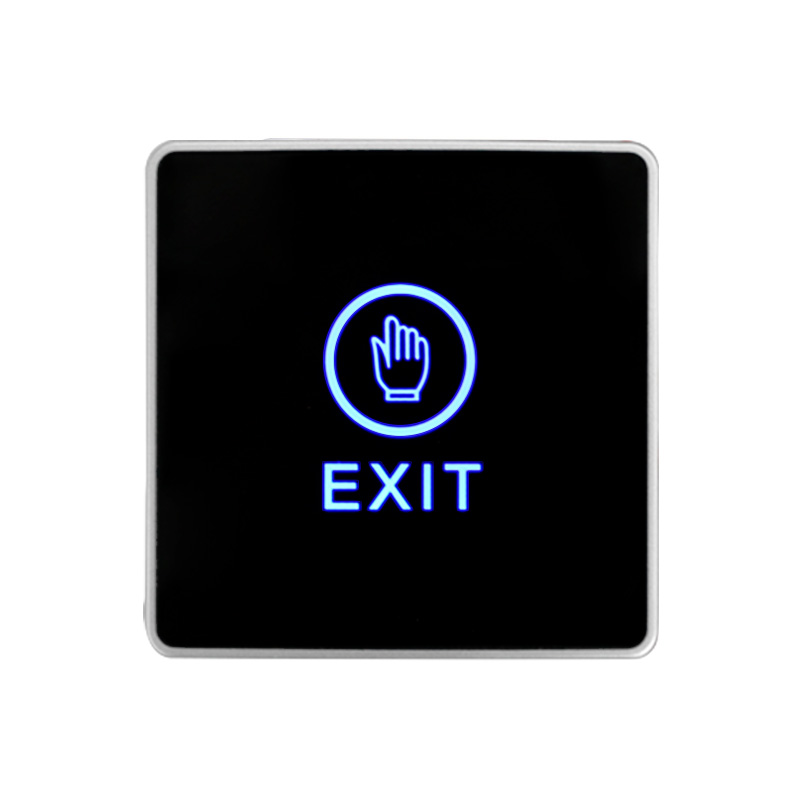

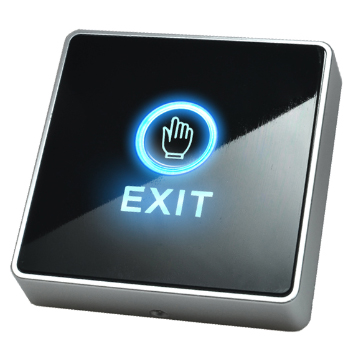

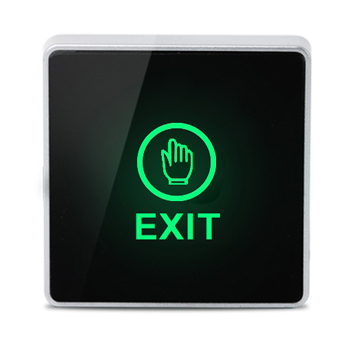

  • Touch Sensor Exit Button for Door Access Control System

Touch Sensor Exit Button for Door Access Control System

Products Mode: OP21D
Touch Sensor Exit Button for Door Access Control System

Touch Sensor Exit Button for Door Access Control System


Specification


ModelTouch Switch
ApplicationGate/Door/Exit/Automation control
Signal LightBlue LED indicator: Power ON(standby)
Red LED indicator: Power ON(sensation)
Input VoltDC 12V
Output ContactNO,NC,COM
Mechanical Life100000 tested
Waterproof protectionIP-55
Detection range0.1 ~ 10 cm
Operating temp-10~+55ºC(14-131F)
Operating Humidity0-95% (non- condensing)
MaterialABS Panel, ABS Button
Dimensions86W*86L*20H(mm)
Weight0.096kg
Packaging

0.096kg/pc, 9kgs/100PCS/CTN, 50*45*24CM/CTN

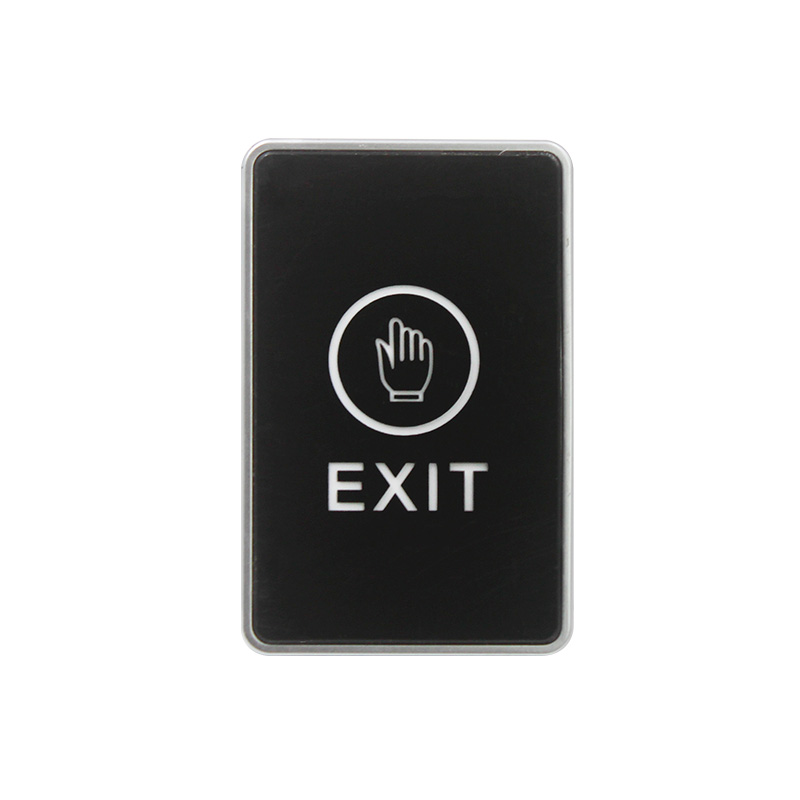

Op21B                                                                                        OP21D


OP21D Touch Sensor Button-blue.jpg
