01A-E.M Desktop USB reader,read EM and mifare cards
USB rfid card reader realize the function of transiting the data from reader to PC via USB Port. The user has no need to download any driver program. Just plug it to USB Port for normal working.
Features
• USB interface, without external power
• Read indication: LED and Beeper
• Main used for: access control, attendance control, identification.
•using software to adjust card number.free driver,support Win11
Specification
Output format | Card number format: 3 bytes Decimal, 4 bytes Decimal, wiegand 26/34, 5 bytes Hexadecimal, etc. |
Operating distance (contact less) | 3-8(CM) |
Temperature | -25~70°C |
Dimensions | 104*68(mm) |
Color | Black |
Support Windows | 98,ME,2000,NT,XP,WIN7,WIN10 |
Power supply | USB port or external power |
About Use

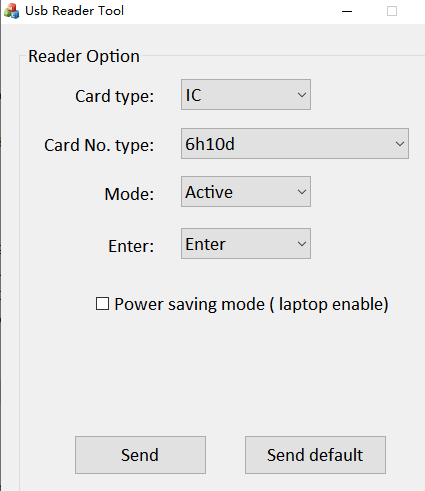

*Connect USB data wire between Device and PC, after 30 seconds system testing period, then punch the card, Card Number will be showed on Screen automatically Lines (No need press Enter for it)
Card type: optional IC(MF),ID(EM);
Card No. type: there are 6h,8h,10h,5h10d, 6h10d,8h10d,10h10d, 2h10d+4h10d,4h10d+4h10d,6h10d last 8 number, 8h10d last 8 number
M8h in reverse,M8h10d in reverse for choice;
Mode:
Active: Device is in a state of working, Passive: Have not swipe card for a long time, device into a state of static;
Enter: enter, No- enter two choice;
Power Saving Mode: Laptops enabled;
Parameter configuration is complete, connect the reader to USB port of PC, single click ‘Send’ button; if you want the device parameters restore to the default parameters, click the ‘Send default’ button
Card number format description:
6H： 3 bytes Hexadecimal 5B93D0
8H： 4 bytes Hexadecimal 485B93D0
10H： 5 bytes Hexadecimal 00485B93D0
5H10D： last 5 digits Decimal card number of Hexadecimal 0000758736
6H10D： 3 bytes Decimal 0006001616
8H10D： 4 bytes Decimal 1213961168
10H10D： 5 bytes Decimal 001213961168
2H10D+4H10D： the last 8 digits card number 091 37840
4H10D+4H10D： Front 2 bytes Decimal+ rear 2 bytes Decimal card number 18523 37840
6H10D last 8 number ： there is no 00 before 3 bytes Decimal card number 06001616
8H10D last 8 number： the last 8 digits number of 4 bytes Decimal 13961168
M8H in reverse： MF 4 bytes Hexadecimal card number from back to front D0935B48
M8H10D in in reverse： MF 4 bytes Decimal card number from back to front 3499318088
