Features:
1. Read 125KHz EM / 13.56MHz Mifare (Factory default: EM 125KHz)
2. Metal backlight and touch screen keypad
3. Contains card reader mode. The transmission format could be adjusted by user.
4. Supports different access ways: Entry by fingerprint + Card + Code or Entry by multi cards
5. Support master added a card and deleted card
6. User capacity: 10,000 users
Specification

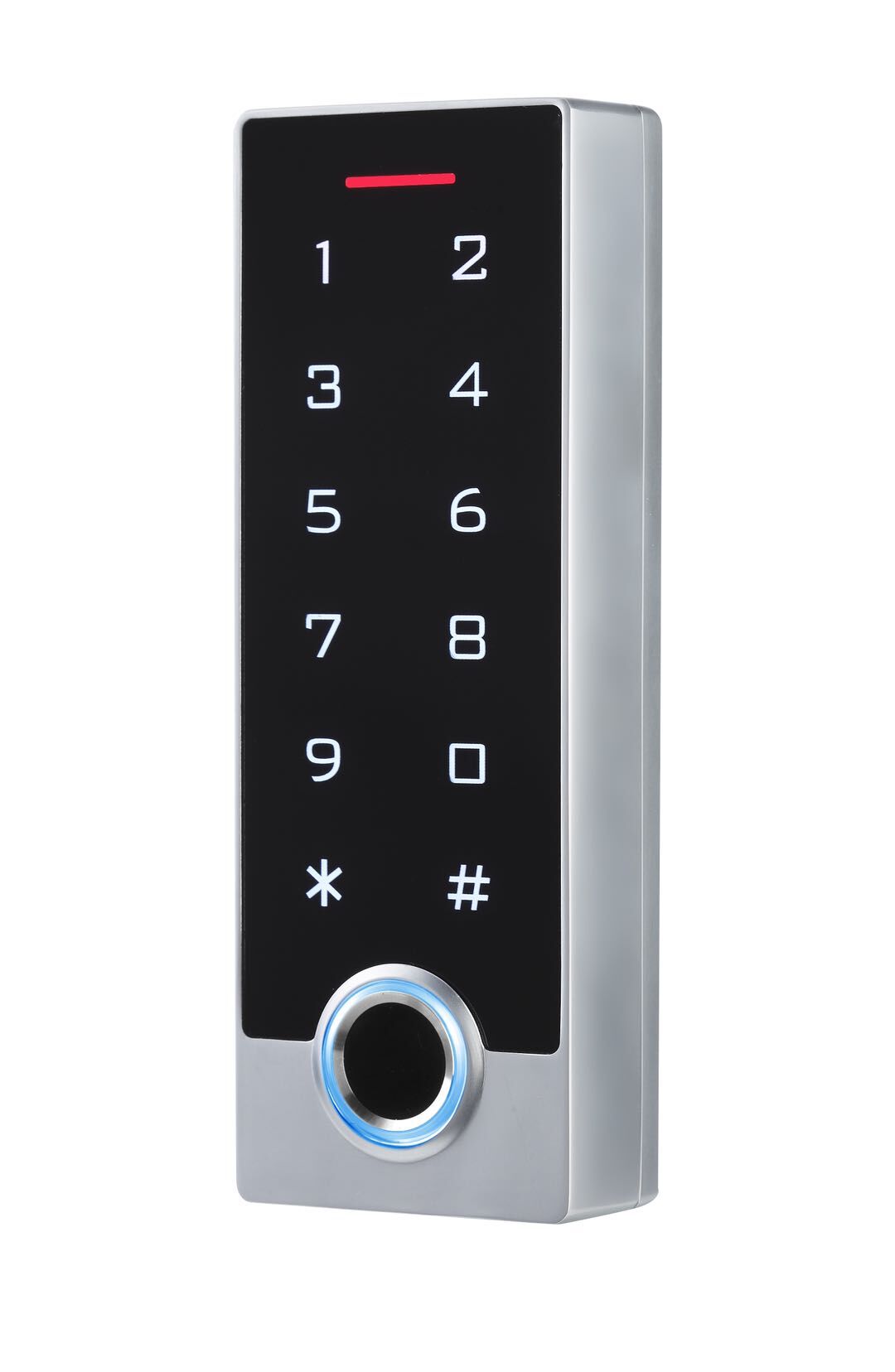

Fingerprint Keypad Touch Access Controller
Card type:EM User Capacity: 10,000 users Fingerprint
Capacity: 300 Operating
Voltage: DC 12-24V
Standby Current: ≤35mA Operation
Current: ≤100mA Operating
Temperature: -40℃~60℃
Operating Humidity: 0%~95%
Waterproof: IP68
Dimensions: 139x70x22mm
Access ways: Fingerprint, card, code, or multiple combination method to access

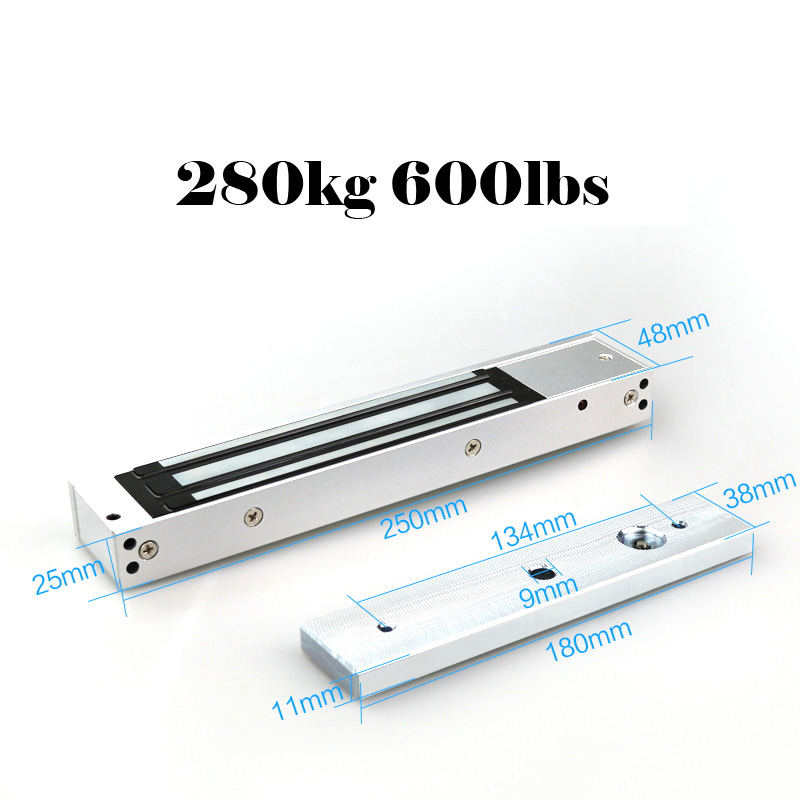

280kg Magnetic Lock
Material: Zinc Alloy
Power supply voltage: 12V, or 24V for optional
Holding Force: 600lbs
Features: LED indicate (red indicate the door is unlock, door is lock there is no light)
Suitable For: Wooden door , Glass door ,Metal door , Fireproof door Surface
Temperature: ≤+20℃ Suitable
Temperature: 0~+55°C
Operating Humidity: 0~90%(non-condensing)

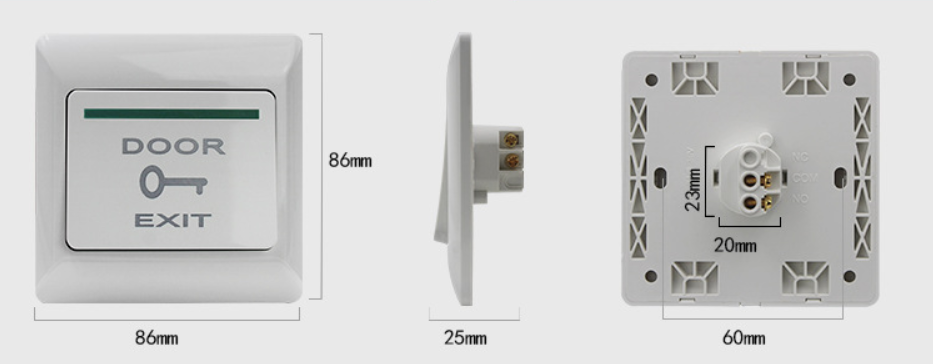

Access Control Exit button
Door Exit Button Switch Material: Fireproof PVC Material
Faceplate Product size: 86Lx86Wx20H(mm)
Power supply voltage: 12VDC Contact
output: NO/NC/COM /LED
Maximum current: 3A / 36DC
Endurance test: 1000000 tested
Installation: hollow door frame

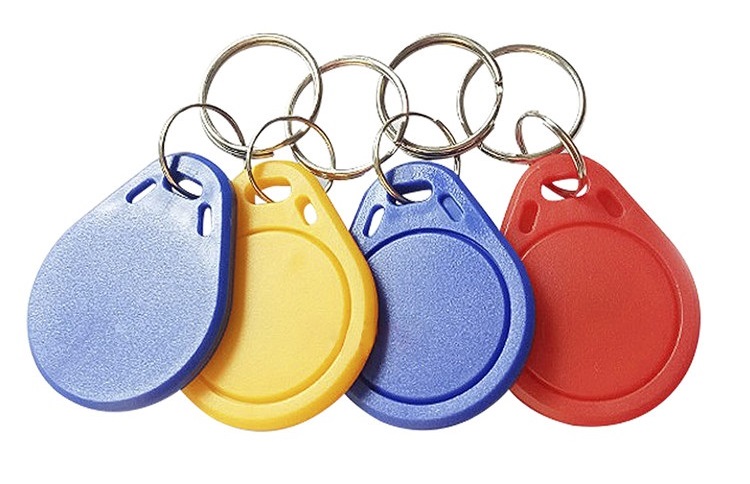

Access Control Keytag
Color: Blue,Yellow,Red,Orange,Black,Grey,White or customized
Function: Build RFID chip inside, read/write Memory: 64bits or depends on different chip Operating
Frequency: 125khz,13.56MHz,or according to the chip Chip: TK4100 or others
Resistance: IP67
Certificate:ISO,ROHS,FCC,CE Data
Transmission Speed: 106 Kboud Read Distance: 1-30mm Read/Write time: 1-3(ms) Read Times: >100 000 Data
Retention: >10 years Optional
Technology: 1) Silk-screen Printing Logo/image/graphic... 2) Laser engraving serial numbers 3) Chip encoding
