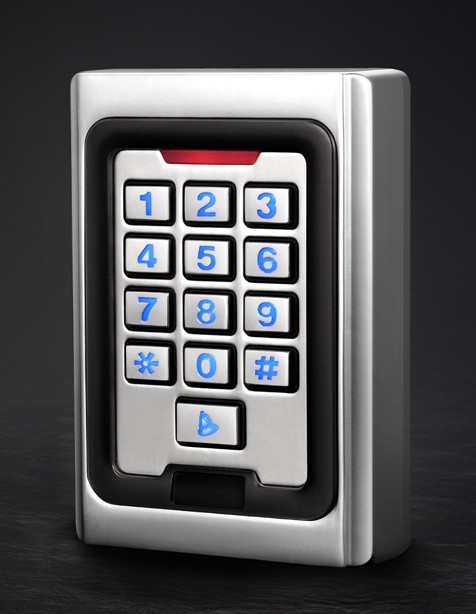

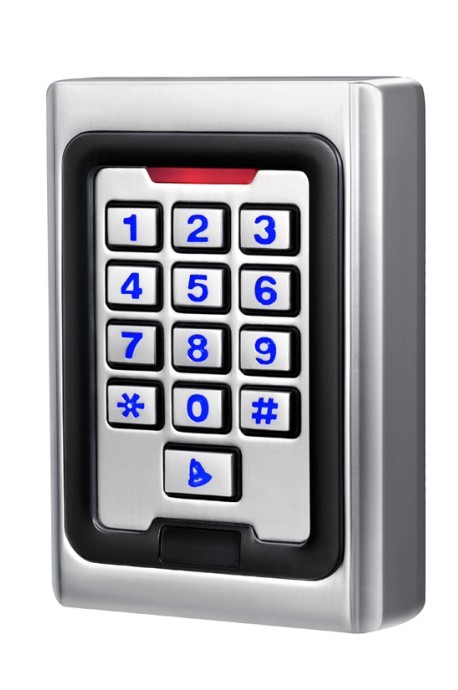

Cheap Single door access controller

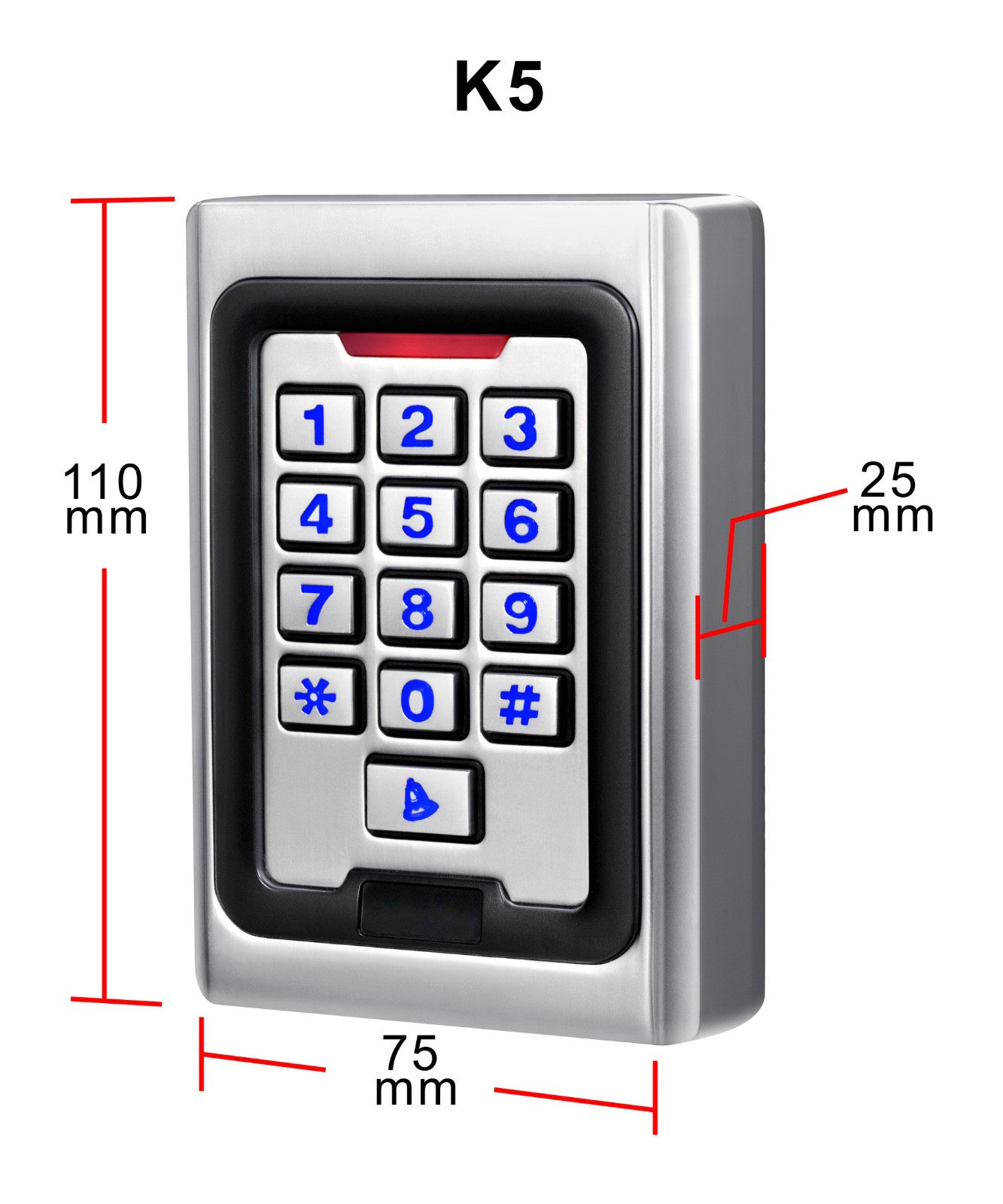

Products Mode: K5
Cheap Single door access controller

Cheap Single door access controller


     Low power consumption: less than 30mA standby current
     Luminous keyboard  for convenient use at night
     User capacity: support 2,000 users
     Independent password: can use password which irrelevant with the card to open the door
     User modification password: Users can revise the door password
     Search speed: charge to open the door time less than 0.1 S.
     Output short circuit protection: electric lock or alarm output circuit within 100 μS when shut down automatically output
    Wiegand output: With Wiegand output interface,Wg26 card number or Wg4 buttons output
    Usable keyboard delete card number: After card is lost, usable keyboard delete card, Thoroughly eliminate safety lapses
    The demolition alarm: Illegal dismantling machine, built-in alarm sound buzzer
    The bell button and interface: key and circuit segregation, external any the doorbell.

Technical parameters
    Work Voltage:AC&DC9-28V
    Static Current:≤30mA
    Reading Range:3~8cm
    Capacity: 2000 users
    Ambient Temperature:-25℃~60℃
    Ambient Humidity:10%~90%
    Electricity lock output:≤3A
    Alarm output:≤20A
    Output short circuit protection time:≤100μS
    Open time:0 ~ 99 seconds (adjustable)
