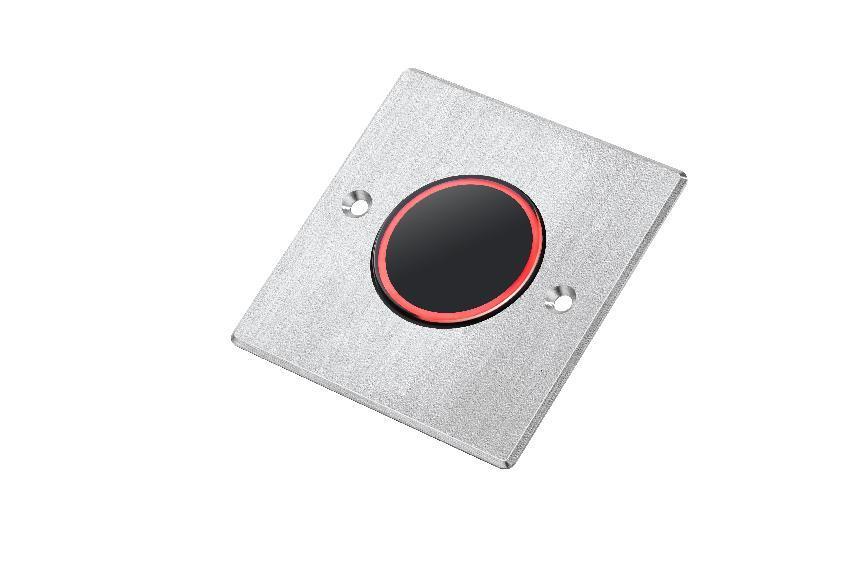

Embedded Flush mount Stainless steel case RFID reader

Products Mode: ER50

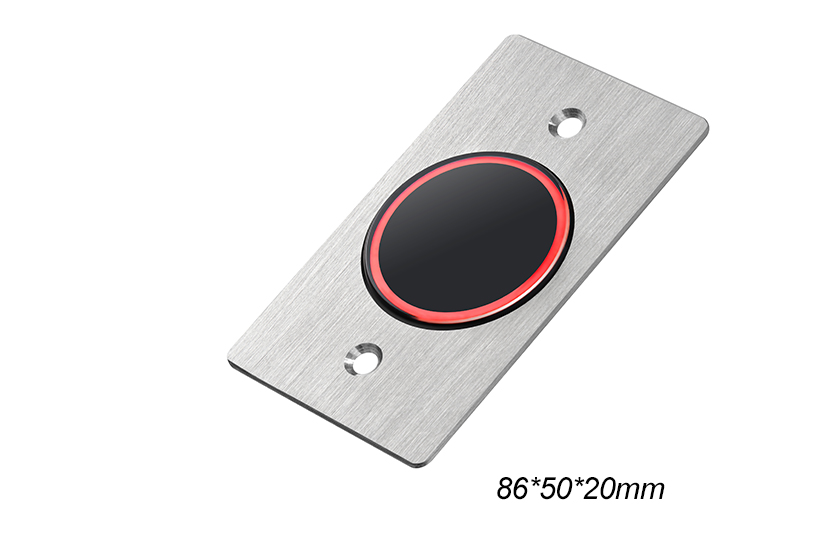

size: 86*50*20

Features


*Metal shell, anti-vandal
*Very low power consumption,standby current less than 30mA
*WG 26 output
*Fast Search speed : time between reading card and opening the door is less than 0.1S

*Size:86*50*20


Card type:EM/MF

waterproof degree:IP68

operating voltage:DC9-12V

Standby currrent:<30mA

Reading Distance:2-5cm

Operating Humidity:-45-60

Operating Humidity:10%-90%RH

searching speed:less than 0.1S between reading card and opening the door
