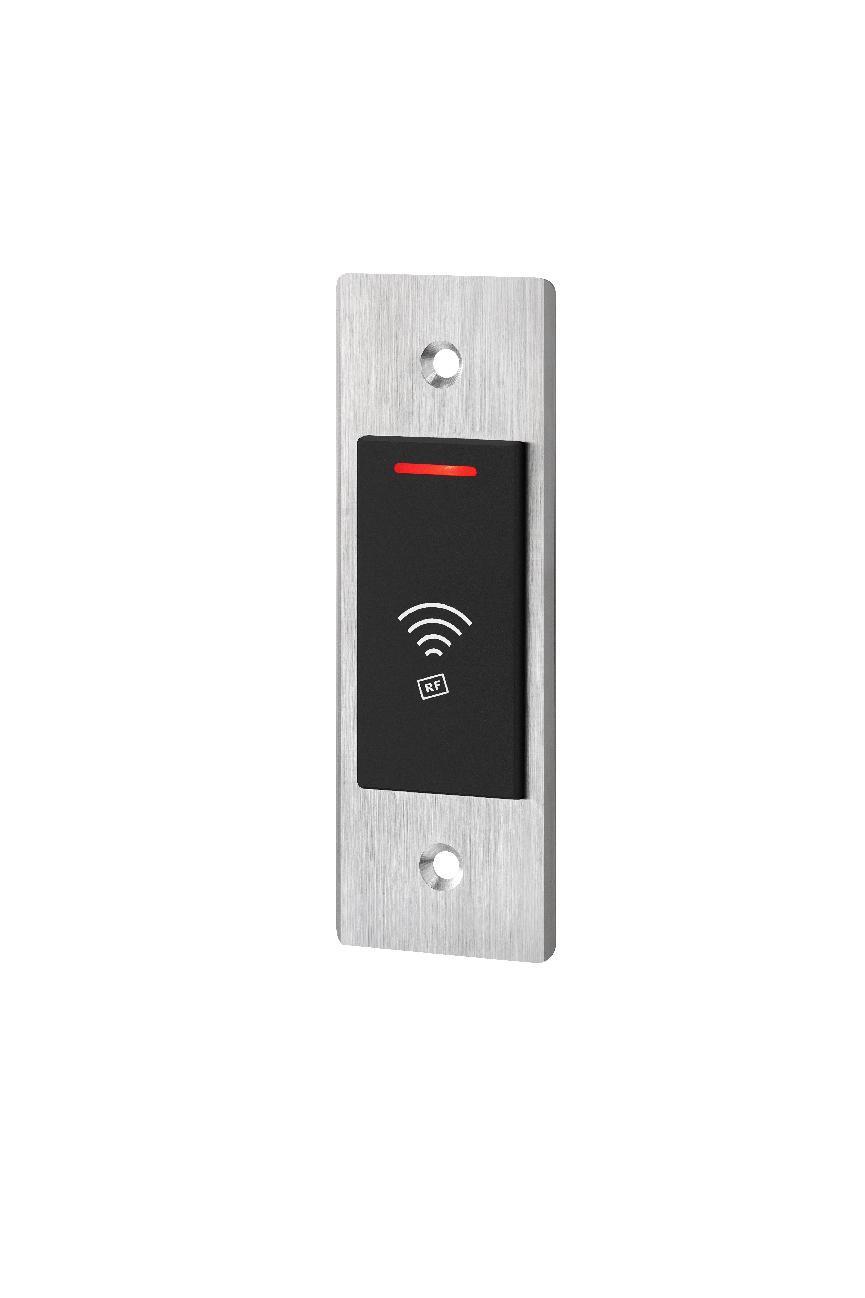

This series of product is a new generation of multifuncational standalone access control.
It adopts new ARM core 32-bit microprocessor design,which is powerful,stable and reliable,
It includes reader mode and standalone access cotrol mode etc...
It is widely applied to different occasions,such as offices,residential communities,villa,bank and prison etc.
Card Type | EM/MF |
Keypad Characteristic | operate by infrared remote control |
output way | contains reader mode , the transmission format could be adjusted by users |
admin card | support admin add card,admin delete card and setting card |
user capacity | 10000 card users |
unlocking signal | The unlocking signal adopts NO,NC,COM output of relay |
Operating Voltage | DC12-24V |
operation Current | <100mA |
Standby Current | <35mA |
operating Temperature | -20-60 |
operating Humidity | 0%-95% |
Maximum Rated Current | <1A |
Door Relay Time | 0-99s(adjustable) |
