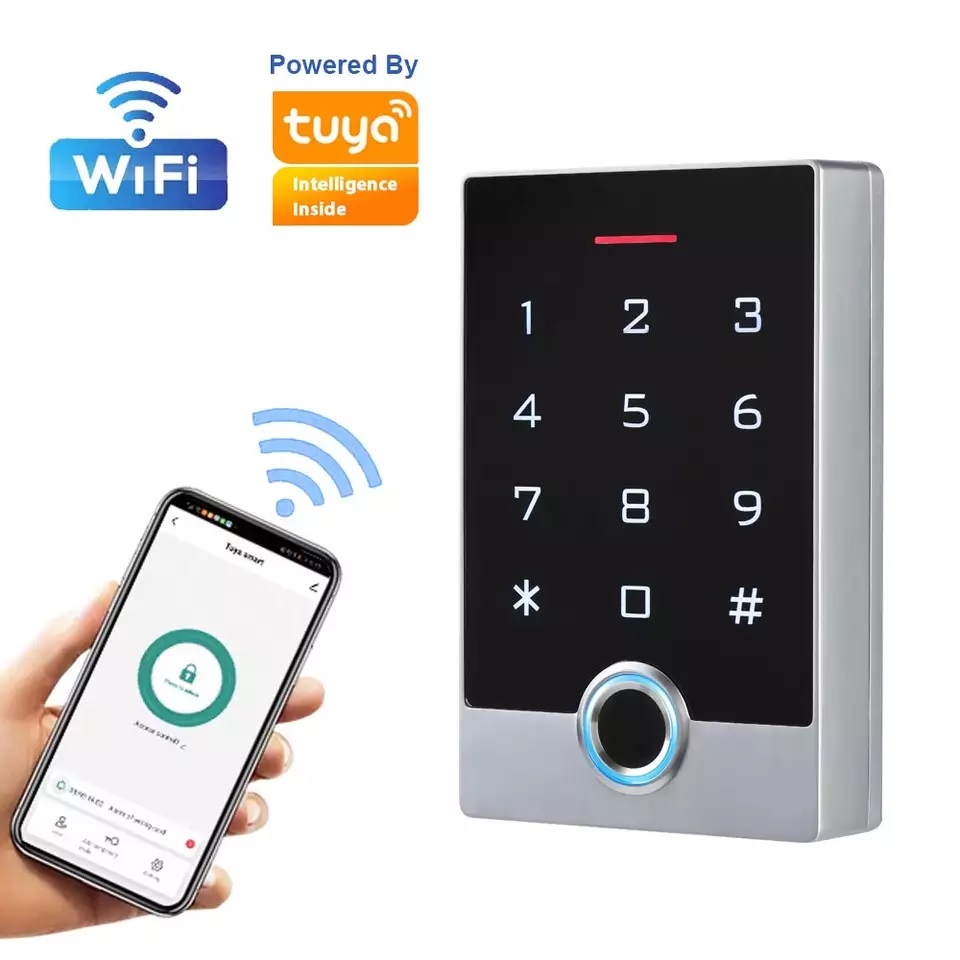

Metal & IP68 Waterproof Fingerprint Standalone Access Controller
Multi-function standalone access control.
It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable.
It includes card reader mode and standalone access control mode etc..
Its widely applied to different occasions, such as offices, residential communities, villa, bank, and prison, etc.
Read 125KHz EM / 13.56MHz Mifare(Factory default: EM 125KHz)
Metal backlight keypad
Contains card reader mode. The transmission format could be adjusted by user.
Supports different access ways: Entry by Card + Code or Entry by multi cards
Support master added card and deleted card
User capacity: 10,000 users
Product Parameter | Parameter Description |
Product Name | Metal Fingerprint Access Control |
Card type | EM is standard/ Mifare for Optional |
User Capacity | 10,000 users |
Fingerprint Capacity | 300 |
Keypad Characteristic | Metal backlight keypad |
Operating Voltage | DC 12-24V |
Standby Current | <=35ma |
Operating Current | <=100ma |
Operating Temperature | -40℃ ~ 60℃ |
Operating Humidity | 0%~95% |
Dimensions | 135*47*23mm |
Access ways | Fingerprint, card, code, or multiple |
combination methods |
