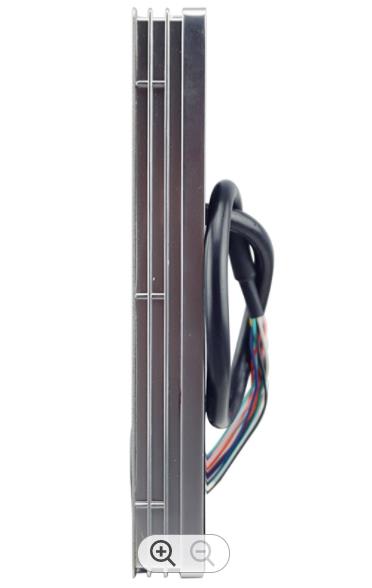

| Product name: | IP67 waterproof Slim metal RFID 125Khz/13.56Mhz access control supports Wiegand input and output touch panel keyboard | |
| Model: | F-TC | F-TD |
| RFID frequency: | IC(13.56Mhz) | ID(125Khz) |
| Reading distance: | 0~3cm | |
| User capacity: | 5000 | |
| Power supply: | DC 12V | |
| Working mode: | Access control mode/ WG card reader mode(adjustable) | |
| Working current: | ≤200mA | |
| Static current: | ≤150mA | |
| Door open time: | 0~99s(adjustable) | |
| Working temperature: | -20℃~60℃ | |
| Working humidity: | 20%~80% | |
| Storage temperature: | -20℃~60℃ | |
| Dimension: | 160x50x20.5mm (error ± 3mm) | |
| Color: | Silver | |
| Weight: | 0.45kg | |
