Magnetic Lock 12V Power Supply Exit Button Full Set Access Control Kit Door Entry System

Products Mode: ACkit
Material: Aluminum,ABS,MDF
Size: Custom Size
Colors: Black, Silver, Customized
Corner: Metal corner / Plastic corner
Handle: Metal Handle / Plastic Handle
Lining: EVA / Fabric /Nylon/ Velvet
Port: Ningbo, Shanghai
Min. Order: 50 Pieces
Delivery: 30 days after confirmation
Supply Ability: 50000 Piece/Pieces per Month
Payment: 30% Deposit by T/T and the balance before shipment or against the copy B/L
Shipping: EMS, FedEx, DHL, UPS, By Air & By Sea

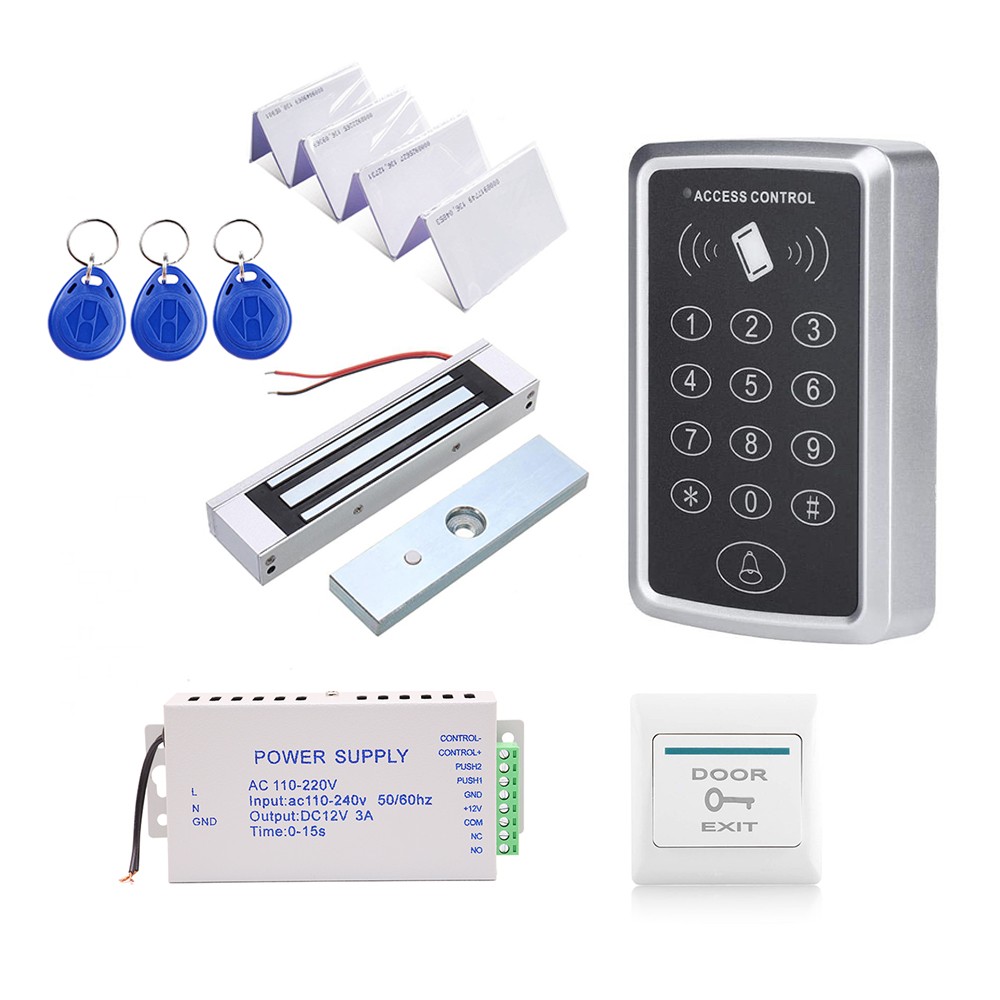

Stand Alone Access Control System Kit 180kg Electric Magnetic Lock 12V Power Supply Exit Button Full Set Door Open Entry System

Support one-door
Support 1000 users, support RFID card, password, card+password, total three open door mode
Sensitively and response quickly
Build in RFID reader, contactless RFID transponder technology
Can be used as a stand alone keypad.Doesn't need to connect on the computer,can works alone


Access Control Keypad

Support Card, password, Card + password. You can open the door with these three modes.
Full programming from the keypad, support add/delete cards, set password, etc. With door bell button.
Compatible Cards: EM or EM compatible card
Working Frequency: 125KHz
Working Voltage: DC12V
Working Current: <100mA
Working Temperature: -10℃ to +70
Reading Distance: 0-10cm
Relative Humidity: 20%-90%

Electronic Magnetic Lock

1. Corrosion resistant. Aluminum shell adopts high strength material, with hard anodised processing.
2. Use magnetic power to lock the door, 180kgs (350lbs) holding force.
3. Built-in reverse current protection device (MOV).
4. Can be opened by push button, remote controller, etc.
5. Fit for wooden door, metal door, glass door, fireproof door, etc.
6. Material: Aluminum Alloy
7. Lock size: 38x20x170mm
8. Plate size: 33x10x130mm
9. Pull force: 180KG(350lbs)
10. Working mode: power-on to lock


DC 12V 5A Power Supply

1. AC input: Standard AC100V-240V 50-60HZ
2. DC output: Stabilivolt DC12V
3. Package Dimensions: 117 x 68 x 32mm
4. Remote control function:Yes
5. Dimension: 138X67X37mm( L/W/H )

125Khz RFID Key Cards

Using ABS flame retardant material, fire prevention, impact resistance, high temperature resistance.
Read speed is fast, powerful and practical.
Only the key finished programed with our instruction then can be open the door.
With ABS high quality.
Each one has unique ID number on it.
Reading Range: 1-10cm.
