Metal Access Controller

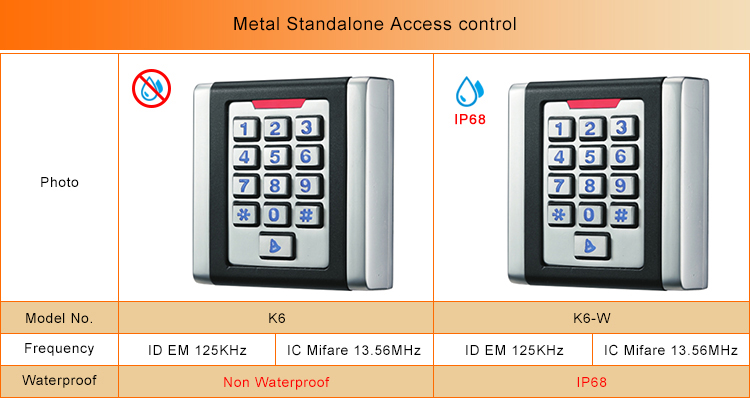

Products Mode: K6
Keypad Metal Access Controller

Keypad Metal  Access ControllerProduct Specification

Waterproof rate: IP68

Metal case, anti-vandal

Multi-function standalone access controller and reader,

can be used as WG26 reader

Capacity: 2000 cards/ codes

Three accesses: card, pin, card+pin

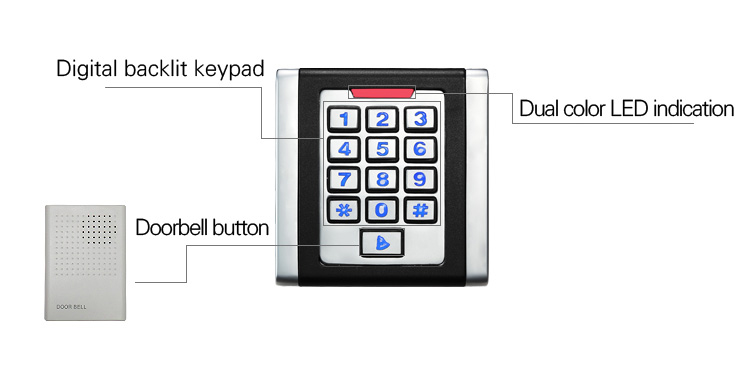

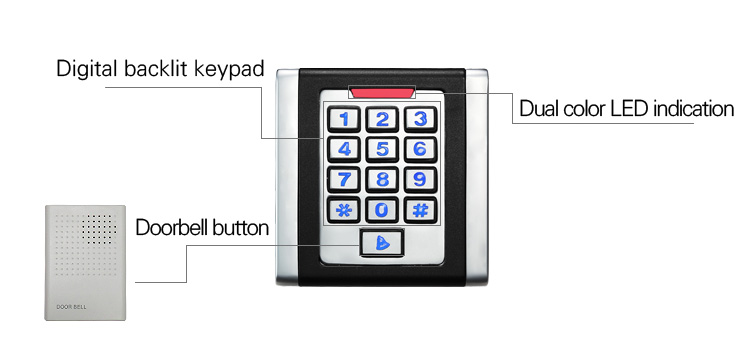

Digital backlit keypad

WG interface: WG26 Input/output

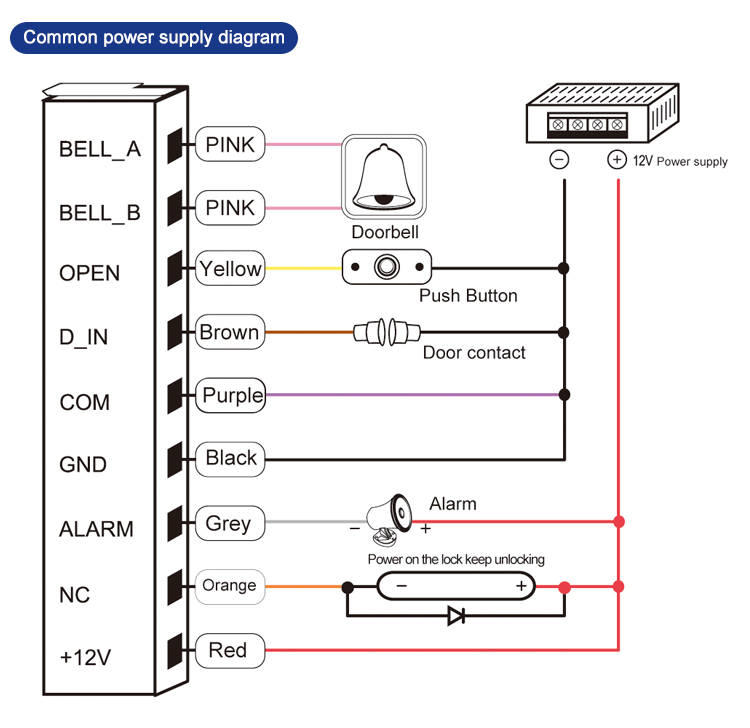

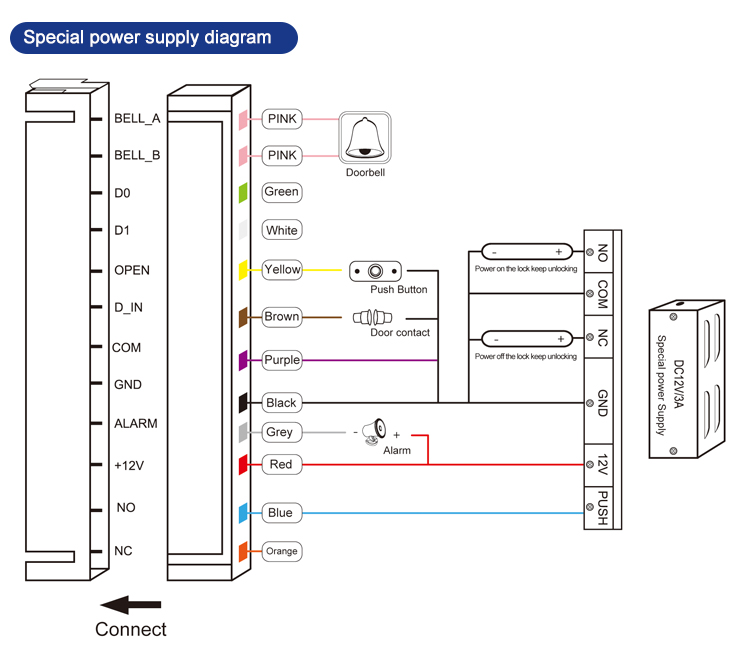

Doorbell support and interface: button and circuit segregate,

Any doorbell can be connected

Product ParameterParameter Description
Card type:EM/MFWaterproof degree:IP68
Working voltage: DC12V±10%Static electricity: ≤30mA
Read Range:5-8cmAmbient temperature: -45 ℃ ~ 60 ℃
Humidity: 10% to 90%Electric lock output: ≤3A
Alarm output: ≤20AShort-circuitProtect: ≤100μS
Door Opening Time:0-99s(Adjustable)Dimensions:  86 *86 * 23mm
