Metal Door Access Controller

Products Mode: H3

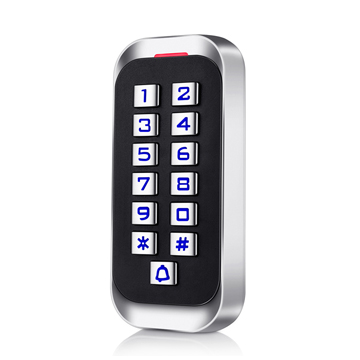

Metal Door Access Controller

3Metal Door  Access Controller

Product Specification

Waterproof rate: IP68

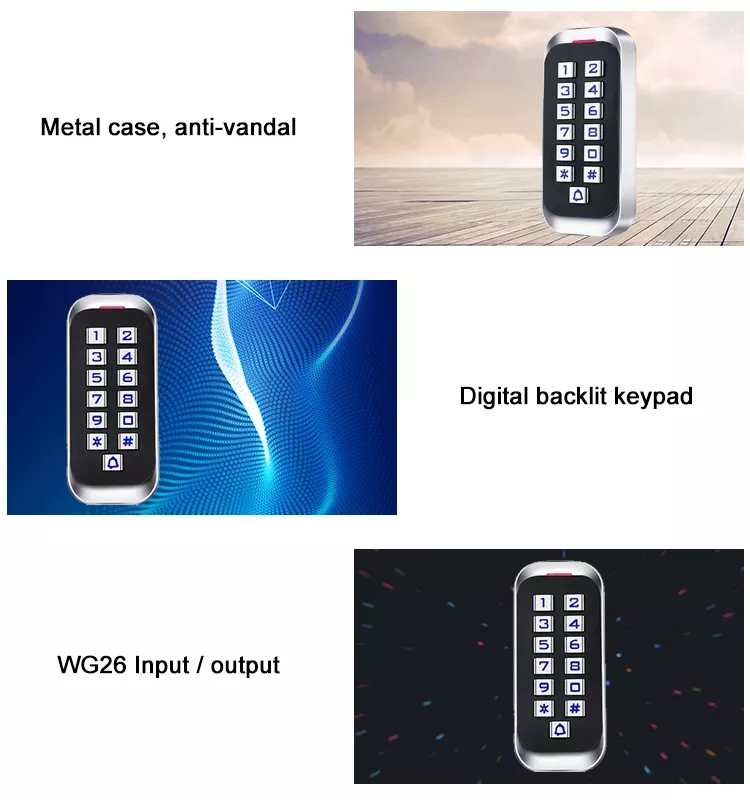

Metal case, anti-vandal

Multi-function standalone access controller and reader,

can be used as WG26 reader

Capacity: 2000 cards/ codes

Three accesses: card, pin, card+pin

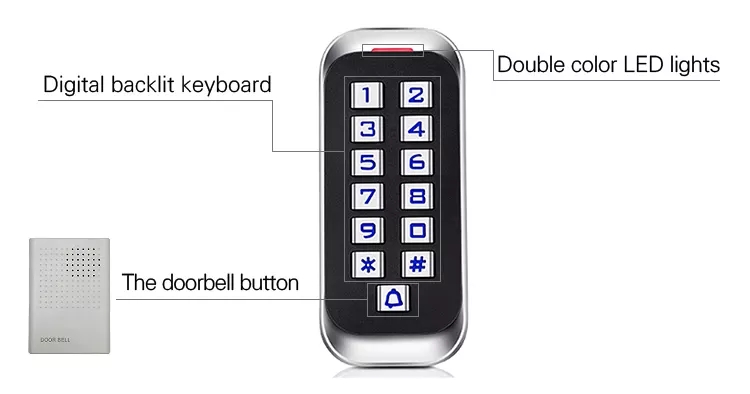

Digital backlit keypad

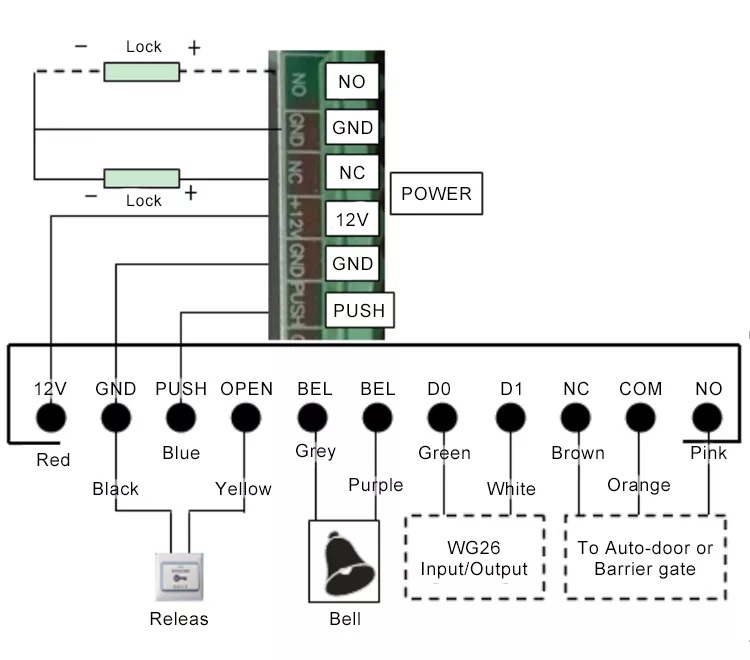

WG interface: WG26 Input/output

Doorbell support and interface: button and circuit segregate,

Any doorbell can be connected


Products specification

Card type:EM/MF

Static electricity: ≤30mA

Working voltage: DC12V±10%

Ambient temperature: -45 ℃ ~ 60 ℃

Reading Range:3-6cm

Electric lock output: ≤3A

Humidity: 10% to 90% RH

Short-circuit Protect: ≤100μS

Door Opening Time:0-99s(Adjustable)

Dimensions: 133*59*26mm
