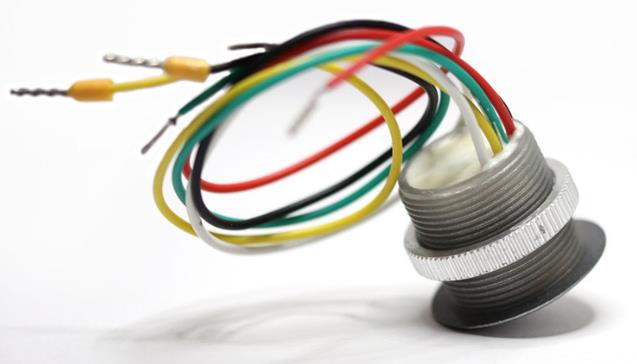

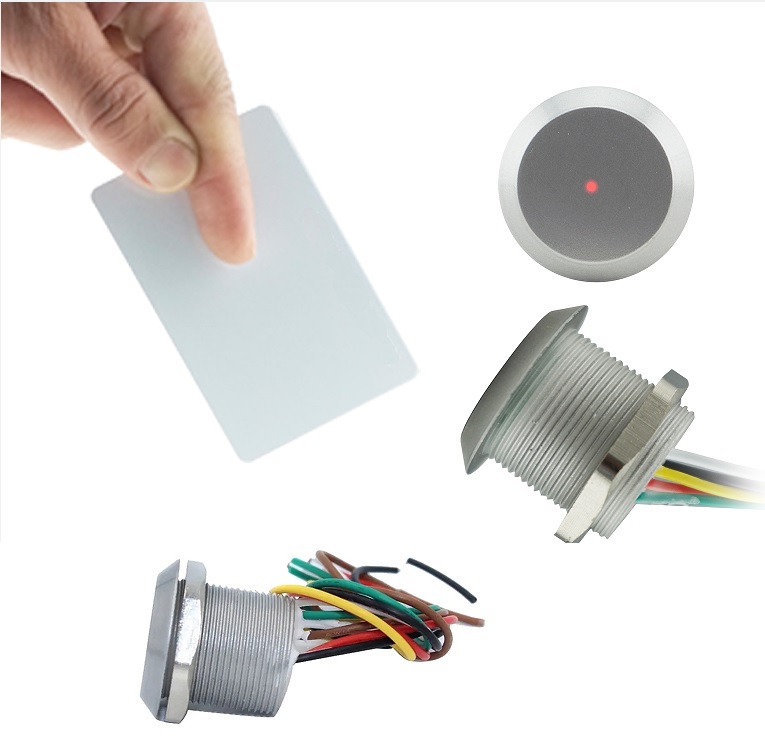

Frequency :125Khz
Card reading type:EM Mifare
Reading range:2-6cm
Output interface:Wiegand 26
Input Voltage:8-18V
Current:35mA
Indicator:Red color light
Material: Polyamide
Size(mm):Diameter 25MM,height 22MM
Converter is designed to operate in the absence of:
Atmospheric fallouts, sunshine and humidity condensation.
Operating conditions
Temperature from -30 ° C to +40 ° C;
Relative humidity less than 98% (at 25 ° C).
When there are changes in maintenance conditions, the specification of product may differ
from the nominal values.

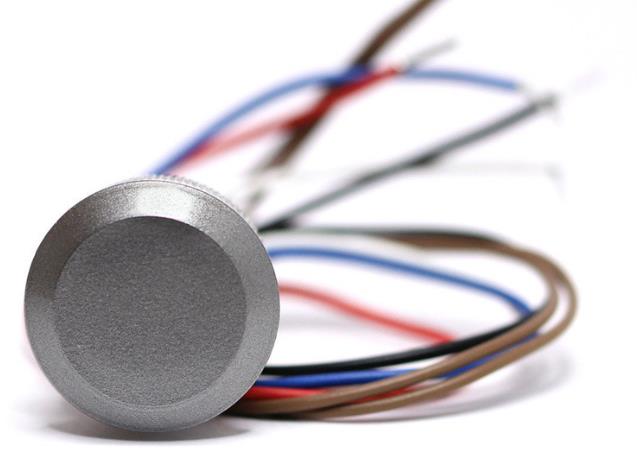

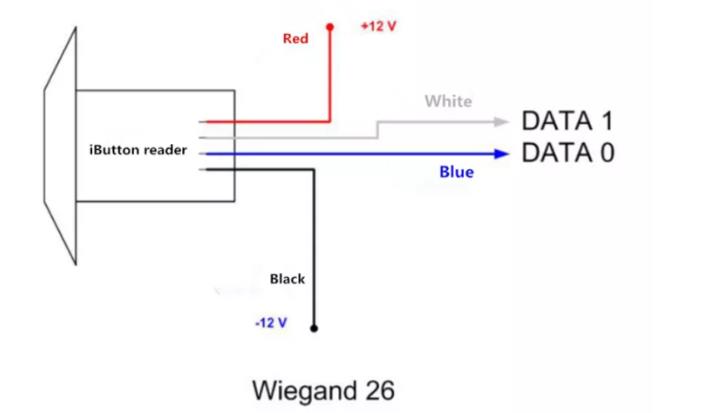

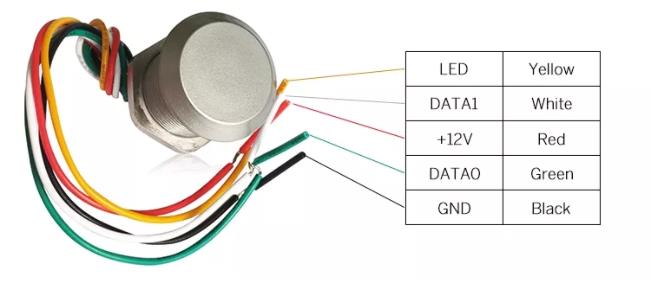

Wire diagram
Red: +12VDC
Black :GND
White: data 1
Blue : data 0
Brown : LED

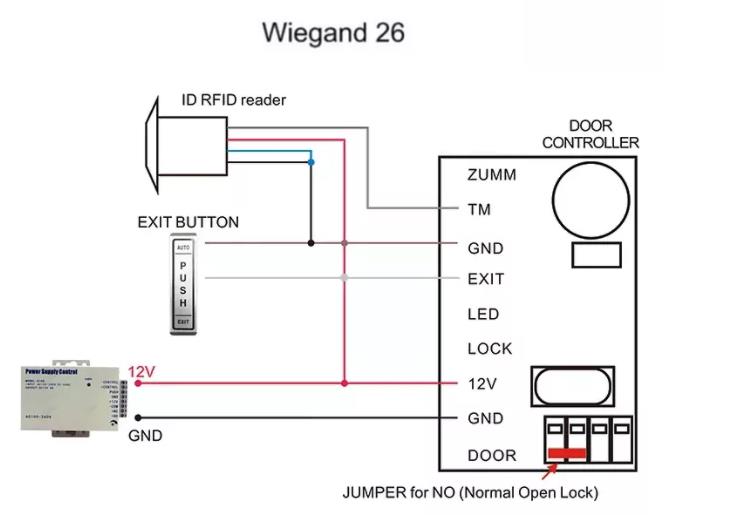

Notice
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires
Packing list for RFID Reader
1* RFID Reader

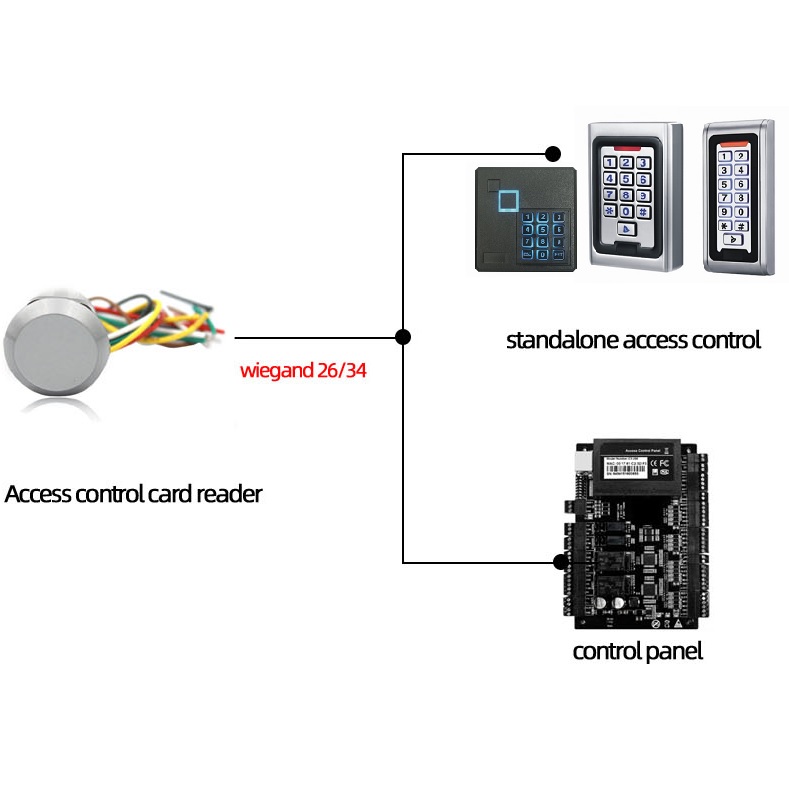

Application: access control system
Certification:CE,FCC,ROHS
