Standalone Access Controller Professional Access Control Factory

Products Mode: EK-12

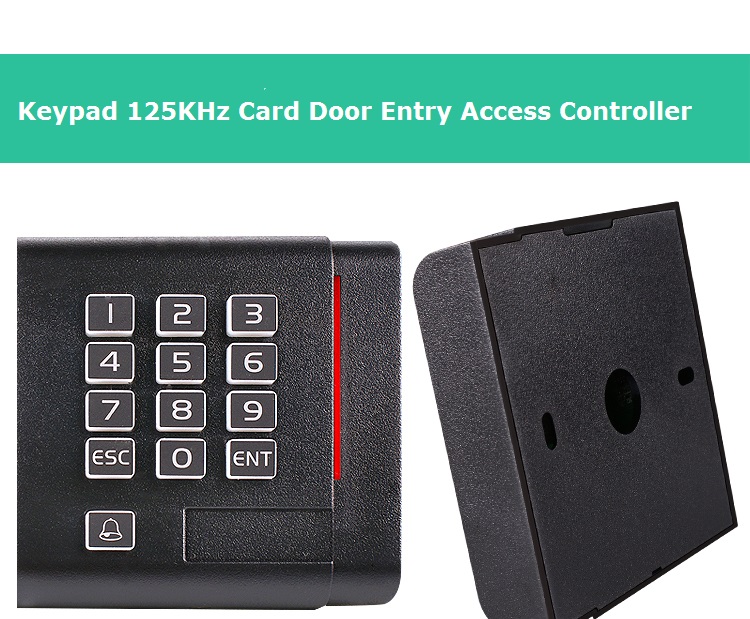

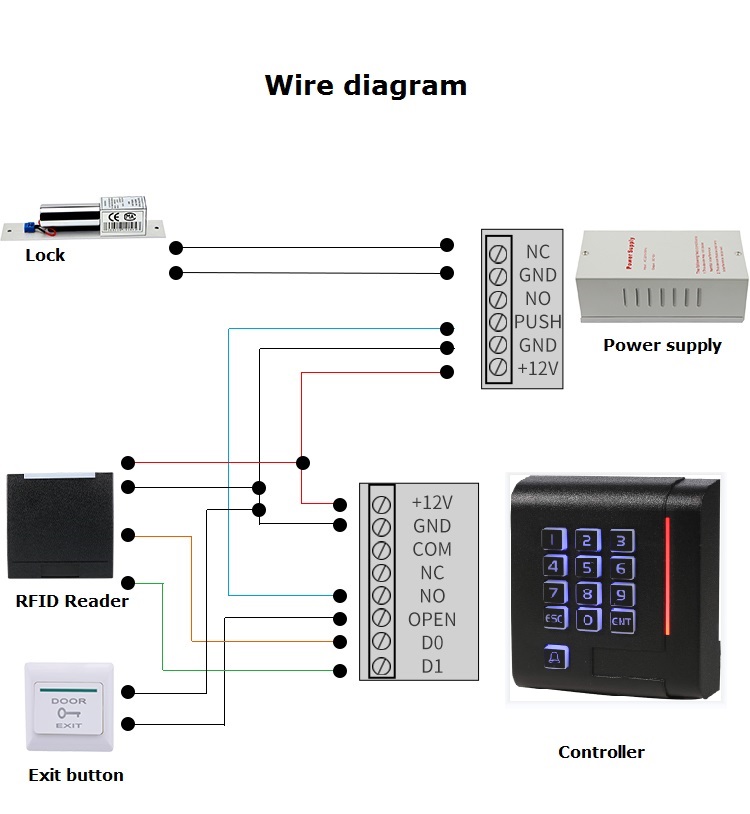

Keypad Access Controller is designed for access control system. It can be connected with electric lock, power supply, exit button and door bell for setting up a standalone single door access control system.

Features:

    Standalone, single door controller
    Low Priced, connect an electric strike and power supply and you're done
    No Control Panels - Standalone Access Controller
    Easy and simple to use
    Has a flat back so it's easy to install on any flat surface
    Operating Mode: Card only, Keypad only, Card with Keypad.
    Card capacity is 2000 users.
    Programmable door release time: 1~250 seconds
    Access code can be added or deleted by keypad management.
    Built-in electric buzzer for audible card entry and programming.
    Data is protected even after power failure.
    Machined housing in high durable.
    MF IC /EM-ID thin card or keyfob optional

125Khz RFID Keyboard Access Control System Proximity Access Control125Khz RFID Keyboard Access Control System Proximity Access Control125Khz RFID Keyboard Access Control System Proximity Access Control125Khz RFID Keyboard Access Control System Proximity Access Control125Khz RFID Keyboard Access Control System Proximity Access Control125Khz RFID Keyboard Access Control System Proximity Access Control

Product Parameter

Parameter Description

Power Supply:

12VDC + 10%

Doorbell button:

1

Interface to an alarm

1

Unlock relay

Input & Output

Electric lock output

Max 3A

Compatible Cards

125KHz EM standard card

Card Reading Distance


1~5cm

Electric locking interface


Relay output or input of optional

Password

4 digit PIN code

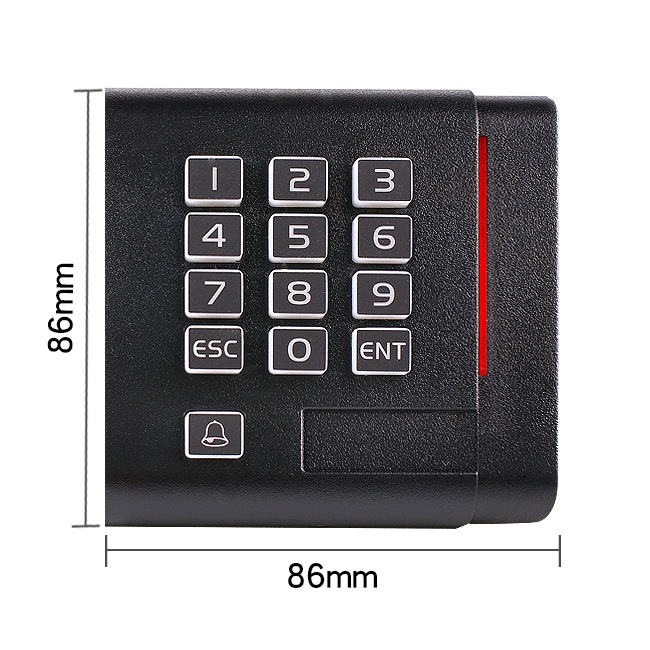

Dimension (W*H*D)mm


86*86*21mm
