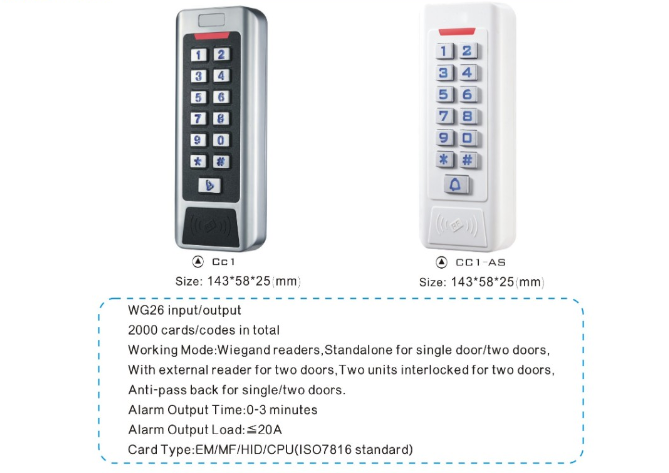

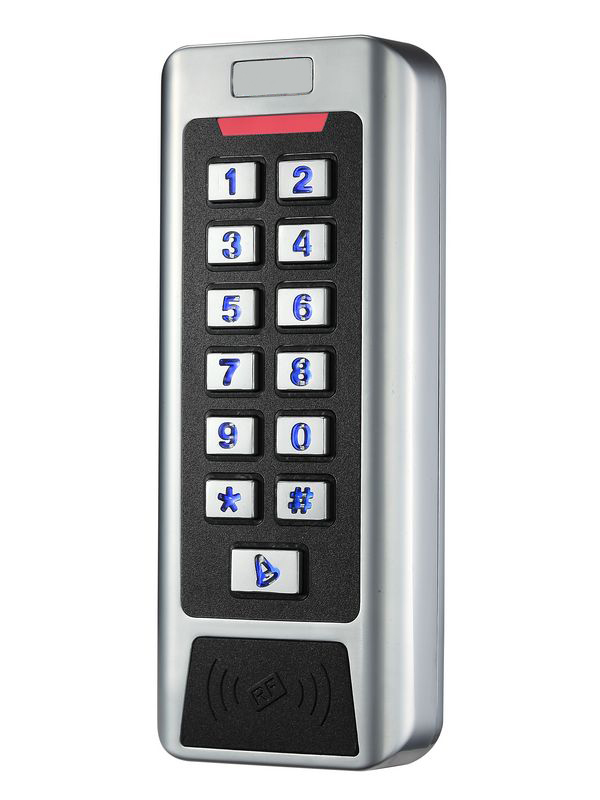

Product Description
Two relays, supports up to 2000 users in total for two zones
Have 7 working modes
1. Wiegand reader
2. Standalone for single door
1. Standalone for two doors
2. With external reader for two doors
3. Two units interlocked for two doors
4. Anti-pass back for single door
5. Anti-pass back for two doors.
Waterproof structure design, fit for IP68 waterproof degree
Digital backlight keypad, the backlight can be set to Normal ON,
Normal OFF, or Human-approach
Can add consecutive user cards quickly in one time
Model | Card Type | Waterproof Degree | Product Name |
CC1EM | EM Card 125Khz | IP68 | Dual Doors Waterproof EM Card Metal Access Control |
CC1MF | MF Card 13.56MHz | IP68 | Dual Doors Waterproof Mifare Card Metal Access Control |
CC1EH | EM+H Card 125Khz | IP68 | Two Doors Waterproof RFID EM+HID Metal Access Control |
CC1MC | Mifare Card 13.56MHz | IP68 | Two Relays Waterproof RFID Mifare+CPU Card Metal Access Control |
Technical parameters
Card type：EM.HID
Waterproof degree：IP68
Environment Humidity：10%～90%
Lock output：≤3A
Working voltage：DC12V±10％
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：5～8cm
Ambient temperature：-45℃～60℃
Door Opening Time: 0～99s(Adjustable)
Dimension：145 *58*22mm
Unit Weight:0.75kg
Box size:19*13*6(cm)
Carton box:56*40*41(cm)
